Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 150-220kg/h Or Customized | Pipe Diameters: | 20-110mm Or Customized |
| Suitable Materials: | HDPE PPR LDPE LLDPE | ||
| Highlight: | HDPE Pipe Extruder Machine 110mm,HDPE Plastic Pipe Extruder Machine,HDPE Pipe Extruder Machine 100mm |
||

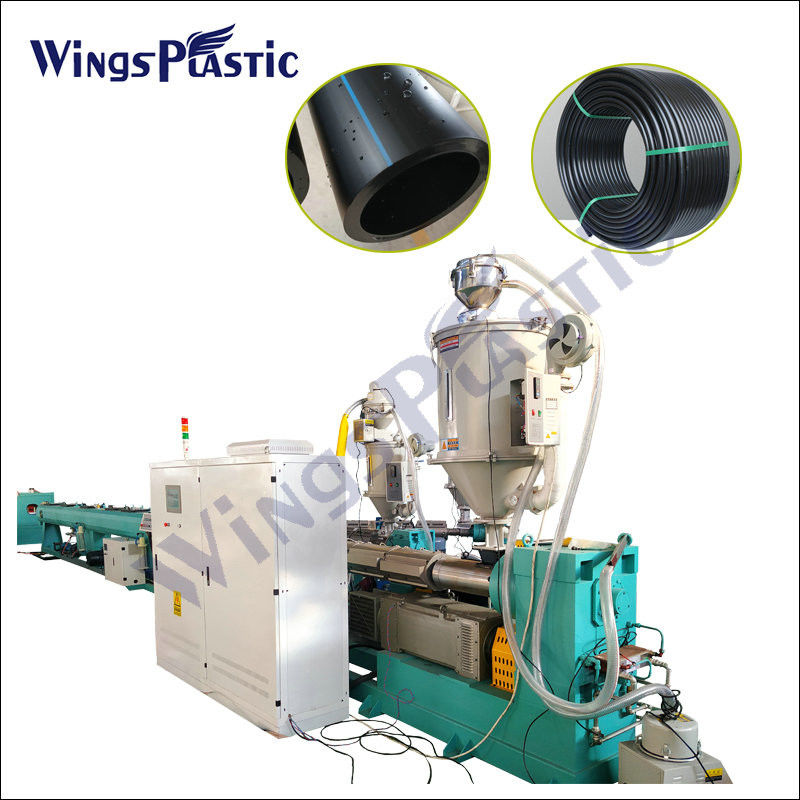

HDPE plastic pipe extruder machine / HDPE pipe production machine / PE pipe production line
It can also produce PP, PE, ABS, PPR, PEX, silicon core pipe and pipe material of other material. The planetary cutting machine is fully automatic computer digital control, it has such advantages of simple operation, reliable property, etc.
Description of PE Drainage Pipe Extrusion Line
This PE Drainage Pipe Extrusion Line can be used in PE Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on.
So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb.
HDPE pipes start to play very important role in the city water and gas supply systems.
Flow chart of the PE pipe line:

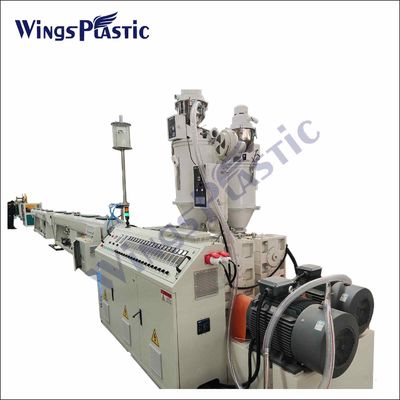

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder

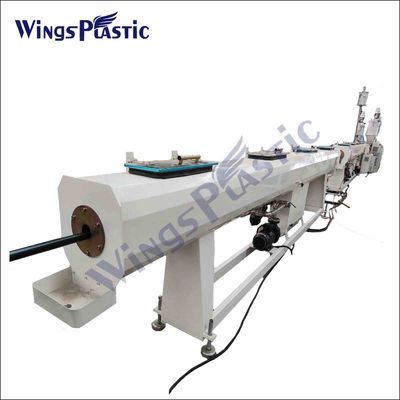

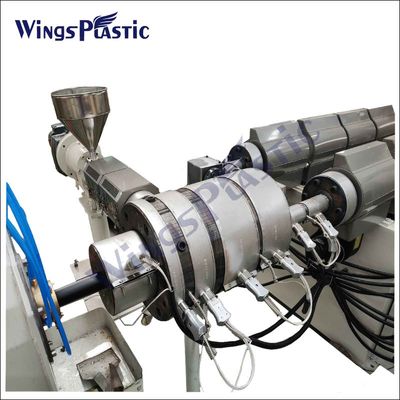

→ color code extruder → mould and calibrator → vacuum forming machine → cooling tank

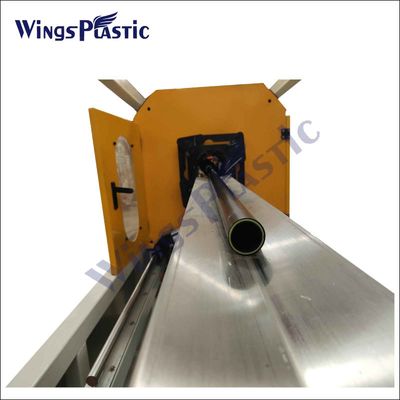

→ haul-off machine → cutting machine → discharging rack
| model | screw diameter | L/D | driving power | output |
| SJ-45/30 | 45 mm | 30:1 | 22/30kw | 60/80kg/h |
| SJ-65/33 | 65 mm | 33:1 | 45/75/90kw | 150/210/250kg/h |
| SJ-75/33 | 75 mm | 33:1 | 110/132kw | 350/450kg/h |
| SJ-90/33 | 90 mm | 33:1 | 185/220kw | 550/700kg/h |
| SJ-105/33 | 105 mm | 33:1 | 220/285kw | 650/800kg/h |
| SJ-120/33 | 120 mm | 33:1 | 315kw | 950kg/h |
| SJ-150/33 | 150 mm | 33:1 | 450kw | 1350kg/h |
