Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 80kg/h Or Customized | Pipe Diameters: | 30-70mm Or Customized |
| Suitable Materials: | EVA LLDPE Materials | Speed: | 1-5m/min |
| Screw: | Single Screw | HS Code: | 84772090 |
| Origin: | Qingdao China | After-sales Service: | 1 Year |
| High Light: | EVA Corrugated Pipe Extruder Machine LLDPE,Corrugated Pipe Extruder Machine LLDPE,Vacuum Cleaner PVC Pipe Production Line |
||

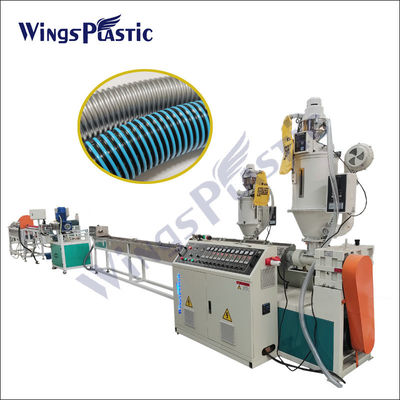

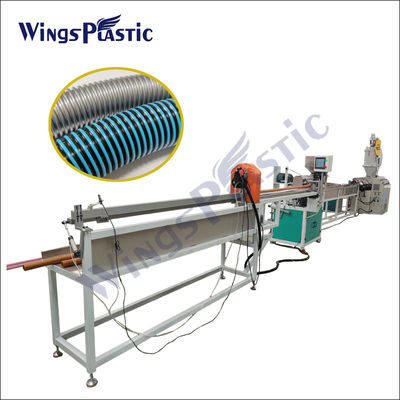

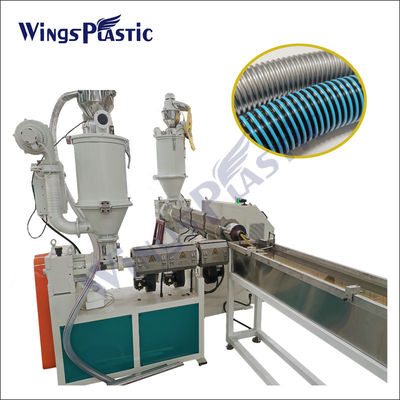

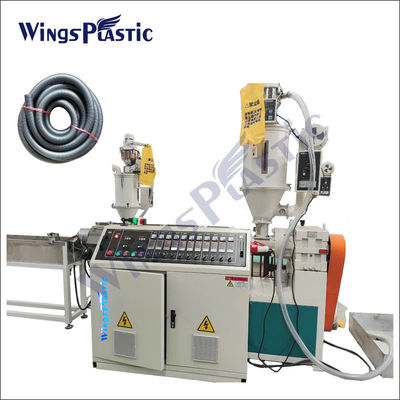

EVA Corrugated vacuum Cleaner Hose Pipe Production Line / Extruder Machine
We have the confidence to say that we are the best manufacturer for EVA corrugated vaccum cleaner hose machine. We lean the technology from Germany, same technology but 1/20 price of them.
We are the only one company which has nature technology for this machine in China.
EVA Corrugated cleaner pipe machine consist:

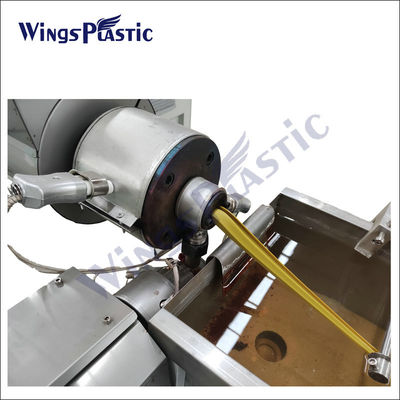

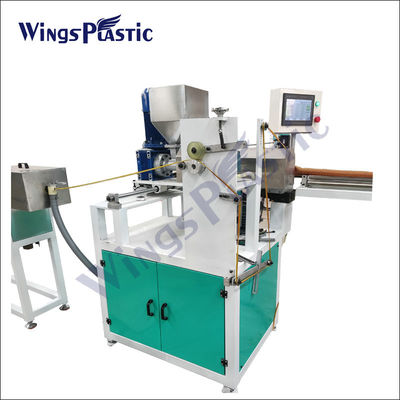

Two sets of single screw extruder with automatic feeder, die head ,mould ,cooling tank , drier , vaccum cleaner hose forming units , cutter and stacker.
This production line needs SWP 260 crusher and a mixer as the auxiliary machine.
Machinery introduction:
1.Suitable material : EVA + LLDPE + ADDITIVES, EVA glue granules
2.Apply for pipes inner diameter:28(ID)-75MM
3.Capicity: 50-100kg/h
4.Dimension of the line: 15m*3.5m*1.5m(L*W*H)
5.Weight of the line: 7 tons
6. Machine color: According to buyer's requirement.
7 Machine speed:3-6m/minute
8.PLC control system.
The eva vacuum cleaner hose extrusion line equipment list:
| Automatic feeding system | 1set |
| Single screw extruder for hose | 1set |
| Single screw extruder for glue | 1set |
| Die head for eva profile | 1set |
| Eva hose forming system | 1set |
| Water cooling tank | 1set |
| Cutter machine | 1set |
| Stacker | 1set |
| Crusher | 1set |
| Materials mixer | 1set |
| Electric control system | 1set |
