Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 40-80kg/h Or Customized | Pipe Diameters: | 10-50mm Or Customized |
| Suitable Materials: | HDPE LDPE EVA PVC PA | ||
| Highlight: | Plastic Corrugated Pipe Extruder Machine,Corrugated Pipe Extruder Machine PP 80kg/H,PA HDPE Extruder Machine 80kg/H |
||
Qingdao machinery , plastic machine for pe / pp corrugated pipe extruder machine
The forming of the corrugated pipe joint is very perfect, no break to ensure the strength of the pipe, not easy damaged, beautiful appearance, the machine can run non-stop for a long time.
corrugated pipe making machine
corrugated pipe production line
post - tension corrugated pipe making machine

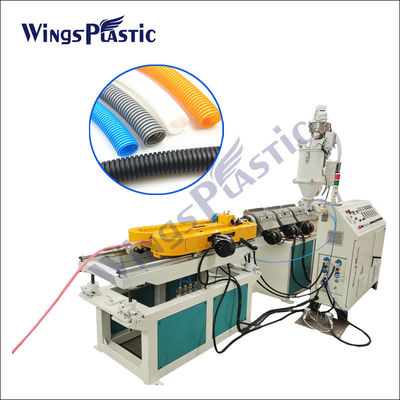

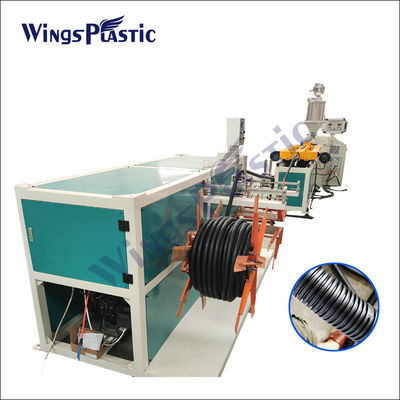

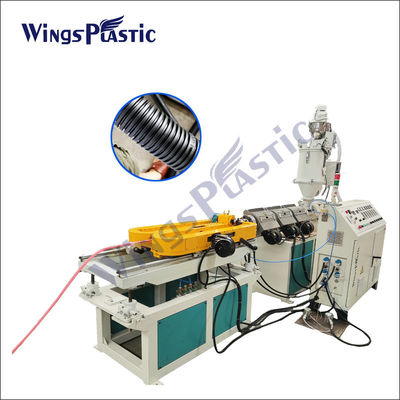

This line is used to produce different type of PP / PE single wall corrugated pipe ,the diameter of pipe can be produced
between 9mm-160mm.The whole line can be controlled automatically ,the parameters can be set on the touch screen.

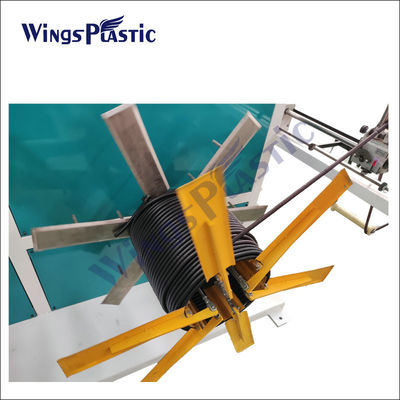

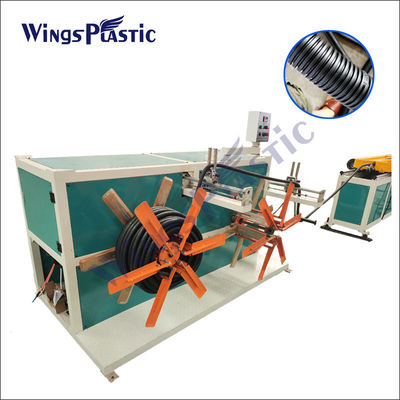

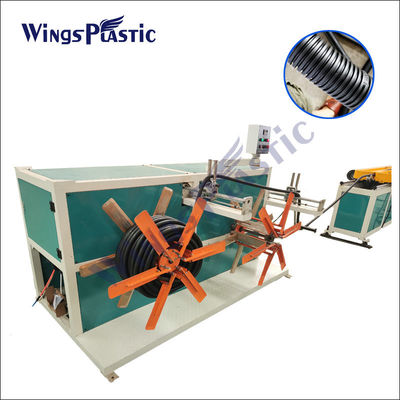

PE / PP single wall line is made up of some parts :feeder - dryer - extruder - mould - forming table - winder(cutter )
| Line Model | Extruder model | Production scope | Output | Total Power | Production speed |
| PE-40 | SJ-45/30 | Φ6-40mm | 60kg/h | 25KW | 6-10m/min |
| PE-63 | SJ-65/30 | Φ12-63mm | 80kg/h | 30KW | 6-10m/min |
| PA-40 | SJ-45/28 | Φ6-40mm | 60kg/h | 25KW | 6-10m/min |
| PVC-50 | SJ50/105 | Φ16-50mm | 100kg/h | 27KW | 6-10m/min |
