PE PP PVC Hose Production Line Electrical Conduit Pipe Making Machine 40-80kg/H

PE PP PVC Corrugated Electric Conduit Pipe Extruder Making Machine

Performance and advantages: PVC single wall corrugated pipe production line use special screw, mold structure design is reasonable, convenient and reliable mould replacement, solved the difficulty of the screw barrel and material forming, line speed, stable running, easy operation control cylinder nimble.

Material: PP PVC PE PA granule

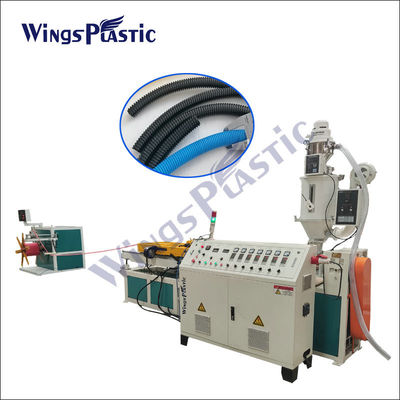

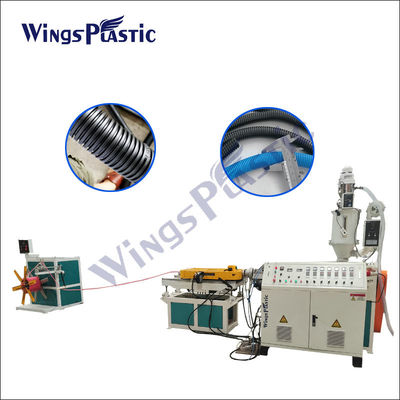

Configurations of Extrusion Line:

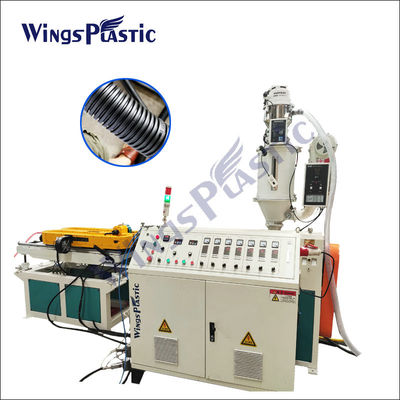

1. Single screw extruder: FSJ-65×30 or 65/28

Screw diameter: 65mm

L/D: 30 or 28

Motor: AC 37kw

Max. Rotate speed: 90rpm

Heater: Ceramic heater

Heating power: 22kW 4zones

Blower Motor : 180w , 4zones , High efficient and lower noise blower.

Max.output: 65kg/h (14m/min for 20mm single wall corrugated pipe,10m/min for 50mm)

b) Other parts

Automatic loader, square stainless hopper, stainless hopper on the extruder .

2. Die head Quantity:1 set

Material :40Cr , the surface of die is chromeplated, anti-corrosive

Specifications: Ø10-50mm. Heating power: 3kw

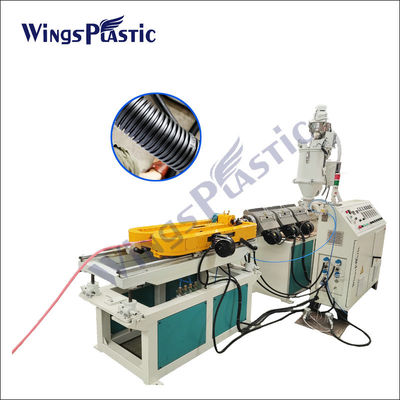

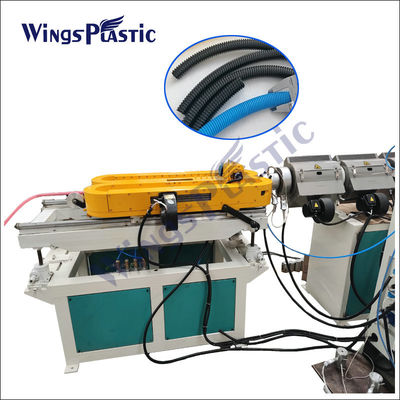

3. Forming Unit Quantity:1 set

a) Material of mould block: 40 Cr

b) Forming mould block: Ø10-50mm ,Mould Quantity: 1 set.

c) Motor power: 4 kW

d) Forming speed :1-20m/min

e) Cooling metod: water cooling

f) The transmission way: Gear drive,new technology,normally 12-14m/min extrusion speed.

g) Be installed with high efficient cooling system

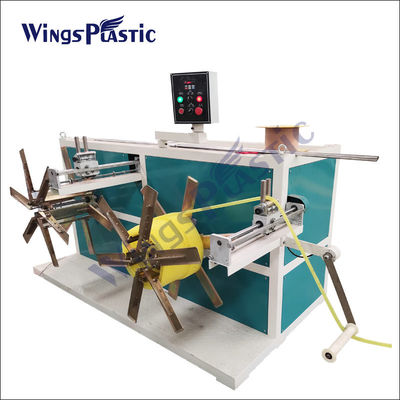

4. Double wheel coiler Quantity: 1 set

a) No. of wheel: two

b) Speed : 1-20/min

c) Motor : 5N.M moment motor

5. Digital controller

a) Temperature controller: OMRON

b) Other electrical equipment: Siemens/Delta

Ⅲ. Conditions For Production

1. Total installed power: 65kw, 380V three phases+N+G, 50HZ (According customer’s demand)

Load factor: 55%-80%

2. Cooling circulars water: 1m3/h

3. Compress air:0. 3m3/min

4. Measurement: 8000×1200×2000mm(length, width and high of line)
