Propene Polymer Corrugated Pipe Extruder Machine HDPE LDPE Flexible Pipe Machine

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 40-80kg/h Or Customized Pipe Diameters: 10-50mm Or Customized
Suitable Materials: HDPE LDPE EVA PVC PA
High Light:

Propene Polymer Corrugated Pipe Extruder Machine

,

Corrugated Pipe Extruder Machine HDPE LDPE

,

HDPE LDPE Flexible Pipe Machine

Propene Polymer PP Materials Corrugated Flexible Pipe Extruder Machine Manufactuerer

Single wall corrugated pipe production line mainly including the extruder, corrugated pipe forming machine, module, cooling device, counter, coiler, forming a variety of specifications diameter single-walled bellows.

This machine is also suitable for PVC , PE , PA and other plastic granule materials, but you need to change the screw.

Plastic single-wall corrugated pipes produced have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc. This pipe has large market.

We focus on corrugated pipe machine with over 20 years experience, new disign with higher speed, true water circulating cooling system,better pipe surface treatment. Our customers are Chinese bullet train corrugated pipe supplier, it needs high quality.

Configurations of Extrusion Line:

1. Single screw extruder

2. Die head

3. Forming Unit with circulating water cooling and air cooling system.

4. Double wheel coiler

5. Digital controller

a) Temperature controller: OMRON

b) Other electrical equipment: Siemens/Delta





Machinery Type Pipe Diameter OD Moulds Quantity Forming Speed
WS-16/54 7mm-16mm 54 Pairs 15m/min
WS-38/44 12mm-38mm 44 Pairs 15m/min
WS-38/72 12mm-38mm 72 Pairs 20m/min
WS-38/81 12mm-38mm 81 Pairs 30m/min
WS-52/60 16mm-52mm 60 Pairs 20m/min
WS-75/60 30mm-75mm 60 Pairs 15m/min
WS-110/60 50mm-110mm 60 Pairs 10m/min

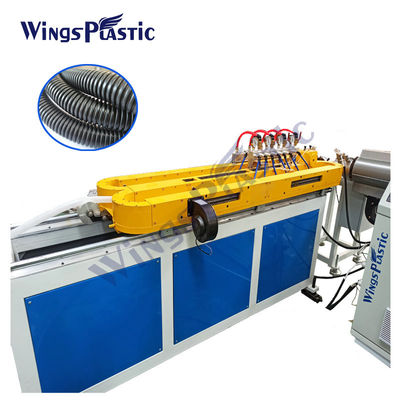

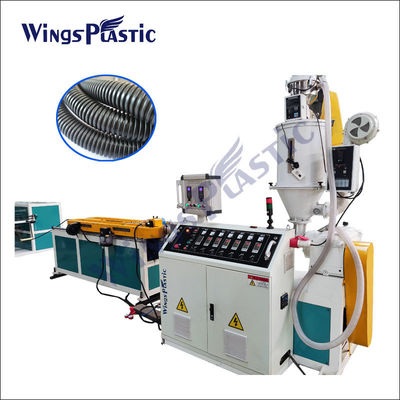

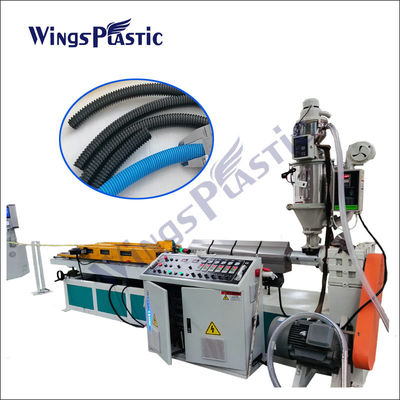

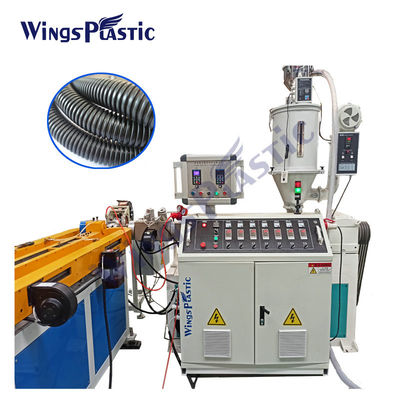

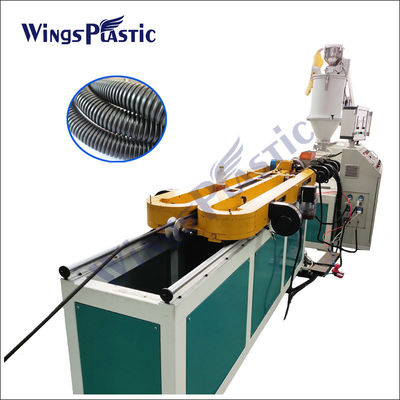

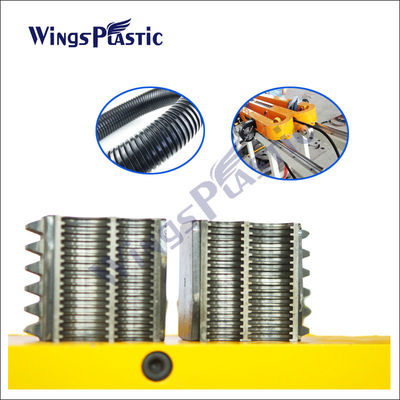

Corrugated Flexible Pipe Machine Pictures in our factory testing.

Propene Polymer Corrugated Pipe Extruder Machine HDPE LDPE Flexible Pipe Machine 0
