Plastic Single Wall Corrugated Pipe Extrusion Machine Flexible Pipe Production Line 80kg/H

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

Plastic Single Wall Corrugated Pipe Extrusion Machine Flexible Pipe Production Line 80kg/H

Plastic Single Wall Corrugated Pipe Extrusion Machine Flexible Pipe Production Line 80kg/H
Plastic Single Wall Corrugated Pipe Extrusion Machine Flexible Pipe Production Line 80kg/H
Plastic Single Wall Corrugated Pipe Extrusion Machine Flexible Pipe Production Line 80kg/H Plastic Single Wall Corrugated Pipe Extrusion Machine Flexible Pipe Production Line 80kg/H Plastic Single Wall Corrugated Pipe Extrusion Machine Flexible Pipe Production Line 80kg/H Plastic Single Wall Corrugated Pipe Extrusion Machine Flexible Pipe Production Line 80kg/H Plastic Single Wall Corrugated Pipe Extrusion Machine Flexible Pipe Production Line 80kg/H Plastic Single Wall Corrugated Pipe Extrusion Machine Flexible Pipe Production Line 80kg/H Plastic Single Wall Corrugated Pipe Extrusion Machine Flexible Pipe Production Line 80kg/H

Large Image :  Plastic Single Wall Corrugated Pipe Extrusion Machine Flexible Pipe Production Line 80kg/H

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ45/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

Plastic Single Wall Corrugated Pipe Extrusion Machine Flexible Pipe Production Line 80kg/H

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 40-80kg/h Or Customized Pipe Diameters: 10-50mm Or Customized
Suitable Materials: HDPE LDPE EVA PVC PA
High Light:

Single Wall Corrugated Pipe Extrusion Machine 80kg/H

,

EVA Single Wall Corrugated Pipe Extrusion Machine

,

Flexible Pipe Production Line 80kg/H

Plastic Single Wall Corrugated Flexible Hose Production Line / Pipe Extruder Machine

Application:

This production line produce PE PA PP PVC single wall corrugated flexible hose what is of many functions such as anti-high temperature, corrosion-proof, wearable, high strength. It is used very popularly for electrical cable protection, automobile, machinery,etc



Features:

Equipped with high speed corruagators, can produce dual pipe with one moulds block, reduce the block cost and moulds block changing time, increase the efficiency.



Production flow:

Main extruder-----Extrusion die-------calibration unit-------automatic winding or cutting unit





Machinery Type Pipe Diameter OD Moulds Quantity Forming Speed
WS-16/54 7mm-16mm 54 Pairs 15m/min
WS-38/44 12mm-38mm 44 Pairs 15m/min
WS-38/72 12mm-38mm 72 Pairs 20m/min
WS-38/81 12mm-38mm 81 Pairs 30m/min
WS-52/60 16mm-52mm 60 Pairs 20m/min
WS-75/60 30mm-75mm 60 Pairs 15m/min
WS-110/60 50mm-110mm 60 Pairs 10m/min

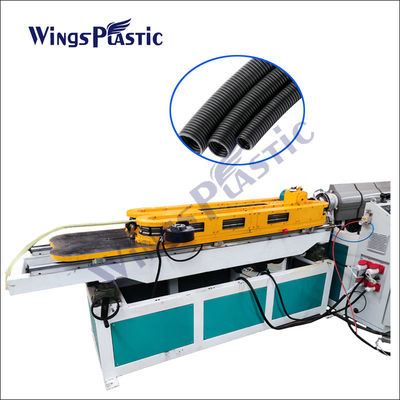

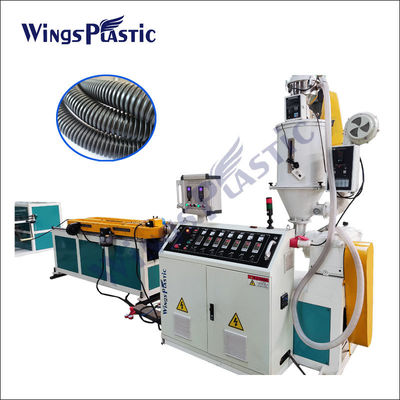

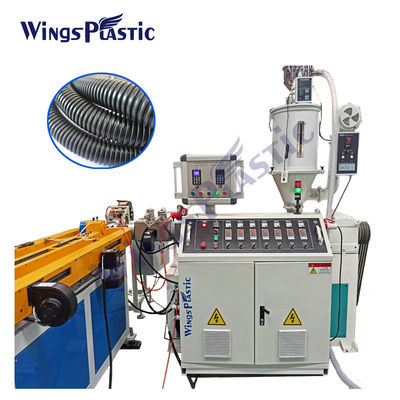

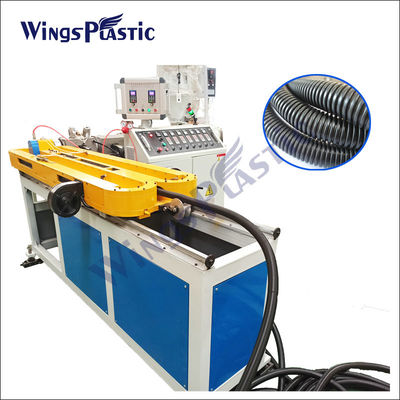

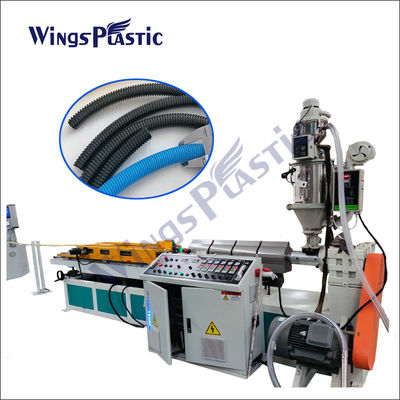

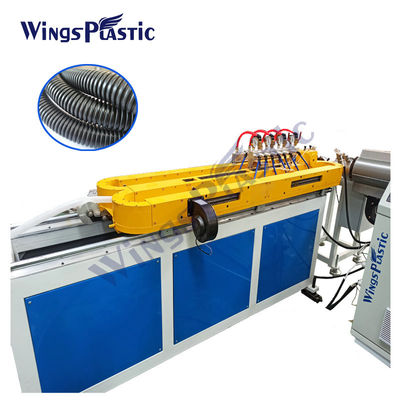

Plastic Single Wall Corrugated Flexible Hose Production Line / Extrusion Machinery Pictures:

Plastic Single Wall Corrugated Pipe Extrusion Machine Flexible Pipe Production Line 80kg/H 0
