HDPE Spiral Duct Tube Extrusion Line PE Pvc Corrugated Pipe Maker Machine

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

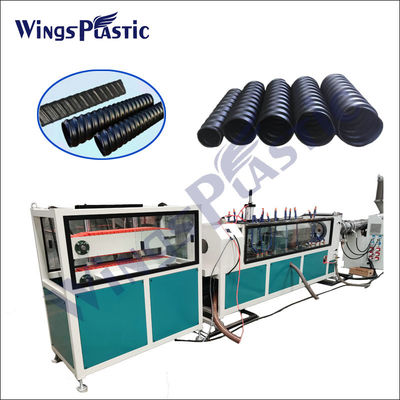

HDPE Spiral Duct Tube Extrusion Line PE Pvc Corrugated Pipe Maker Machine

HDPE Spiral Duct Tube Extrusion Line PE Pvc Corrugated Pipe Maker Machine
HDPE Spiral Duct Tube Extrusion Line PE Pvc Corrugated Pipe Maker Machine
HDPE Spiral Duct Tube Extrusion Line PE Pvc Corrugated Pipe Maker Machine HDPE Spiral Duct Tube Extrusion Line PE Pvc Corrugated Pipe Maker Machine HDPE Spiral Duct Tube Extrusion Line PE Pvc Corrugated Pipe Maker Machine HDPE Spiral Duct Tube Extrusion Line PE Pvc Corrugated Pipe Maker Machine HDPE Spiral Duct Tube Extrusion Line PE Pvc Corrugated Pipe Maker Machine HDPE Spiral Duct Tube Extrusion Line PE Pvc Corrugated Pipe Maker Machine HDPE Spiral Duct Tube Extrusion Line PE Pvc Corrugated Pipe Maker Machine

Large Image :  HDPE Spiral Duct Tube Extrusion Line PE Pvc Corrugated Pipe Maker Machine

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ70/32
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

HDPE Spiral Duct Tube Extrusion Line PE Pvc Corrugated Pipe Maker Machine

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 80-120kg/h Or Customized Pipe Diameters: 40-150mm Or Customized
Suitable Materials: HDPE LDPE LLDPE Materials
High Light:

Carbon Spiral Duct Tube Extrusion Line

,

Tube Extrusion Line LLDPE

,

LLDPE Pvc Pipe Maker Machine

New style PE carbon spiral duct tube extrusion line / corrugated pipe extruder machine

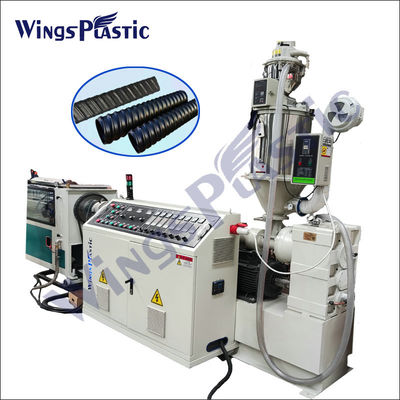

1. Dedicated single-screw extruder is especially used for producing polyolefin products, and the specialized separating type mix-melting screw possesses features of high-speed extrusion and plasticization, etc.

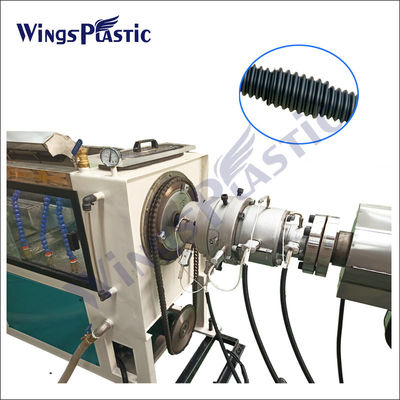

2. The pipe die head is designed in standard, and the reasonable flowing path ensures smoothness of the inside and outside walls of the pipe. The way of assembling the die head is designed according to the client’s requirement, which saves much room.

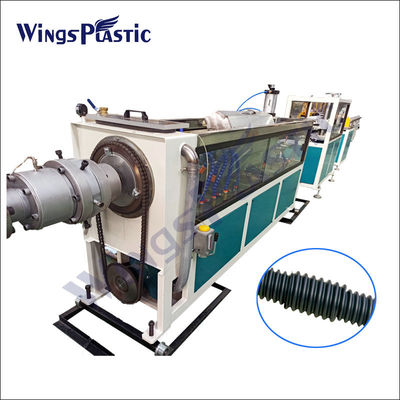

3. Both scientifically designed copper spiral sizing sheath and the powerful inhaling vacuum device contribute to high extrusion of the pipes.

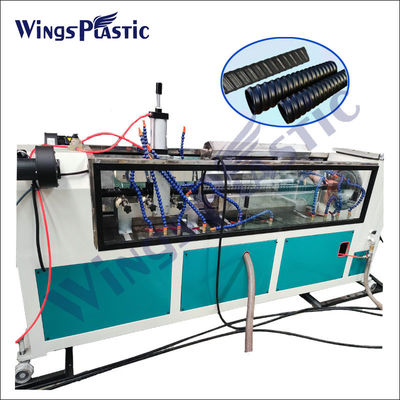

4. The tank is made of stainless steel, and automatic controller is used to control the liquid level. The peculiar spraying nozzle brings about effective cooling and the motor ensures longitudinal movement and three-dimensional adjustment in terms of the directions of upward, downward, left and right.
5. The special sizing and cooling mode enable the production line to produce pipes whose diameter range is from 25mm to 200mm, at a speed of 0.8to 1.5 meters per minute.

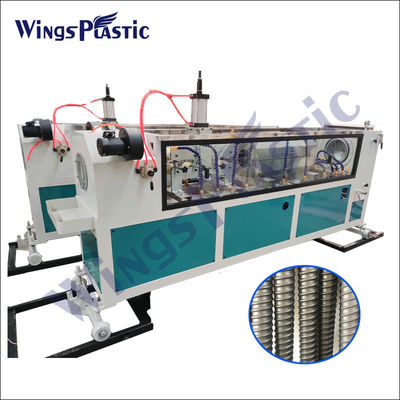

6.Stainless steel cooling water trough is three-dimensional regulation,longitudinal moved by motor.

7.High efficient cooling comes from peculiar spraying nozzle and high efficiency water pump.

Components

1. Automatic Feeder 2. Hopper Dryer 3. Single-screw extruder 4. Mould 5. Vacuum Calibration Tank 6. Spray Box 7. Haul-off Machine 8. Cutting 9. Stacker













HDPE Spiral Duct Tube Extrusion Line PE Pvc Corrugated Pipe Maker Machine 0

The Main Parameters of the machine:

Model SJ-65B SJ-90B
L/D 30:1 30:1
Pipe Diameter(mm) 50-100 50-200
Output(kg/h) 20-60 50-100
Production speed (m/min) 0.8-1.5 0.8-1.5
Power (kw) 32.7 50.2


HDPE Spiral Duct Tube Extrusion Line PE Pvc Corrugated Pipe Maker Machine 1
