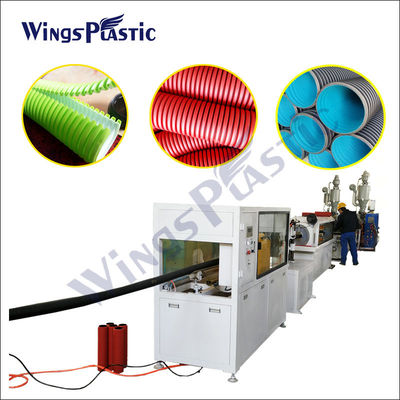

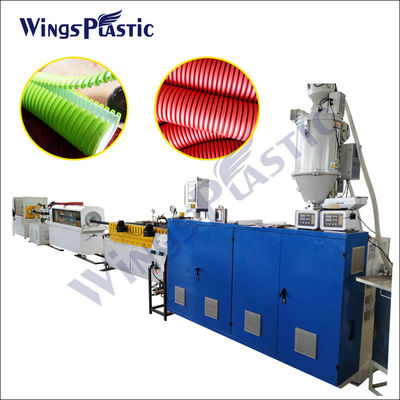

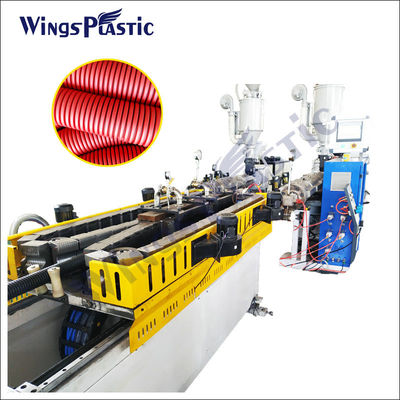

HDPE Corrugated Pipe Extruder Machine DWC Double Wall Corrugated Pipe Production Line

HDPE Corrugated Pipe Extruder Machine DWC Double Wall Corrugated Pipe Production Line
HDPE Corrugated Pipe Extruder Machine DWC Double Wall Corrugated Pipe Production Line
HDPE Corrugated Pipe Extruder Machine DWC Double Wall Corrugated Pipe Production Line HDPE Corrugated Pipe Extruder Machine DWC Double Wall Corrugated Pipe Production Line HDPE Corrugated Pipe Extruder Machine DWC Double Wall Corrugated Pipe Production Line HDPE Corrugated Pipe Extruder Machine DWC Double Wall Corrugated Pipe Production Line HDPE Corrugated Pipe Extruder Machine DWC Double Wall Corrugated Pipe Production Line HDPE Corrugated Pipe Extruder Machine DWC Double Wall Corrugated Pipe Production Line HDPE Corrugated Pipe Extruder Machine DWC Double Wall Corrugated Pipe Production Line

Large Image :  HDPE Corrugated Pipe Extruder Machine DWC Double Wall Corrugated Pipe Production Line

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

HDPE Corrugated Pipe Extruder Machine DWC Double Wall Corrugated Pipe Production Line

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 180kg/h Or Customized Pipe Diameters: 40-110mm Or Customized
Suitable Materials: EVA LLDPE Materials Speed: 1-5m/min
Screw: Single Screw HS Code: 84772090
Origin: Qingdao China After-sales Service: 1 Year
High Light:

HDPE Corrugated Pipe Extruder Machine

,

Corrugated Pipe Extruder Machine DWC

,

DWC Double Wall Corrugated Pipe Production Line

HDPE DWC Double Wall Corrugated Pipe Production Line Extruder Machine



Double-wall corrugated pipe production line adopts the direct extrusion molding process, high efficiency production , reliable quality. Due to its excellent wall structure design, the pipe have lightest weight , and the pipe cost greatly reduced, a large number alternatives of traditional concrete pipe and cast iron pipe.



Qingdao Wings Plastic Technology Co., LTD., specializing in the production of HDPE double-wall corrugated pipe production line, PVC double-wall corrugated pipe production line.

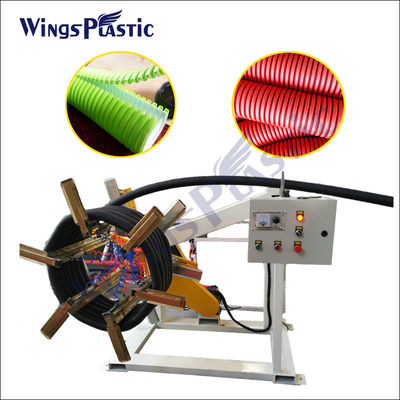

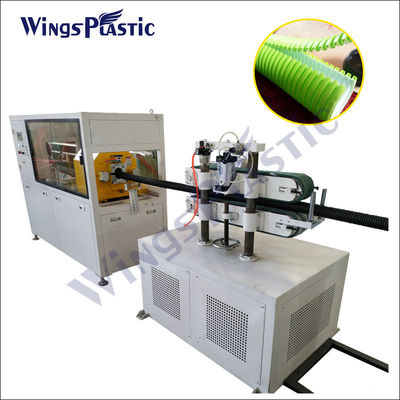

Equipment operation is stable, automatic production, saving labor, efficient extrusion. The finished pipe could be automatic cutted or automatic winded according customer request.



40-160mm PVC PE Double Wall Corrugated Pipe Machinery Basic Informations:



Name Motor Materials Pipe Diameter Output Moulds Working Length Scre Speed
SJ65/50 30kw and 15kw PE 40-110mm 120kg/h 4000mm 74RPM
SJ75/55 37kw and 18.5kw PE 75-160mm 150kg/h 4000mm 74RPM
SJZ65/132 37kw PVC 40-110mm 250kg/h 4000mm 35RPM



HDPE Corrugated Pipe Extruder Machine DWC Double Wall Corrugated Pipe Production Line 0
