40mm -110mm Corrugated Pipe Extruder Machine HDPE DWC Pipe Machine

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

40mm -110mm Corrugated Pipe Extruder Machine HDPE DWC Pipe Machine

40mm -110mm Corrugated Pipe Extruder Machine HDPE DWC Pipe Machine
40mm -110mm Corrugated Pipe Extruder Machine HDPE DWC Pipe Machine
40mm -110mm Corrugated Pipe Extruder Machine HDPE DWC Pipe Machine 40mm -110mm Corrugated Pipe Extruder Machine HDPE DWC Pipe Machine 40mm -110mm Corrugated Pipe Extruder Machine HDPE DWC Pipe Machine 40mm -110mm Corrugated Pipe Extruder Machine HDPE DWC Pipe Machine 40mm -110mm Corrugated Pipe Extruder Machine HDPE DWC Pipe Machine 40mm -110mm Corrugated Pipe Extruder Machine HDPE DWC Pipe Machine 40mm -110mm Corrugated Pipe Extruder Machine HDPE DWC Pipe Machine

Large Image :  40mm -110mm Corrugated Pipe Extruder Machine HDPE DWC Pipe Machine

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

40mm -110mm Corrugated Pipe Extruder Machine HDPE DWC Pipe Machine

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 180kg/h Or Customized Pipe Diameters: 40-110mm Or Customized
Suitable Materials: EVA LLDPE Materials Speed: 1-5m/min
Screw: Single Screw HS Code: 84772090
Origin: Qingdao China After-sales Service: 1 Year
High Light:

110mm Corrugated Pipe Extruder Machine

,

40mm Corrugated Pipe Extruder Machine

,

HDPE DWC Pipe Machine

China HDPE DWC Corrugated Pipe Extruder Machine Factory

Qingdao Wings Plastic Technology Co.,Ltd is one of the professional manufacturer for DWC pipe machine. The technology is from Dalian Sunlight, our engineer work there over 10 years.

We could offer you the same technology DWC pipe machine with much cheaper price.

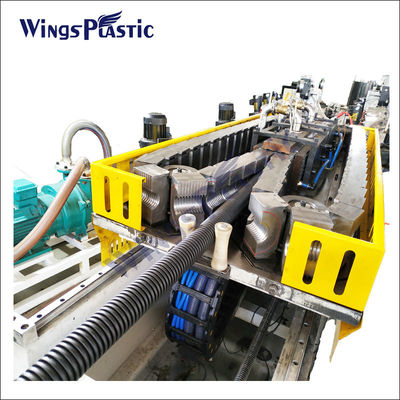

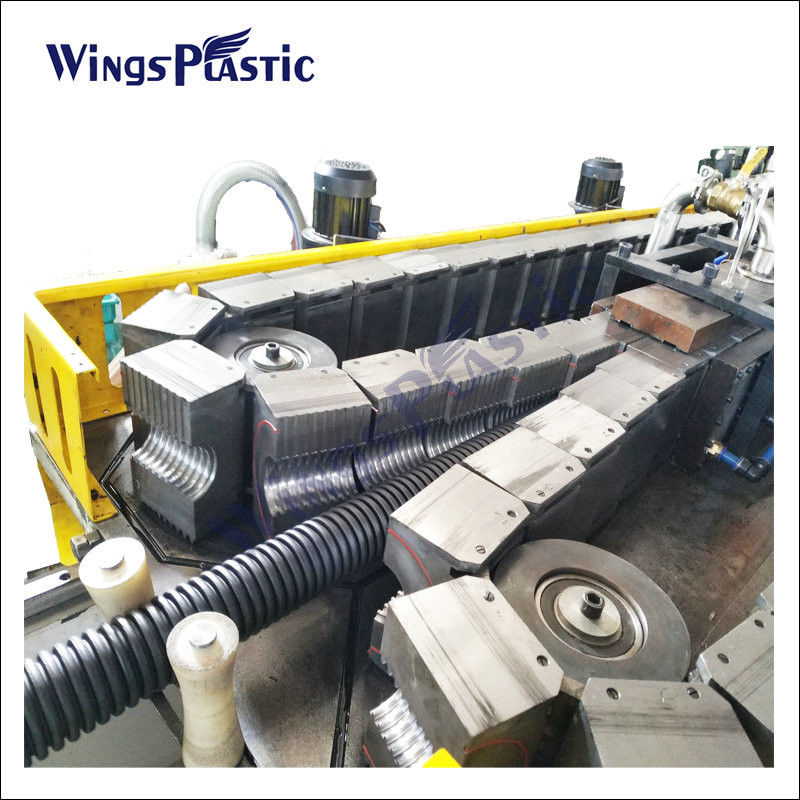

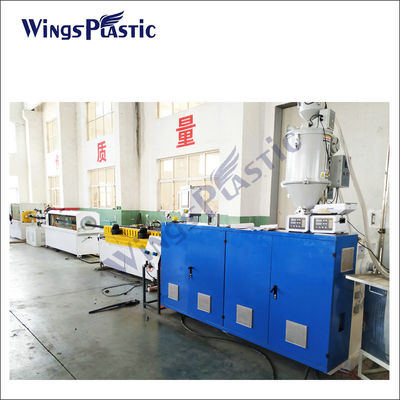

DWC pipe is mainly used for water drainage system. It is a fully computer controlled line. It features high and stable output capacity, and highly automatic operation. For HDPE, you can choose high efficient single screw extruder. For PVC, you can choose conical twin-screw extruder or parallel twin- screw extruder. Forming system consists mould and corrugator. Mould blocks can be easily changed and they have air or water cooling system. The belling process is on line. High precision cutting can be guaranteed by cutting machine. The production line can also be equipped with SIEMENS PLC system.



HDPE DWC Pipe Extrusion Machinery Informations:


Equipment List Quantity
Automatic feeding system 1 set
Single Screw Extruder 2 sets
Die head 1 set

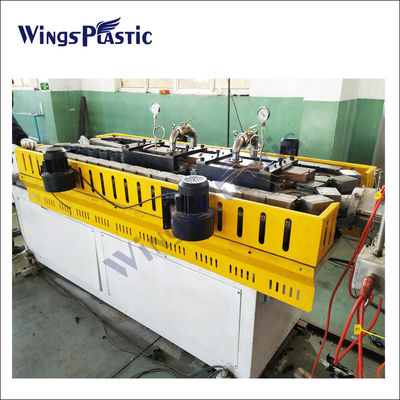

Corrugator machine 1 set
Forming blocks 1 set
Hual-off 1 set
Cutter 1 set
Stacker 1 set
