Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 180kg/h Or Customized | Pipe Diameters: | 40-110mm Or Customized |
| Suitable Materials: | EVA LLDPE Materials | Speed: | 1-5m/min |
| Screw: | Single Screw | HS Code: | 84772090 |
| Origin: | Qingdao China | After-sales Service: | 1 Year |
| High Light: | EVA Corrugated Tube Extrusion Line,Corrugated Tube Extrusion Line HDPE,HDPE Double Wall Corrugated Pipe Machine |
||
Professional HDPE Double Wall Corrugated Pipe Extruder Making Machine
HDPE corrugated pipe is mainly used for water drainage system. It is a fully computer controlled line. It features high and stable output capacity, and highly automatic operation. For HDPE, you can choose high efficient single screw extruder. For PVC, you can choose conical twin-screw extruder. Forming system consists mould and corrugator. Mould blocks can be easily changed and they have water cooling system. The belling process is on line. High precision cutting can be guaranteed by cutting machine. The production line can also be equipped with SIEMENS PLC system.

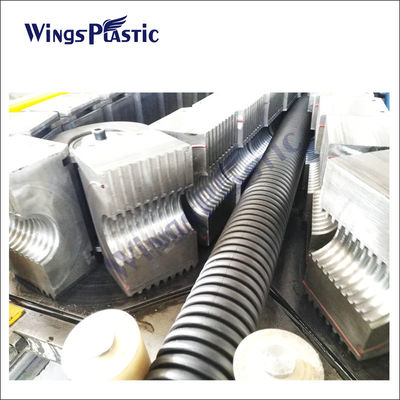

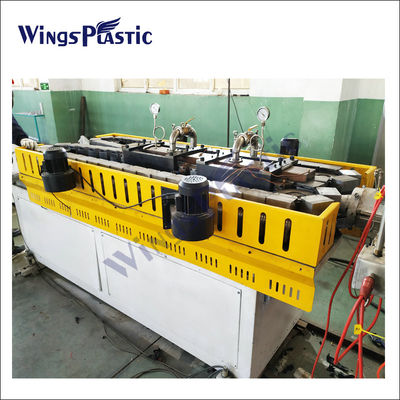

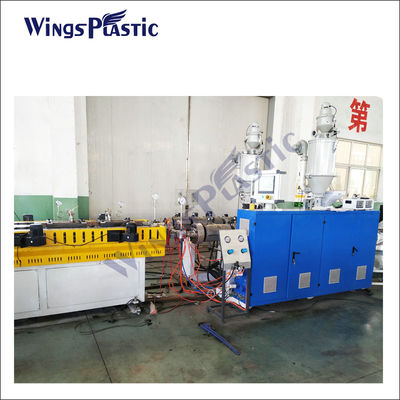

Our HDPE Double Wall Corrugated Pipe Making Machine / Production Line Pictures:

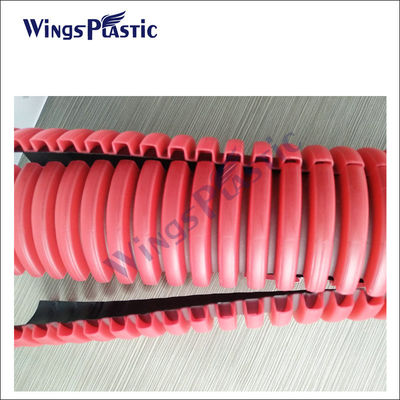

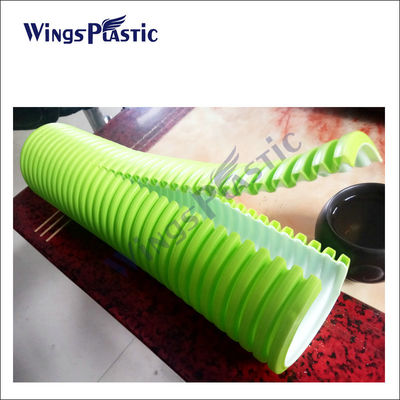

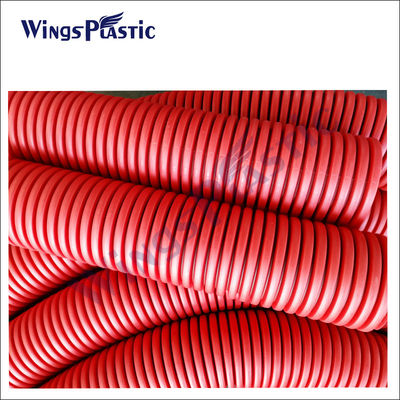

This is DWC pipe which is tested for our customer in our factory.
| Name | Model |
Dimension
(L×W×H)mm
|
Total Power(kw) |
Weight
(kg)
|
|
Extruder
(Co-extrusion)
|
SJ75×30
SJ55×30
|
3400×560×3000
2575×460×2600
|
55(max)
22(max)
|
4500
2000
|
|
Extruder
( Single-extrusion)
|
SJ90×30 | 3400×560×3000 | 110(max) | 4500 |
|
Mould Blocks
(ID)
|
PE50 | 2000×Φ300 | 16(max) | 100 |
| PE63 | 150 | |||
| PE75 | 160 | |||
| PE90 | 180 | |||
| PE110 | 300 | |||
| PE125 | 2000×Φ326 | 350 | ||
| PE145 | 400 | |||
| PE160 | 420 | |||
| PE200 | 450 | |||
| Corrugator | SBCJ200 | 3940×1720×2070 | 4(max) | 5000 |
| Cutter | QG200 | 2715×1000×1720 | 2.2 | 800 |
| Unloading Bracket | JGJ200 | 5000×800×1000 | 150 |
