Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 250kg/h Or Customized | Band Width: | 6-20mm Or Customized |
| Suitable Materials: | Pet Materials | Speed: | 1-5m/min |
| Screw: | Single Screw | HS Code: | 84772090 |
| Origin: | Qingdao China | After-sales Service: | 1 Year |
| High Light: | Bottle Flake PET Band Extrusion Machine,20mm PET Strapping Band Extrusion Line,PET Strapping Band Extrusion Line 6mm |
||

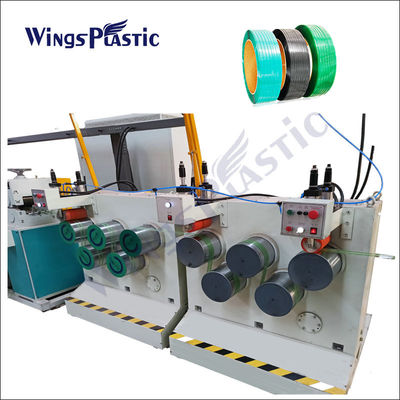

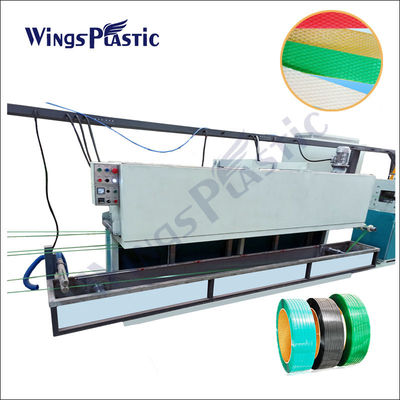

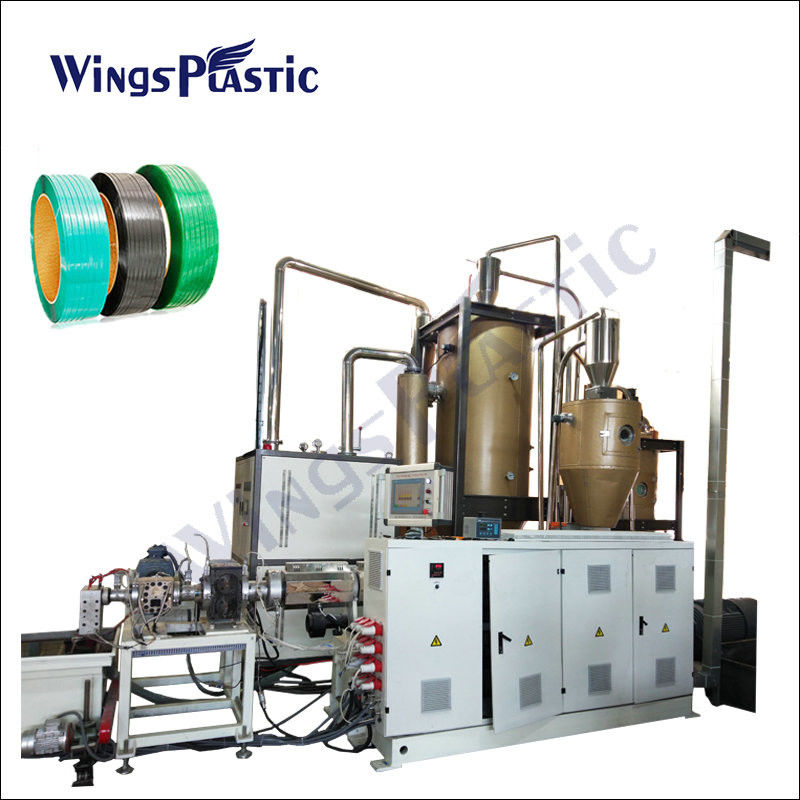

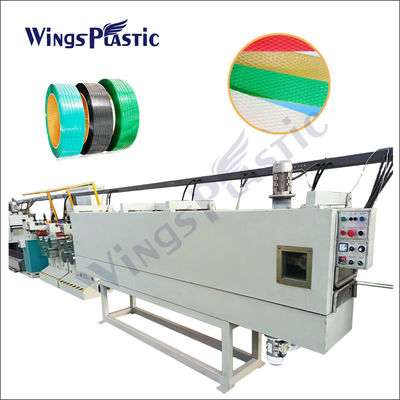

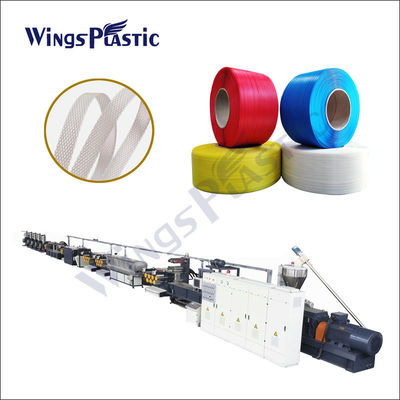

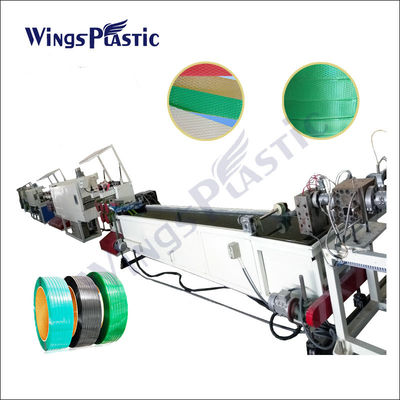

Plastic Packing Belt Making Machine PET Band Extusion Machine
PET strap is wide use of plastic packaging with environmental protection. PET is the main raw material by extrusion one-way stretch forming a polyester packing belt, PET packing belt is the most popular international alternative steel, steel, heavy PP packaging with a new type of environmentally friendly packaging materials. It has been widely used in wood, paper, steel, aluminum ingot, steel pipe, profiles, glass, building materials, ceramics, electrical appliances and metal products , Tobacco, chemical fiber, cotton and other industries. Transparent appearance (opaque after adding auxiliaries), the surface is smooth or prismatic pattern. Our PET straps extrusion machine with 100% bottle flakes recycled material, to produce various specifications of PET strap.
Qingdao Wings Plastic Technology Co.,Ltd is the professional manufacturer of PET PP strap extrusion line. We could meet high quality strap production and high capacity request from customers.
Production Flow:
Materials feeding -- Pre-crystallization -- Drying -- Feeding -- Extruder melt -- Filter -- Melt metering pumb -- Extrusion die -- Hot water tank --Five Pulling rollers -- Stretching Oven -- Stretching rollers -- Embossing --Annealing treatment oven and water tank -- Three Pulling Rollers -- Winders -- Packing
| Name | Strap Cavities | Motor | Screw Diameter | Screw L:D | Output | Screw Speed |
| SJ90/33 | 1-2 Cavities | 75kw | 90mm | 33:1 | 150-250kg/h | 72RPM |
| SJ100/33 | 1-3 Cavities | 90kw | 100mm | 33:1 | 250-300kg/h | 72RPM |
| SJ120/33 | 2-4 Cavities | 110kw | 120mm | 33:1 | 300-400kg/h | 72RPM |
