50-160mm PVC Pipe Extruder Machine Water Pipe Making Machine Extruder

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

50-160mm PVC Pipe Extruder Machine Water Pipe Making Machine Extruder

50-160mm PVC Pipe Extruder Machine Water Pipe Making Machine Extruder
50-160mm PVC Pipe Extruder Machine Water Pipe Making Machine Extruder
50-160mm PVC Pipe Extruder Machine Water Pipe Making Machine Extruder 50-160mm PVC Pipe Extruder Machine Water Pipe Making Machine Extruder 50-160mm PVC Pipe Extruder Machine Water Pipe Making Machine Extruder 50-160mm PVC Pipe Extruder Machine Water Pipe Making Machine Extruder 50-160mm PVC Pipe Extruder Machine Water Pipe Making Machine Extruder 50-160mm PVC Pipe Extruder Machine Water Pipe Making Machine Extruder 50-160mm PVC Pipe Extruder Machine Water Pipe Making Machine Extruder

Large Image :  50-160mm PVC Pipe Extruder Machine Water Pipe Making Machine Extruder

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ65/132
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

50-160mm PVC Pipe Extruder Machine Water Pipe Making Machine Extruder

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 250kg/h Or Customized Pipe Diameter: 50-160mm
Suitable Materials: PVC Powder Speed: 1-5m/min
Screw: Twin Screw HS Code: 84772090
Origin: Qingdao China After-sales Service: 1 Year
High Light:

160mm PVC Pipe Extruder Machine

,

50mm PVC Pipe Extruder Machine

,

250kg/h Water Pipe Making Machine Extruder

PVC water pipe making machine / extruder machine / production line

Complete extruder and extrusion lines for production of PVC pipes in diameter from 16 to 630mm.We also design and manufacture machines for production of CPVC pipe and PVC foam core pipe.



Application:
To produce variety of PVC pipe for water supply, drainage, cable protection ,etc

Feature:

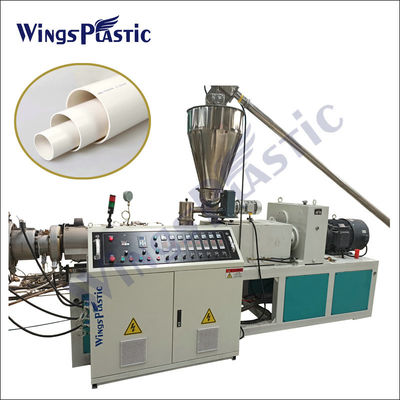

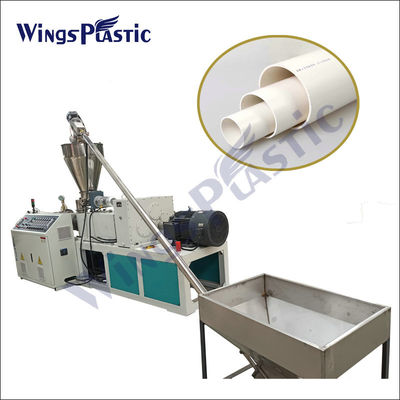

1,SJSZ Conical twin screw extruder: using the high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

2,Mould: spiral type die head can not only ensure high speed extrusion, but also avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

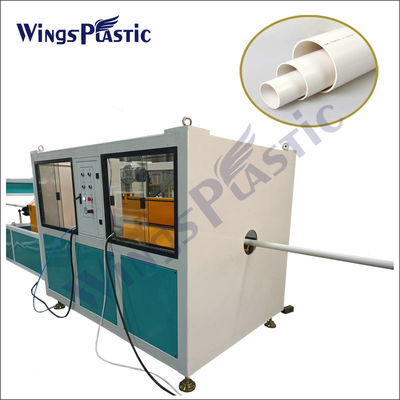

3,Spraying and cooling tanks: Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

4,Haul off machine: adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

5,Cutting machine:precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

6,Pipe belling machine: automatic pipe belling machine comes with 2 heating ovens to ensure pipe belling quality and productivity.



50-160mm PVC Pipe Extruder Machine Water Pipe Making Machine Extruder 0

Machinery Basic Informations:





Pipe Range 16-63mm 20-110mm 75-160mm 160-315mm 315-630mm
Extruder SJZ51/105 SJZ55/110 SJZ65/132 SJZ80/156 SJZ92/188
Motor(KW) 22KW 30KW 37KW 55KW 110KW
Capacity(KG/H) 80-120 150-180 200-350 360-450 400-600
Lineal speed(M/min) 1-10 1-10 0.3-6 0.2-2 0.1-1

50-160mm PVC Pipe Extruder Machine Water Pipe Making Machine Extruder 1
