PVC Pipe Extruder Machine 160mm Fully Automatic Pvc Pipe Making Machine

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

PVC Pipe Extruder Machine 160mm Fully Automatic Pvc Pipe Making Machine

PVC Pipe Extruder Machine 160mm Fully Automatic Pvc Pipe Making Machine
PVC Pipe Extruder Machine 160mm Fully Automatic Pvc Pipe Making Machine
PVC Pipe Extruder Machine 160mm Fully Automatic Pvc Pipe Making Machine PVC Pipe Extruder Machine 160mm Fully Automatic Pvc Pipe Making Machine PVC Pipe Extruder Machine 160mm Fully Automatic Pvc Pipe Making Machine PVC Pipe Extruder Machine 160mm Fully Automatic Pvc Pipe Making Machine PVC Pipe Extruder Machine 160mm Fully Automatic Pvc Pipe Making Machine PVC Pipe Extruder Machine 160mm Fully Automatic Pvc Pipe Making Machine PVC Pipe Extruder Machine 160mm Fully Automatic Pvc Pipe Making Machine

Large Image :  PVC Pipe Extruder Machine 160mm Fully Automatic Pvc Pipe Making Machine

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ65/132
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

PVC Pipe Extruder Machine 160mm Fully Automatic Pvc Pipe Making Machine

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 250kg/h Or Customized Pipe Diameter: 50-160mm
Suitable Materials: PVC Powder Speed: 1-5m/min
Screw: Twin Screw HS Code: 84772090
Origin: Qingdao China After-sales Service: 1 Year
High Light:

160mm Fully Automatic Pvc Pipe Making Machine

,

PVC Pipe Extruder Machine 160mm

,

380V PVC Pipe Extruder Machine

Full Automatic PVC Plastic Pipe Extrusion Line with Simens Motor

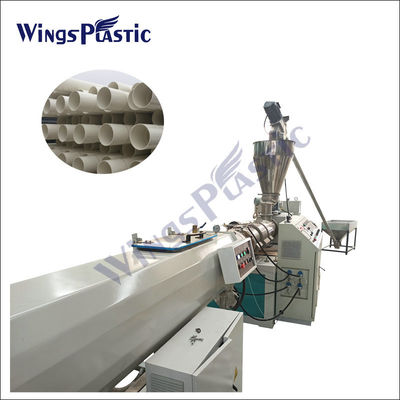

This machine group consists mainly of twin conical (parallel) screw extruder, vacuum calibration tank, haul-off, cutter, tilter...etc. The screw extruder and haul-off unit have applied imported A/C inverter, the barrel and screw are under hard chrome plated an bimetallic treatment, effectively reduce the abrasion caused by the CaCo3 and other additives. Both vacuum pump and driving motor have applied excellent products.
The haul-off machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type...etc. Sawing cutting machine or planet cutting machine can be applied, it is additionally equipped with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high, with special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer foam pipe...etc.

We can supply the online full automatic belling machine according to customer's requirement.

Pipe scope : 16-630mm
Weight: 10T
Suitable: pvc upvc
Power:110-360KW
Motor:simens
Condition: new
Type:PVC pipe production line, pvc pipe extrusion line
application:1. Water supply and drainage pipelines in building;
2. Rainwater drainage pipelines in building;
3. Electrical wiring pipe in building;
4. Air conditioning condensate water systems.
5. Certification: CE UL CSA
6. Screw material:38Cr2MoAlA

Description:

1. The line is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the
aspects such as the agricultural and constructional plumbing, cable laying etc.

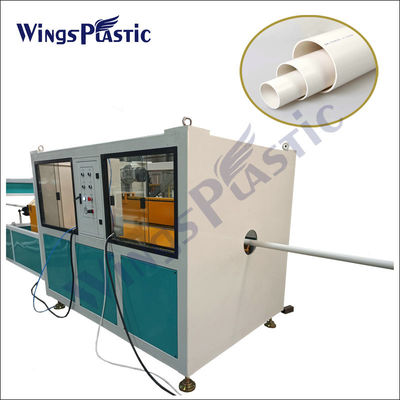

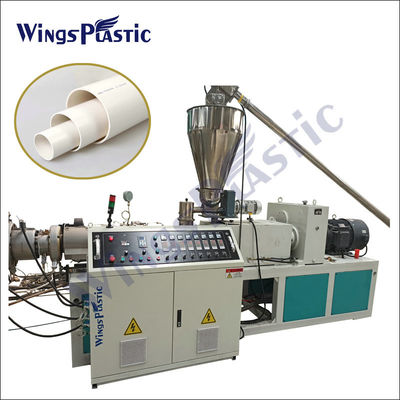

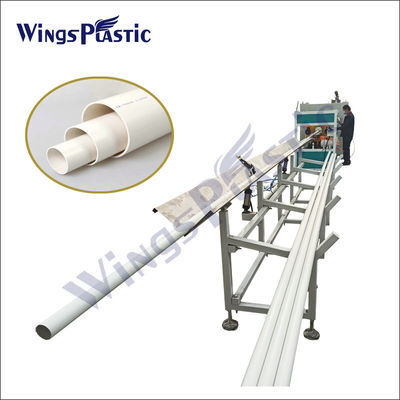

2. This set is composed of the conical twin-screw extruder, vacuum calibrating tank, haul-off, cutter, stacker
or belling machine etc.
3. The extruder and haul-off adopt the imported AC frequency control device.
4. The haul-off has different specifications, such as two-claw, three-claw, four-claw, six-claw etc.

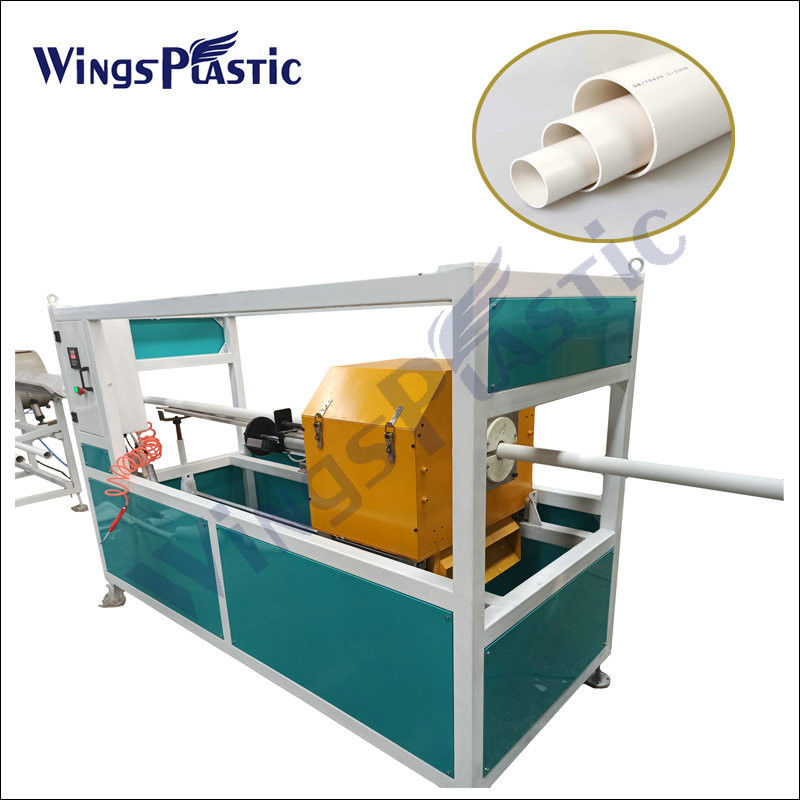

5. The cutter may choose the saw blade cutting type or the planetary cutting type.
6. The unit is of reliable performance and high production efficiency.
Specifications:



Applications:

1. Water supply and drainage pipelines in building;
2. Rainwater drainage pipelines in building;
3. Electrical wiring pipe in building;
4. Air conditioning condensate water systems.


Competitive Advantage:

1. Excellent in chemical corrosion, no rust;
2. With self extinguishing and flame retardant;
3. Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60
degrees Celsius;
4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7%
higher than the cast iron pipe;
5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to
the steel pipes, low labor intensity, short duration;
6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23
to 2kv/mm;
7. The toughness of PVC pipe is low, linear expansion coefficient is high, operating temperature range is
narrow.



PVC Pipe Extruder Machine 160mm Fully Automatic Pvc Pipe Making Machine 0

PVC pipe machine Line list

Pipe Range 16-40mm
(double)
20-110mm 50-250mm 160-400mm 315-630mm
Extruder SJZ65/132
Or
SJZ51/105
SJZ65/132 SJZ65/132
Or
SJZ80/156
SJZ80/156 SJZ92/188
Motor(KW) 37KW
or
18.5KW
37KW 37KW
Or
55KW
55KW 110KW
Capacity(KG/H) 80-180 150-250 150-350 200-360 400-600
Lineal speed(M/min) 1-15 1-12 0.3-6 0.2-2 0.1-1


PVC Pipe Extruder Machine 160mm Fully Automatic Pvc Pipe Making Machine 1
