PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder

PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder
PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder

Large Image :  PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder

Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: WINGS PLASTIC
Certification: CE
Model Number: SJ45/33
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets

PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder

Description
High Light:

Electrical Conduit Sheath Pipe Extruder

,

Corrugated Conduit Sheath Pipe Extruder

,

Protective Sheath Pipe Making Machine

Plastic PP PE PVC PA single wall corrugated electrical conduit protective sheath pipe extruder making machine

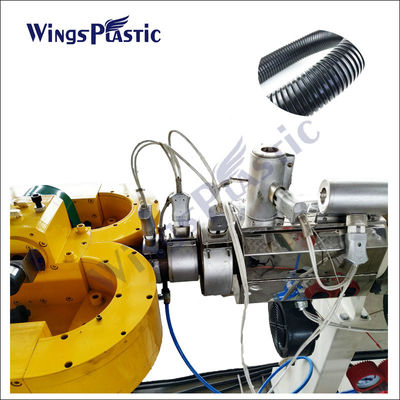

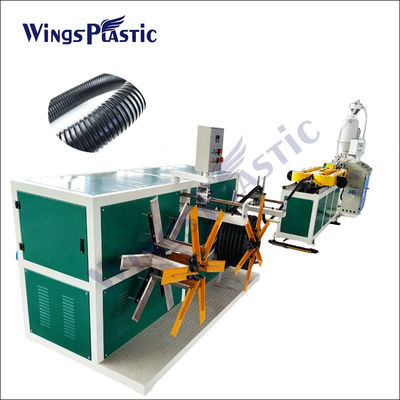

 PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder 0

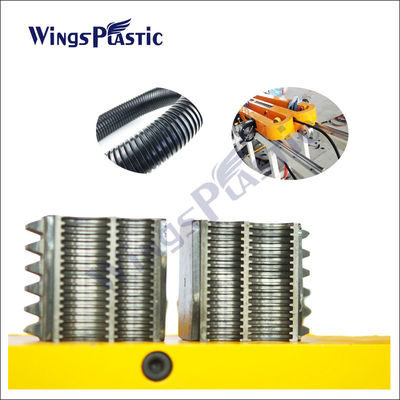

PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder 1





Corrugated pipe extrusion production line can be under many categories:
Plastic single-wall corrugated pipe production line for the production of various kinds of PP PA PVC PE single small diameter corrugated hose, such as equipment belong to small devices, the pursuit of high efficiency and stable.This kind of pipe is mainly used in punch running water seepage, mechanical, electrical insulating sheath, etc.

1) material for the single wall corrugated pipe :

This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes ( by changing different screw L:D)

2) application for the single wall corrugated pipe:

Plastic single-wall corrugated pipes have features of high temperature resistance,resistant to corrosion and abrasion,high intensity,good flexibility,etc.

They are widely used in fields of auto wire,electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lanterns wire,tubes of air conditioner and washing machine,etc.

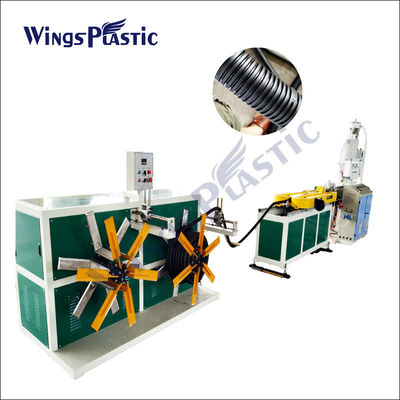

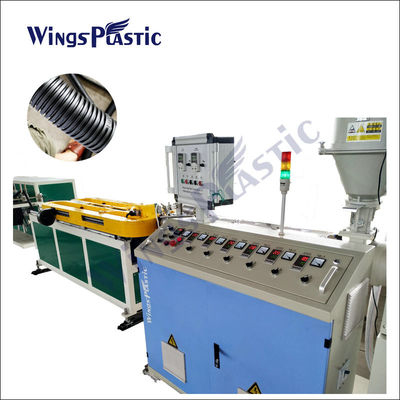

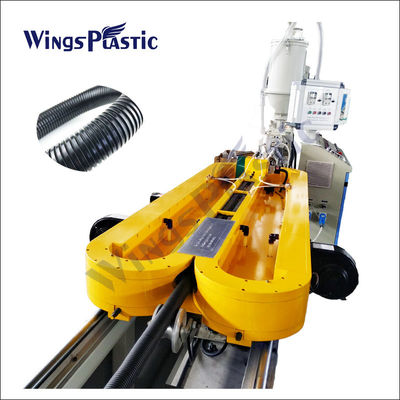

PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder 2

Main Technical Parameter of Plastic pp, pe, pvc corrugated electrical conduit protective sheath pipe making machine



Main Machine Provided SJ-65×25 Single-Screw Extruder
Pair of Mold Block 42
Pipe State Single wall corrugated pipe
Girth of Mold Block 2133.6mm
Drawing Speed 10-20m/min
Mold Block Cooling Mode Water and air cooling
Pipe Cooling Mode Water and air cooling
Wind Cooling Power 0.5×2KW
Main Machine Power 15-18.5KW
Driving Power of Auxiliary Machine 2.2KW
Set Weight 2500kg
Set Appearance Dimension

7500mm×1600mm×1700mm

(L×W×H)

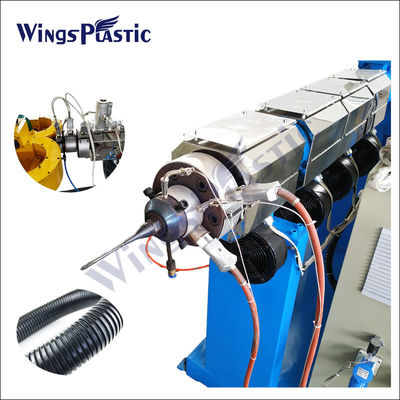

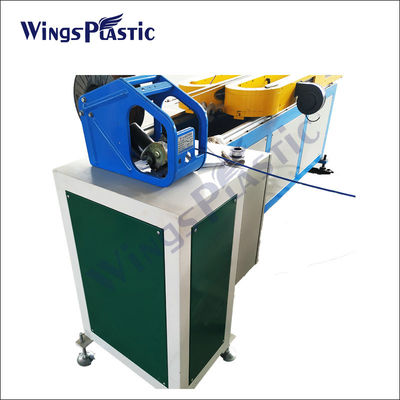

PP PE PVC PA Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extruder 3
