Product Details:
|
| Control System: | PLC | Cooling Method: | Air Cooling And Water Cooling |
|---|---|---|---|
| Extrusion Capacity: | 250kg/h | Material: | PET |
| Band Width: | 6-20mm | Screw L/D Ratio: | 30:1 |
| Screw Speed: | 0-100rpm | Voltage: | 380V/50Hz |
| Warranty: | 1 Year | Condition: | New |

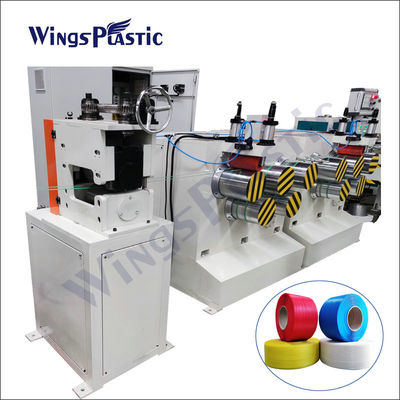

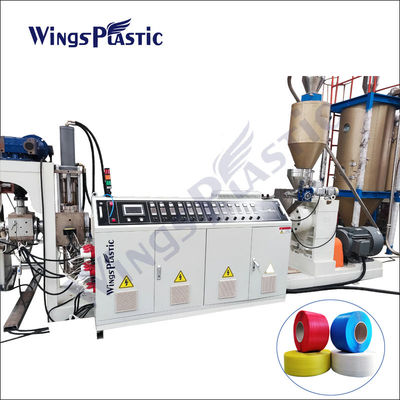

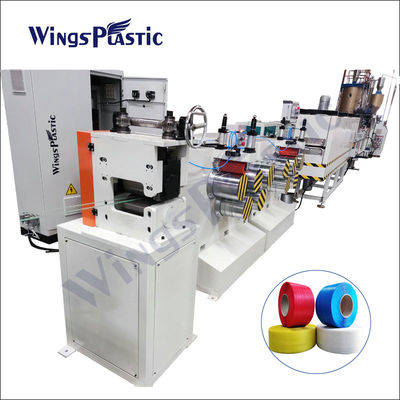

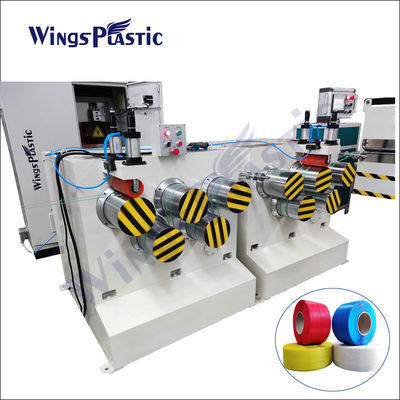

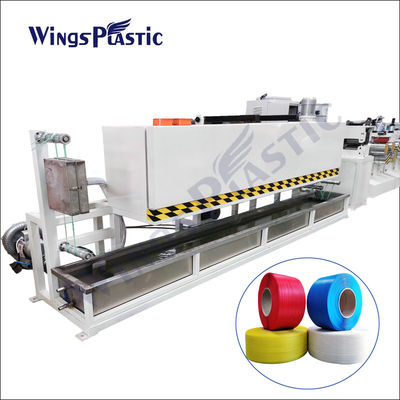

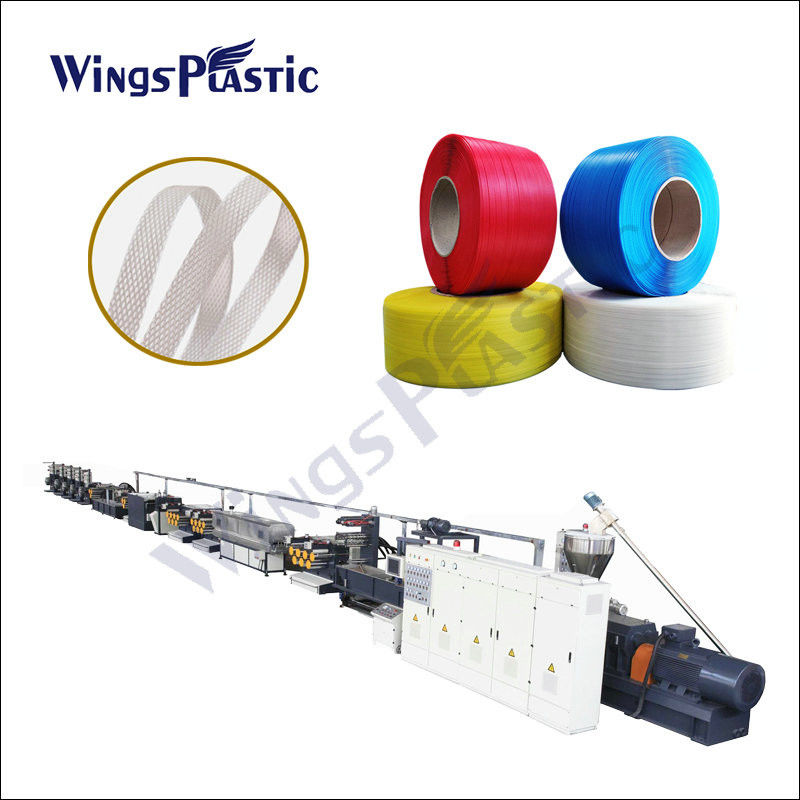

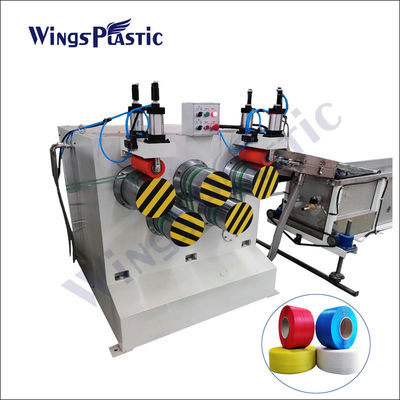

Automatic PET Packing Strap Making Machine PET Strapping Band Extruder Machine
PET PP strap, also known as plastic steel band, is recognized as a new environment protective strapping material to substitute for Steel Strap &PP Strap in the ruling international market. Our pet pp packing strap production line machinery adopts the PLC control the whole line to do the automatic production. It has the advantages of low energy consumption, high production capability, easy to operate and save manpower. The raw materials you can use the recycled PET flakes from the waste PET bottles, or virgin material or mixed with each other then by making them melt directly, which reduces the cost of raw meterial
Production Flow:
Materials feeding -- Pre-crystallization -- Drying -- Feeding -- Extruder melt -- Filter -- Melt metering pumb -- Extrusion die -- Hot water tank --Five Pulling rollers -- Stretching Oven -- Stretching rollers -- Embossing --Annealing treatment oven and water tank -- Three Pulling Rollers -- Winders -- Packing
| Name | Strap Cavities | Motor | Screw Diameter | Screw L:D | Output | Screw Speed |
| SJ90/33 | 1-2 Cavities | 75kw | 90mm | 33:1 | 150-250kg/h | 72RPM |
| SJ100/33 | 1-3 Cavities | 90kw | 100mm | 33:1 | 250-300kg/h | 72RPM |
| SJ120/33 | 2-4 Cavities | 110kw | 120mm | 33:1 | 300-400kg/h | 72RPM |
