Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: WINGS PLASTIC
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets

PLC System Control PPR Pipe PP Reinforced Pipe Manufacturing Machine PPR Tube Making Machine

Description
Cutting Length: 500-6000mm Extruder Model: SJ-65/33
Extruder Output: 150-250kg/h Haul-off Speed: 0.5-5m/min
Material: HDPE PPR LDPE LLDPE Pipe Diameter: 20-110mm
Pipe Thickness: 2.0-4.0mm Vacuum Calibration Tank Length: 6m
Condition: New

PLC System Control PPR Pipe PP Reinforced Pipe Manufacturing Machine PPR Tube Making Machine

PLC System Control PPR Pipe PP Reinforced Pipe Manufacturing Machine PPR Tube Making Machine 0

The PP-R drinking water pipe system is a new type of product commonly used in developed countries today. It adopts homogeneous fusion technology in cold and hot water transportation projects, and its comprehensive technical performance and economic indicators are far superior to other similar products, especially its excellent hygiene performance. From production to disposal, the entire process can meet extremely high hygiene and environmental requirements. The product has heat resistance, pressure resistance, insulation and energy conservation Long service life and economic advantages.
Main advantages:

1. Barrier type screw, by which the material can get good plasticizing at low temperature but high extrusion output.
2. Barrel with feeding groove, material is 38CrMoAl and nitrogen treated, surface hardness is HRC 65-68, which can has a long use life.
3. Millipore type mould with suitable inner compression ratio which can guarantee to produce high quality PPR pipes.
4. High automatic level. The production line is controlled by PLC(touch screen). All parts, like extruder, haul off unit, cutter etc can be controlled by touch screen synchronously.



Machinery Basic Informations:

Extruder Size Main Motor Max Capacity Pipe Diamter
65/33 37kw 150kg/h 16-63mm
65/33-H 45kw 180kg/h 16-63mm
65/33-H 55kw 200kg/h 20-110mm


Machine Application:

PLC System Control PPR Pipe PP Reinforced Pipe Manufacturing Machine PPR Tube Making Machine 1

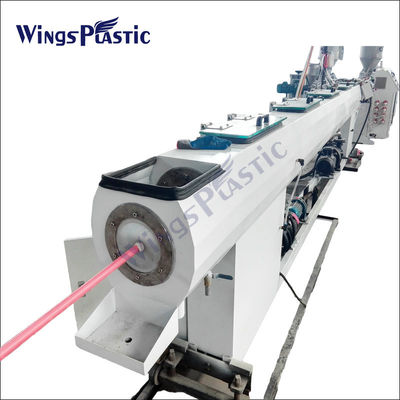

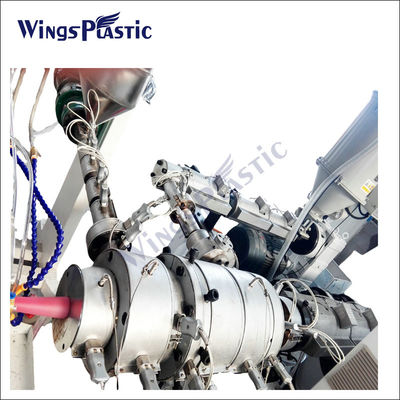

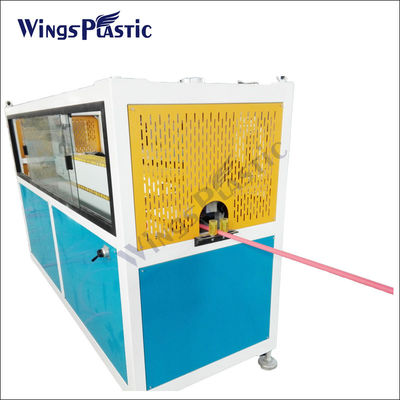

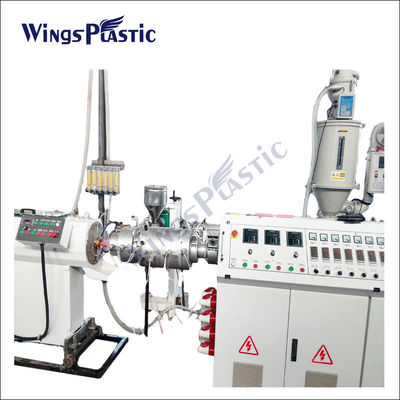

Machine Details:

PLC System Control PPR Pipe PP Reinforced Pipe Manufacturing Machine PPR Tube Making Machine 2

PLC System Control PPR Pipe PP Reinforced Pipe Manufacturing Machine PPR Tube Making Machine 3PLC System Control PPR Pipe PP Reinforced Pipe Manufacturing Machine PPR Tube Making Machine 4
