Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: WINGS PLASTIC
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets

Rigid pipe PVC water supply pipe manufacturer machine pvc pipe making machine

Description
Control System: PLC Control Cooling Method: Air Cooling And Water Cooling
Material: PVC Max Output: 250kg/h
Screw Diameter: 50-160mm Screw Speed: 0-74rpm
Voltage: 380V/50Hz/3Phase Speed: 1-5 M/min
Condition: New Extruder: Counter-rotating Conical Twin-screw

Rigid pipe PVC water supply pipe manufacturer machine pvc pipe making machine



Rigid pipe PVC water supply pipe manufacturer machine pvc pipe making machine 0

PVC plastic pipe production line / extruder machine is a kind of special equipment for extruding of PVC powder.With different sorts of molds and auxiliary machines,it can produce all sorts of PVC plastic pipe material, profiled material, plate material, sliced material and granulation.The screw has applied oil cooling system.Barrel is cooled by special wind cooling system.The system has applied special computer control.according to customer's requirements,most reasonable screw can be made so as to achieve best plasticity state and material quality.

The vacuum calibration and cooling system with special technical desig, it adopts the spray type cooling to adapt to the special requirements of PVC extrusion and ensure the stability of the production line at high speed.

The extruders and haul-off units are adopted the famous inverter drive and control, they are good stability, high precision and high reliability.

Rigid pipe PVC water supply pipe manufacturer machine pvc pipe making machine 1



Standard Equipment List

No Device Name Qty

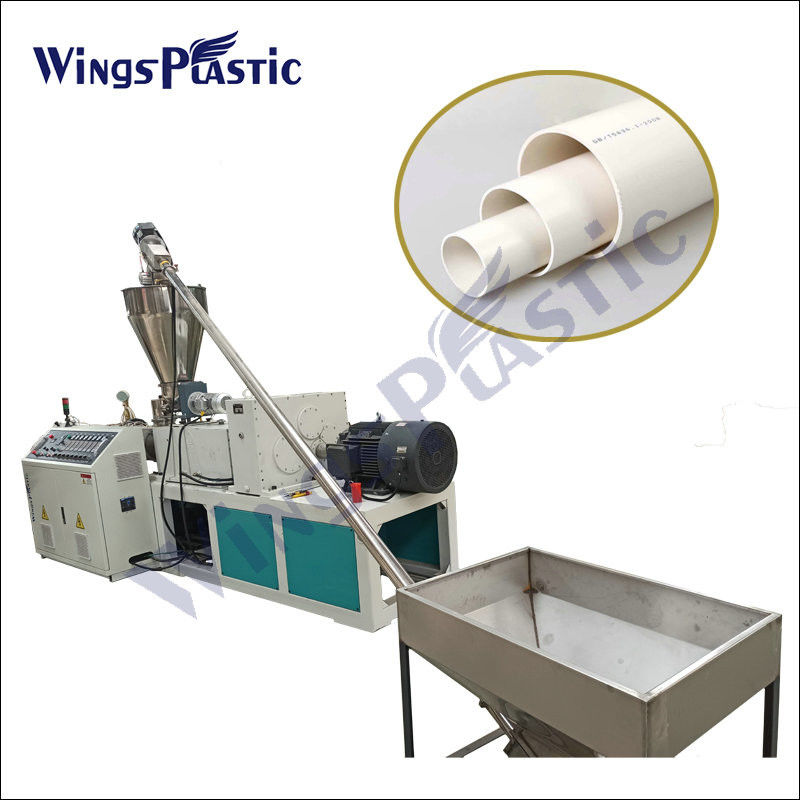

1 Screw Loader SL-102 1pc

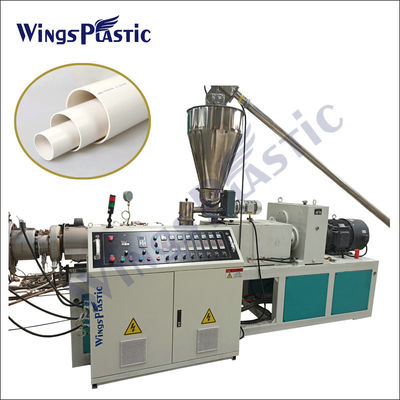

2 SJ65/132 Conical Twin Screw Extruder 1pc

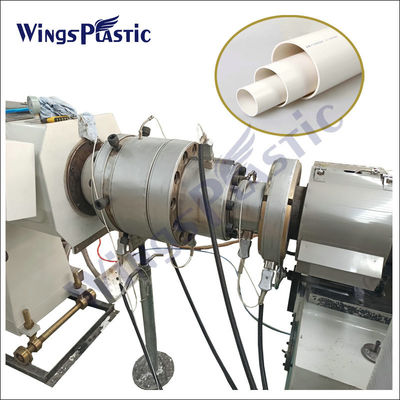

3 Mould(Φ50-200mm) 1pc

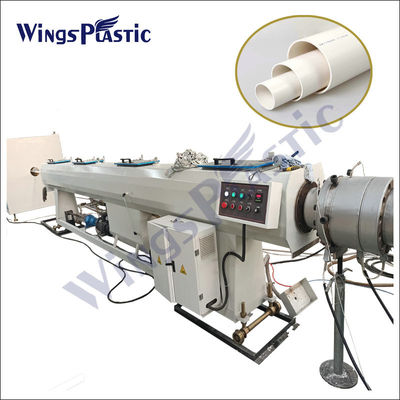

4 Vacuum Calibration tank 1pc

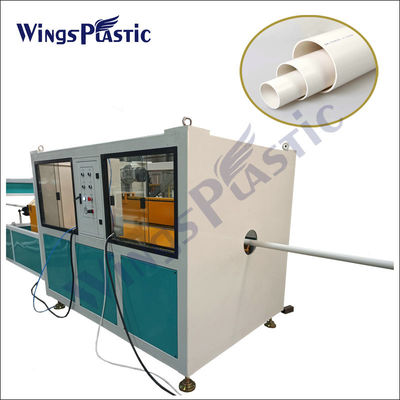

5 Haul-off Machine 1pc

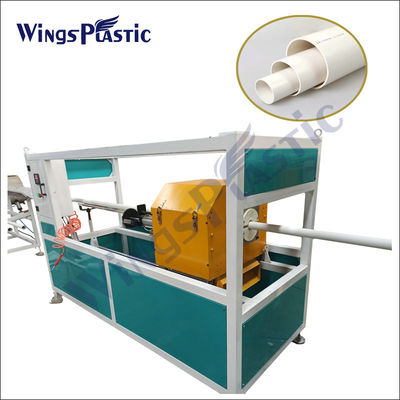

6 Cutter Lifting 1pc

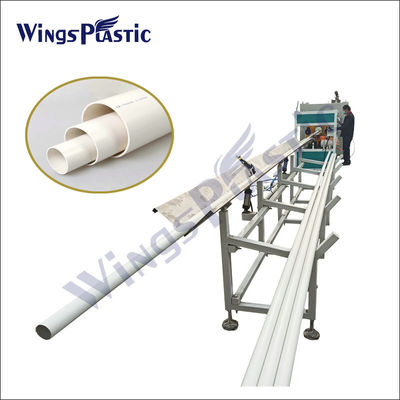

7 Stacker 1pc
8 Electrical System 1pc



Our extrusion line can produce the PVC pipe with diameter from 16mm to 630mm

PVC pipe machine Line list

Pipe Range 16-40mm
(double)
20-110mm 50-250mm 160-400mm 315-630mm
Extruder SJZ65/132
Or
SJZ51/105
SJZ65/132 SJZ65/132
Or
SJZ80/156
SJZ80/156 SJZ92/188
Motor(KW) 37KW
or
18.5KW
37KW 37KW
Or
55KW
55KW 110KW
Capacity(KG/H) 80-180 150-250 150-350 200-360 400-600
Lineal speed(M/min) 1-15 1-12 0.3-6 0.2-2 0.1-1




Machine Layout

Rigid pipe PVC water supply pipe manufacturer machine pvc pipe making machine 2

Production Process

PVC powder + additive — mixing—material feeder—twin screw extruder—mould and calibrator—vacuum forming machine—spraying cooling machine—haul-off machine—cutting machine—discharge rack or pipe belling machine.

Details Image



Rigid pipe PVC water supply pipe manufacturer machine pvc pipe making machine 3

Final Product & Application

Rigid pipe PVC water supply pipe manufacturer machine pvc pipe making machine 4Rigid pipe PVC water supply pipe manufacturer machine pvc pipe making machine 5

Rigid pipe PVC water supply pipe manufacturer machine pvc pipe making machine 6

Rigid pipe PVC water supply pipe manufacturer machine pvc pipe making machine 7
