High Speed Plastic PE PVC Corrugated Pipe Machine

High Speed Plastic PE PVC Corrugated Pipe Machine
High Speed Plastic PE PVC Corrugated Pipe Machine High Speed Plastic PE PVC Corrugated Pipe Machine High Speed Plastic PE PVC Corrugated Pipe Machine

Large Image :  High Speed Plastic PE PVC Corrugated Pipe Machine

Product Details:
Place of Origin: CHINA
Brand Name: WINGS
Certification: CE ISO
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000-30000 per set
Packaging Details: wooden case, container
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month

High Speed Plastic PE PVC Corrugated Pipe Machine

Description
Condition: New Screw Material: 38CrMoAlA
Screw L/D Ratio: 33:1 Screw Design: Single-screw
Inverter: Delta Brand Contactor: Siemens Contactor
Output: 200 - 250 Kg/h Raw Material: PP PE Pvc Hdpe
Core Components: Bearing, PLC Final Product: High Speed Single Wall Corrugated Pipe
High Light:

PVC Corrugated Pipe Machine

,

PLC PE Corrugated Pipe Machine

,

PVC Corrugated Pipe Extruder Machine

High Speed High Quality Plastic PE PVC Corrugated Pipe Machine

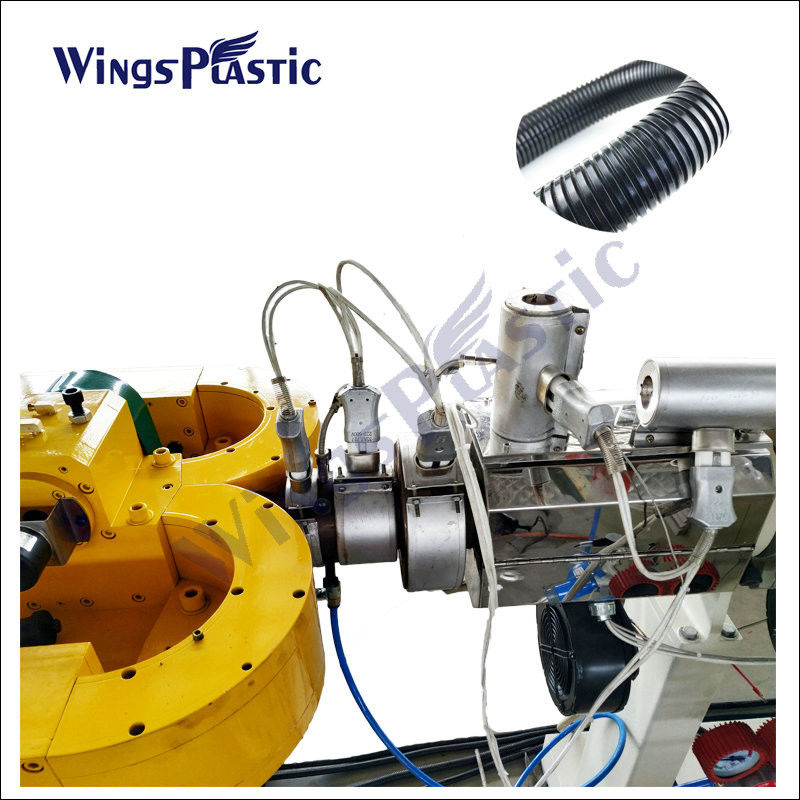

Single wall corrugated pipe extrusion line designed by our company can produce PP/PE/EVA/PVC etc single wall corrugated pipes, which takes the advantages of high temperature resistance, abrasion resistance, corrosion resistance, high strength. This hose can be widely used in wire and cable products threading pipes, washing machine drains, vacuum cleaner, ventilation pipes, tubes, etc. This extrusion line consists of extruders, die head, corrugation forming machine with modules, coiler etc. and can produce different sizes of corrugated pipes.


Features:

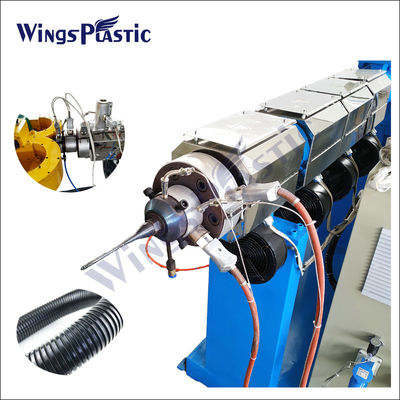

1. Extruder: high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.
2. Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.

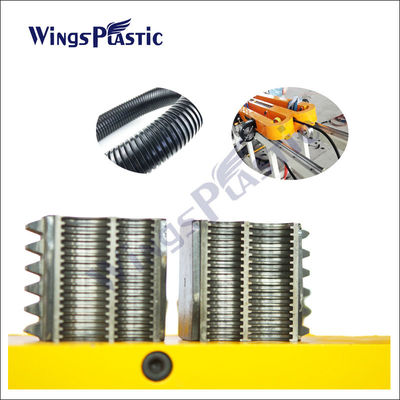

3. Forming modules: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change.
4. Coiler: Single position or double position with torque motor.


For plastic machines, our main products also include:
PVC pipe extrusion lines,
PP&PET straps production lines,
PP/PE/PPR pipe extrusion line,
Double wall corrugated pipe production line,
HDPE/LDPE pipe extrusion line,
plastic extruders, etc.
