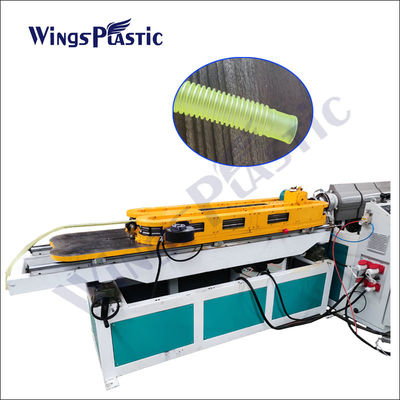

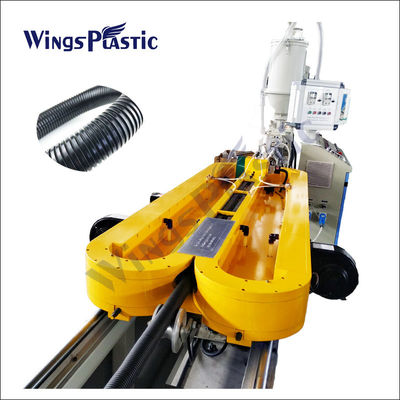

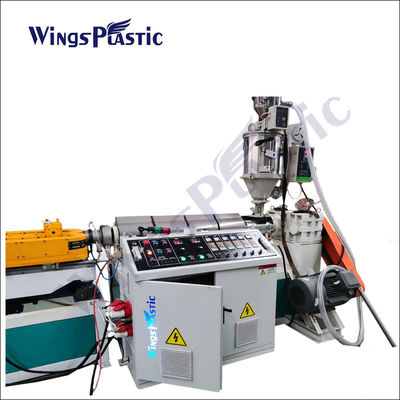

Plastic Shrinkable Children Pop Tube Toys Single Wall Corrugated Pipe Making Machine

Plastic Shrinkable Children Pop Tube Toys Single Wall Corrugated Pipe Making Machine
Plastic Shrinkable Children Pop Tube Toys Single Wall Corrugated Pipe Making Machine Plastic Shrinkable Children Pop Tube Toys Single Wall Corrugated Pipe Making Machine Plastic Shrinkable Children Pop Tube Toys Single Wall Corrugated Pipe Making Machine

Large Image :  Plastic Shrinkable Children Pop Tube Toys Single Wall Corrugated Pipe Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: WINGS
Certification: CE ISO
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000-30000 per set
Packaging Details: wooden case, container
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month

Plastic Shrinkable Children Pop Tube Toys Single Wall Corrugated Pipe Making Machine

Description
Condition: New Screw Material: 38CrMoAlA
Screw L/D Ratio: 33:1 Screw Design: Single-screw
Inverter: Delta Brand Contactor: Siemens Contactor
Output: 200 - 250 Kg/h Raw Material: PP PE Pvc Hdpe
Core Components: Bearing, PLC Final Product: High Speed Single Wall Corrugated Pipe
High Light:

Toys Corrugated Pipe Making Machine

,

Shrinkable Children Pop Tube Machine

,

Shrinkable Corrugated Pipe Making Machine

SINGLE WALL CORRUGATED PIPE MACHINE
3-12m/min plastic single wall corrugated pipe machine the diameter is from 5mm to 110mm.


Produce process :
Raw material+ master batches → Mixing → vacuum feeding → material dryness → single screw extruder →Forming Unit→ Double disc Winding → finished product inspecting &packing



Product Advantage.
Whole line consists of Single Screw Extruder, Mould, Forming Machine(With Corrugated Forming Pairs), Auto-Tension Controller, and Winder Unit. It adopts gear transmission module and cooling water circulation for cooling, which production speed can be up to 10-15m/min, and the pipe with characteristics of one-step forming, uniform shape of the ripples, consistent joint, smooth inside and outside pipe wall.

Structure design of special screw and mould is reasonable, replacement of mould is convenient and reliable, and the problem of easy wear of screw barrel and difficult forming of material is solved. The production line has fast and stable speed, easy to operate.

Plastic Shrinkable Children Pop Tube Toys Single Wall Corrugated Pipe Making Machine 0
