Product Details:
|
| Condition: | New | Screw Material: | 38CrMoAlA |
|---|---|---|---|
| Screw L/D Ratio: | 33:1 | Screw Design: | Single-screw |
| Inverter: | Delta Brand | Contactor: | Siemens Contactor |
| Output: | 200 - 250 Kg/h | Raw Material: | PP PE Pvc Hdpe |
| Core Components: | Bearing, PLC | Final Product: | High Speed Single Wall Corrugated Pipe |
| Highlight: | Water Vase Corrugated Pipe Machine,Nargile Bar Corrugated Pipe Machine,Hookah Corrugated Pipe Extruder Machine |
||
Product Description
PE PP single wall corrugated pipes produced by our PVC PE PP single wall Corrugated pipe extrusion machine have many features such as high intensity,good flexibility,high temperature resistance,resistant to corrosion and abrasion etc.

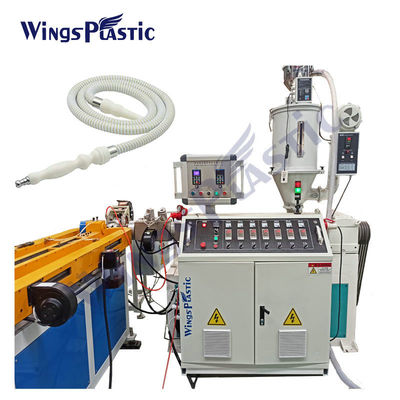

PVC PE PP single wall Corrugated pipe extrusion machine includes a vacuum feeder and a drying hopper, a SJ65 single-screw extruder, a die, forming modules, a forming machine and a winder.
Plastic single wall corrugated pipes, widely used in the wire connection of machine tool machinery and electric box control cabinet, the product is beautiful, light and durable, widely used in automotive wire harness, electronic, mechanical wire harness and other fields.
Product Advantage

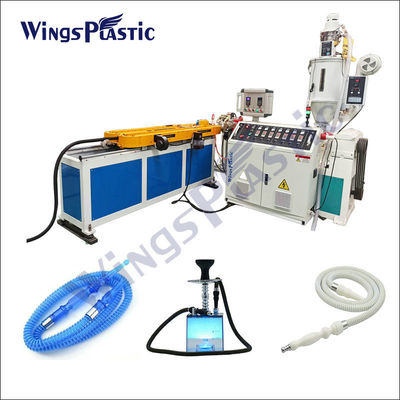

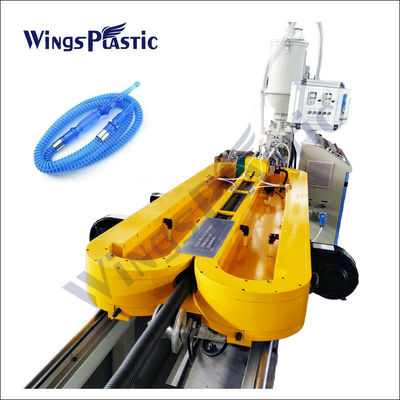

Whole line consists of Single Screw Extruder, Mould, Forming Machine(With Corrugated Forming Pairs), Auto-Tension Controller, and Winder Unit. It adopts gear transmission module and cooling water circulation for cooling, which production speed can be up to 10-15m/min, and the pipe with characteristics of one-step forming, uniform shape of the ripples, consistent joint, smooth inside and outside pipe wall.
Structure design of special screw and mould is reasonable, replacement of mould is convenient and reliable, and the problem of easy wear of screw barrel and difficult forming of material is solved. The production line has fast and stable speed, easy to operate.
