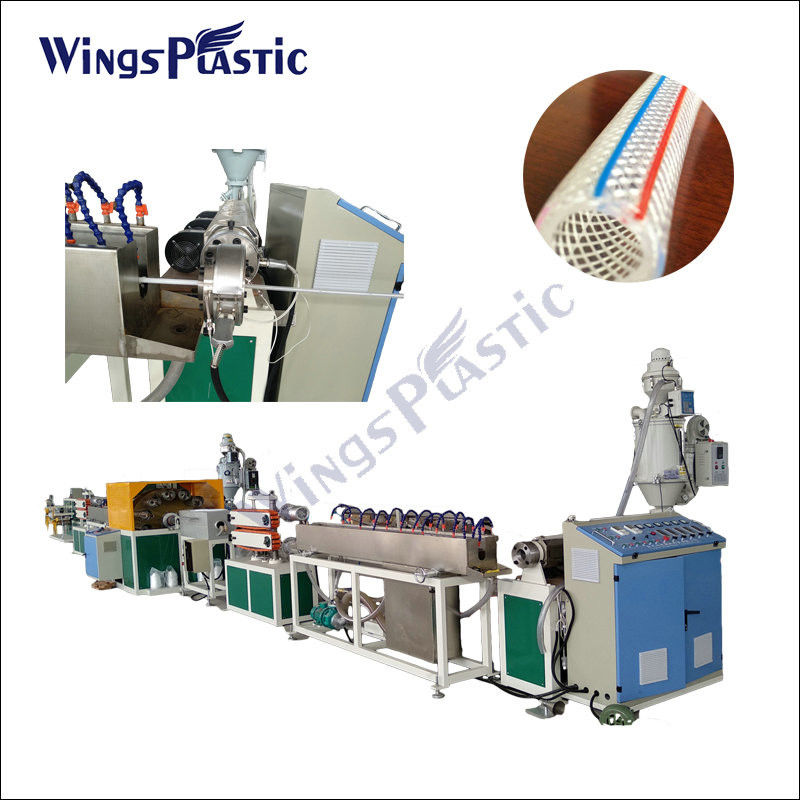

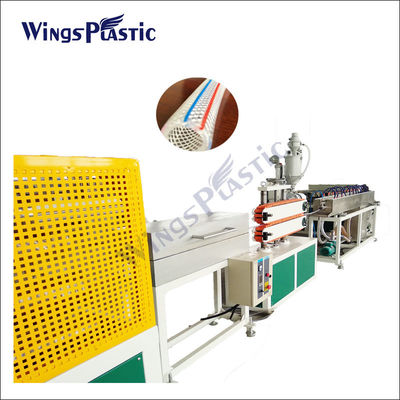

Plastic PVC Garden Water Pipe Extruder / PVC Braided Pipe Extrusion Machine

Plastic PVC Garden Water Pipe Extruder / PVC Braided Pipe Extrusion Machine
Plastic PVC Garden Water Pipe Extruder / PVC Braided Pipe Extrusion Machine Plastic PVC Garden Water Pipe Extruder / PVC Braided Pipe Extrusion Machine Plastic PVC Garden Water Pipe Extruder / PVC Braided Pipe Extrusion Machine

Large Image :  Plastic PVC Garden Water Pipe Extruder / PVC Braided Pipe Extrusion Machine

Product Details:
Place of Origin: CHINA
Brand Name: WINGS
Certification: CE ISO
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000-25000 per set
Packaging Details: woode case and container
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month

Plastic PVC Garden Water Pipe Extruder / PVC Braided Pipe Extrusion Machine

Description
Screw Design: Single-screw Screw L/D Ratio: 30:1
Plastic Processed: Pvc Key Selling Points: High Productivity
Warranty: 1-2 Years Screw Material: 38CrMoAlA
Screw Diameter (mm): 65 Screw Speed (rpm): 50
High Light:

PVC Garden Water Pipe Extruder

,

PVC Braided Pipe Extrusion Machine

PRODUCT OVERVIEW
It produce PVC fiber hose which diameter range is from 6 mm to 50 mm. PVC fiber hose is used to produce PVC fiber hose, which has three layers, the outer and inner layer fiber, which has good chemical and physical property. It is mainly used for the transportation of high pressure or corrosion gas, widely used in the machinery, garden hose, coal mine, oil, chemical, agriculture irrigation and buildings.


PRODUCT PARAMETERS
General information of PVC garden hose production line
1.Adopt PLC control and simple operation.
2.Use stainless steel which type is 304.
3.The center height can be adjusted.
4. Material of screw and barrel: 38CrMoAlA, nitrogen quenched which the thickness layer 0.4-0.7mm; Hardness of screw barrel: >940 HV.
5. Adopt Electric Parts (Motor/Inverter/breaker/relay and so on) which is SIEMENS/OMRON/SCHNEIDER. It can keep machine operation stable and improve the extruder’s output.
6.Production speed is 6m/min to 15m/min.

Plastic PVC Garden Water Pipe Extruder / PVC Braided Pipe Extrusion Machine 0
FAQ
Q: What is the procedure when you buy our machine?
A: Confirm the technology and machine configure -----confirm price----sign contract and make PI---send down payment – start to make machine---inform you before machine finish—you come our factory to check the machine---you accept the machine ----finish payment—exporting---send our technicians to your factory install the machine---answer your question all the using time and supply spare parts with cost only.
we are still continue to do development on the machine and always try to rise its techlonoy level.more details information please contact with our company for further discusion.
