PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine

PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine
PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine
PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine

Large Image :  PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine

Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: WINGS PLASTIC
Certification: CE
Model Number: SJ45/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets

PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine

Description
Control System: PLC Control Cooling System: Air/Water Cooling
Cutting System: High Speed Cutter Extrusion Output: 100-150kg/h
Heating System: Electric Heating Material: PVC FEP
Motor Power: 22kw Product Name: PVC Pipe Extruder Machine
Screw L/D Ratio: 30:1 Screw Speed: 073rpm
Voltage: 380V/50Hz Warranty: 1 Year
High Light:

Medical Infusion Tube Extrusion Machine

,

PVC Mono Layer Tube Extruder

PVC Mono layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine

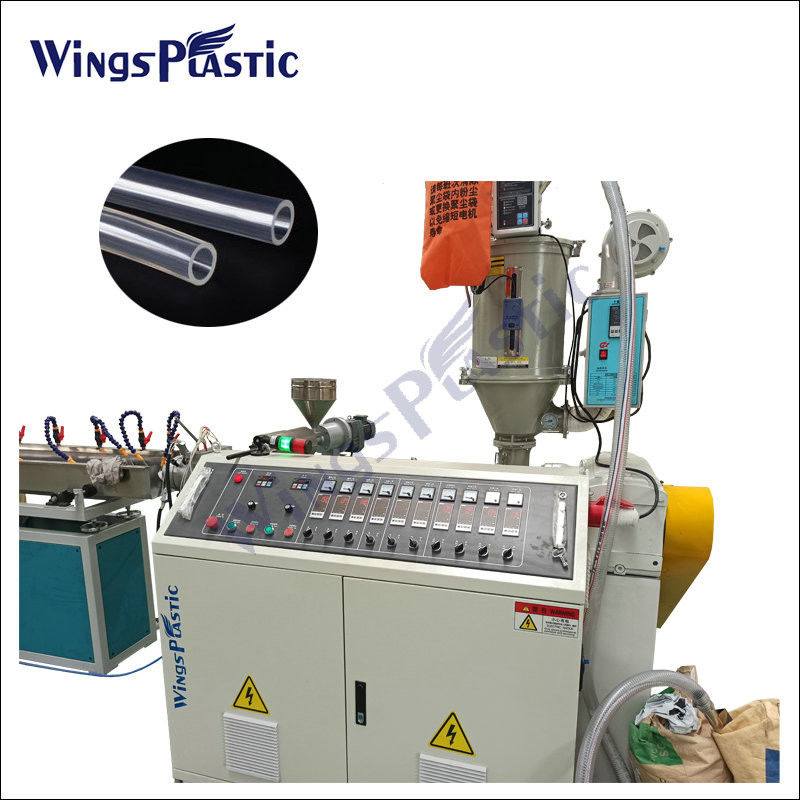

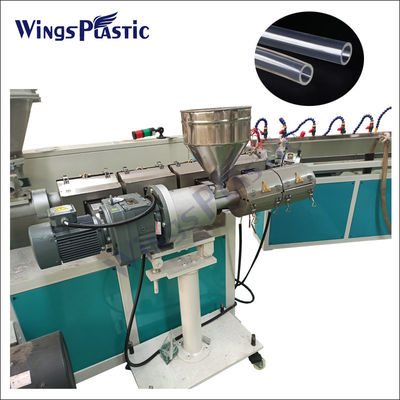

1. The main screw barrel is made of new No. 3 steel, cast copper heating ring, the main machine speed control is energy-saving frequency conversion speed control, intelligent temperature control meter temperature control, the main motor is driven by Siemens motor. Main screw :φ25-φ45

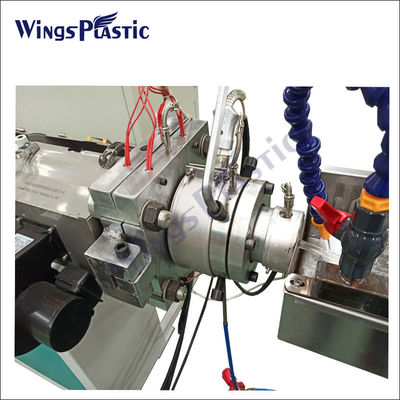

2.The head mold: new No. 3 steel mold.

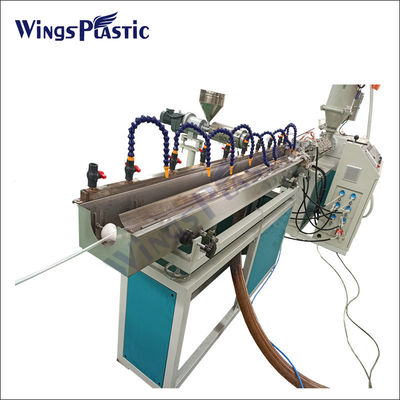

3.Three meters stainless steel vacuum sink, can be adjusted before and after, left and right, up and down three-dimensional, easy to operate, beautiful and practical appearance.



4.Belt tractor: belt tractor, 600MM effective length, to provide enough traction, Siemens motor drive, frequency control, precision transmission components, traction speed is stable without beating.

PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine 0
PVC Mono Layer Soft Hose Plastic Medical Infusion Tube Extrusion Machine 1
