Product Details:
|
| Plastic Processed: | PVC | Screw Design: | Single-screw |
|---|---|---|---|
| Screw Material: | 38CrMoAlA | Screw L/D Ratio: | 33:1 |
| Screw Speed (rpm): | 90 Rpm | Voltage: | Customized |
| Inverter: | Delta Brand | Contactor: | Siemens Contactor |
| Highlight: | Pvc Pipe Extrusion Machine,Electrical Conduit Pipe Making Machine,Pe Pipe Extrusion Machine |
||

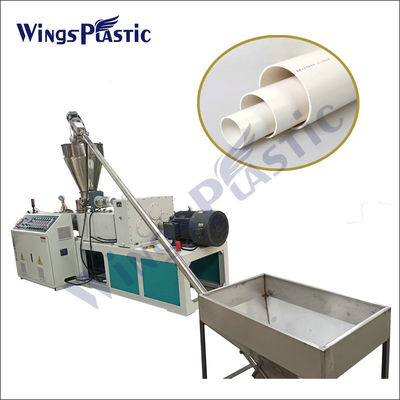

PVC Plastic pipe making machine is mainly used in the production of Agricultural water supply & water discharge system, architectural water supply & discharge system, wire laying system, etc. purposes.
The unit consists of Conical (Parallel) double screw extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker/Belling machine.
And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
Process Flow: Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Four claws Haul-off → Planetary Saw Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing
Application
1).Water supply, drainage pipelines in building;
2).Rainwater drainage pipelines in building;
3).Electrical wiring pipe in building;
4).Air conditioning condensate water systems.
