HDPE Prestressed Spiral Corrugated Tube Extrusion Machine

HDPE Prestressed Spiral Corrugated Tube Extrusion Machine
HDPE Prestressed Spiral Corrugated Tube Extrusion Machine HDPE Prestressed Spiral Corrugated Tube Extrusion Machine HDPE Prestressed Spiral Corrugated Tube Extrusion Machine HDPE Prestressed Spiral Corrugated Tube Extrusion Machine HDPE Prestressed Spiral Corrugated Tube Extrusion Machine HDPE Prestressed Spiral Corrugated Tube Extrusion Machine HDPE Prestressed Spiral Corrugated Tube Extrusion Machine HDPE Prestressed Spiral Corrugated Tube Extrusion Machine

Large Image :  HDPE Prestressed Spiral Corrugated Tube Extrusion Machine

Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Certification: CE
Model Number: SJ65/30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets

HDPE Prestressed Spiral Corrugated Tube Extrusion Machine

Description
HeatingPower: 3kw Voltage: 220V/380V/415V/440V/480V
Pipe Type: Round Or Flat Round Material: PE New Graunles Or Recycled Granules
ExtruderSpeed: 74rpm ExtruderType: Single Screw
ScrewDiameter: 65mm MotorPower: 105kw
High Light:

Spiral Corrugated Tube Extrusion Machine

,

HDPE Corrugated Tube Extrusion Machine

,

Prestressed Spiral Corrugated Tube Extruder

HDPE Prestressed Spiral Corruagted Tube Extrusion Machine

Product Description:

The PE Prestressed Spiral Corrugated Pipe Extruder Machine is an advanced PLC controlled extrusion line designed to produce corrugated pipes in various sizes with high quality. It is equipped with a powerful motor of 105kw and heating power of 3kw to drive the extrusion process. The extrusion line is capable of working at a frequency of 50HZ to ensure a smooth and efficient production. The machine is suitable for processing different materials such as PE new granules or recycled granules. The unique air cooling system ensures maximum production efficiency while guaranteeing the quality of the produced corrugated pipes. The Corrugated Pipe Extruder Machine is an ideal choice for production of high-quality corrugated pipes with reliable performance.



Features:

  • Product Name: Corrugated Pipe Extruder Machine
  • Pipe type: Round or Flat Round
  • ExtruderType: Single Screw
  • Material: PE New Graunles or Recycled Granules
  • Heating Power: 3kw
  • Screw Diameter: 65mm
  • For Post Tension Spiral Plastic Duct


Technical Parameters:

Parameter Value
Cooling Mode Air Cooling
Voltage 220V/380V/415V/440V/480V
Pipe Type Round Or Flat Round
Frequency 50HZ
Material PE New Graunles Or Recycled Granules
Motor Power 105kw
Output 350kg/h
Extruder Speed 0-50rpm
Extruder Type Single Screw
Heating Power 3kw
Product Prestressed Corrugated Pipe, Post Tension Spiral Plastic Duct, Extruder Machine


Applications:

Wings Plastic SJ65/30 Corrugated Pipe Extruder Machine is a high-end extrusion line with advanced PLC control system and air cooling technology. It is specially designed for extruding corrugated pipes with PE new graunles or recycled granules. This extruder machine is featured with a 65mm screw diameter and 50HZ frequency, which provides a high-efficiency and stable operation.

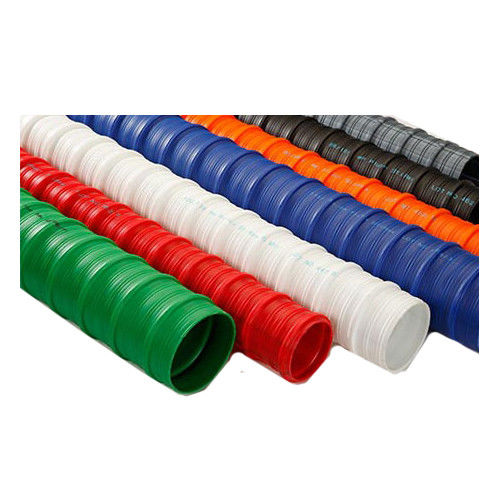

The corrugated pipe extruder machine from Wings Plastic can produce pipes with various sizes and shapes, such as round, square, triangle, and other complicated shapes. It is widely used for water drainage, sewage pipe, electric wire conduit, and many other applications.

Thanks to its superior performance, the Wings Plastic SJ65/30 Corrugated Pipe Extruder Machine is a perfect choice for many corrugated pipe production industries. It has become one of the most popular extrusion lines on the market today.



Support and Services:

Technical Support and Service for Corrugated Pipe Extruder Machine

We provide professional technical support and service for our Corrugated Pipe Extruder Machine. Our team of experienced engineers and technicians are available to answer any questions you may have.

We offer technical advice on the best choice of extruder machine for your specific needs. Our engineers can help you decide which machine is most suitable for your application.

We provide comprehensive maintenance and repair services. This includes regular maintenance and servicing to ensure your Corrugated Pipe Extruder Machine runs at peak performance. In the event of an emergency breakdown, our team can be onsite quickly to get your machine up and running again.

We also provide spare parts and accessories for our Corrugated Pipe Extruder Machines. All our parts are sourced from reputable suppliers and come with a comprehensive warranty.

We pride ourselves on our excellent customer service. We provide friendly and knowledgeable support whenever you need it, from initial enquiry to after-sales service.



Packing and Shipping:

The Corrugated Pipe Extruder Machine will be shipped in three parts: the body, the motor, and the control box. All parts are secured in custom-made wooden crates for extra protection during shipping. Each part is wrapped in bubble wrap and secured with strong straps. The crates are then sealed with a waterproof adhesive sealant. Appropriate shipping labels are affixed to the crates. All parts are then shipped via a reliable freight carrier.



FAQ:

Q:Are you machinery factory or trading company?
A:We are machinery factory.
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q:How can we visit your company and machines?
A:Our company located in Jiaozhou City nearby Jiaodong Airport.If customer want to visit our factory,we will pick up you at the airport.Of course, because of the special period, customers cannot come, so we can also audit the factory through online video.
Q:What`s the payment method?
A:T/T, L/C, etc.
Q:How long is the warranty?
A:12 months.
Q:How long is the delivery time?
A:Under normal conditions, products are delivered within 60 working days.
Q:How to install machine when machine arrive?
A;We will arrange our engineer to customer factory for installation and teach customer`s worker how to operate the machine,and in this special period,we will guides the installation and commissioning online when the equipment arrived.
