CPVC UPVC HDPE 20-110mm Water Pipe Electric Wire Tube Single / Double Screw Extruder Machine

CPVC UPVC HDPE 20-110mm Water Pipe Electric Wire Tube Single/Double Screw Extruder Machine

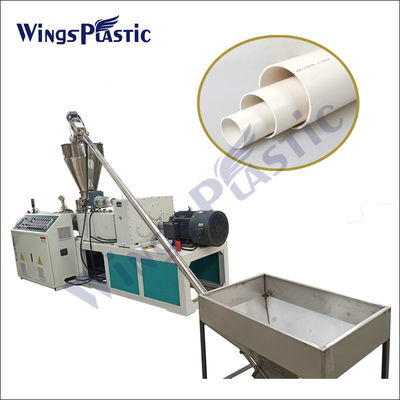

1. PVC Pipe Electric Making Machine Conical double screw extruder with automatic feeding system:
According to the requirements of different diameters, different wall thicknesses and different output of pipes, we have many models of special twin screw extruders to choose from. It adopts a specially designed screw structure, which can evenly heat, plasticize PVC powder and extrude pipes .
(1) Motor brand: Siemens
(2) Inverter brand: Delta
(3) Contactor brand: Siemens
(4) Relay brand: Omron
(5) Breaker brand: Schneider
(6) Material of screw and barrel: 38CrMoAlA.
(7) Heating method: Ceramic or cast aluminum heating
2. PVC Pipe Electric Making Machine Mould:
The mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.
(1) Material: 40GR
(2) Size: Customized

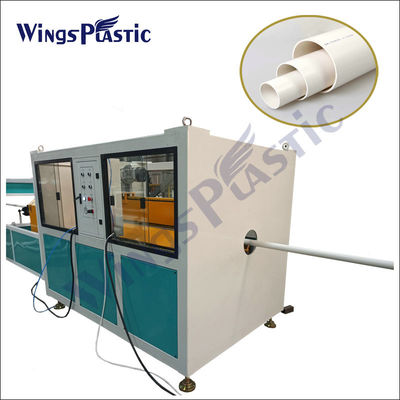

3.PVC Pipe Electric Making Machine Calibrating and cooling tank:
The calibrating and cooling tank can calibrate and cool the PVC pipe from the mould.
(1) Vacuum pump power : 4 kw
(2) Water pump power: 2.2 kw*2
(3) Spray cooling: ABS nozzle; Stainless steel pipe
(4) Stainless steel material: 1Cr18NiTi
(5) Diameter of tank : Customized
(6) Length of tank: 6 m
4.PVC Pipe Electric Making Machine Haul-off machine
The haul-off machine can transport PVC pipe to cutting machine.
(1) Hauling power: 1.5 kw
(2) Clamping style: Pneumatic clamping
(3) Transducer: Siemens transducer
(4) Hauling track type: Plastic block
(5) Effective clamping length 1800 mm
5.PVC Pipe Electric Making Machine Cutting machine:
The special cutting machine for PVC pipe adopts rotary clamping device, is suitable for different pipe diameters, avoids the trouble of frequently changing clamping device.
(1) Cutting motor power: 1.5 kw
(2) Cutting scope: Customized
(3) Control means: Pneumatic control
6.PVC Pipe Electric Making Machine Stacker:
It is used to hold pipes and can unload pipes automatically.
(1) Length: 6000 mm
(2) Material: Stainless steel
(3) Unloading method: Pneumatic unloading
7.PVC Pipe Electric Making Machine Belling machine (optional)
Belling machine can expand one end of the PVC pipe into the specified shape.
