Water Plastic PVC Conduit Bend Making Machine Pipe Production Line

Water Plastic PVC Conduit Bends Making Machine Pipe Production Line

A PVC pipe extrusion machine is a piece of industrial equipment used to produce PVC (polyvinyl chloride) pipes through the process of extrusion. PVC pipes are commonly used in a variety of applications, including water supply, drainage, irrigation, and conduit systems. The extrusion process involves melting raw PVC material and shaping it into a continuous profile, which is then cooled and cut into individual pipes.

The PVC resin is heated and melted in an extruder. The extruder is a machine that consists of a screw mechanism inside a barrel. The rotation of the screw forces the material forward while also heating and melting it.

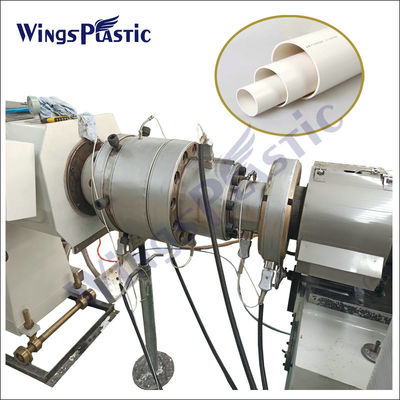

The molten PVC is then forced through a specially designed extrusion die. The die shapes the material into a continuous profile that corresponds to the desired dimensions of the PVC pipe.

After leaving the die, the extruded PVC pipe passes through a cooling system, which may involve air or water cooling. This step solidifies the molten PVC, giving it its final shape and dimensions.

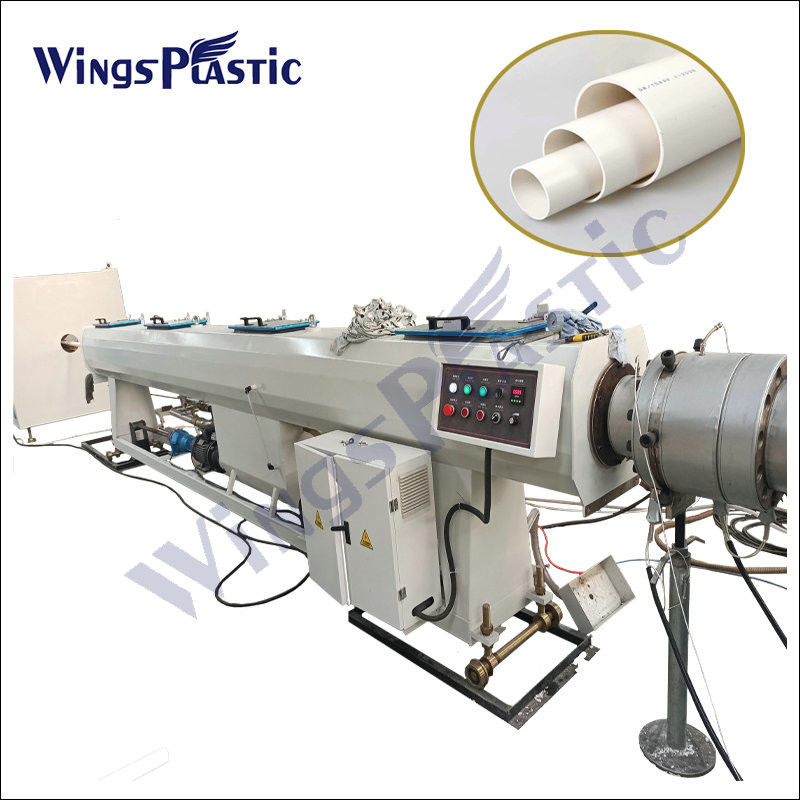

The extruded pipe may pass through a sizing sleeve or vacuum calibration tank to ensure its dimensions are accurate. Control systems monitor and adjust the process parameters to maintain quality.

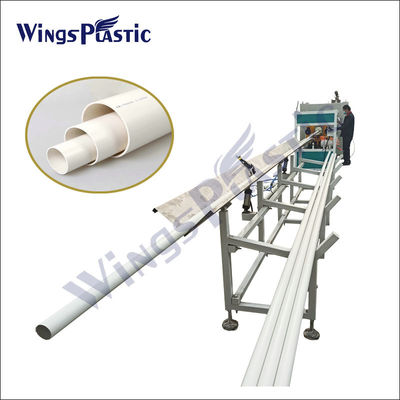

The continuous pipe is then cut into individual lengths by a cutting machine. These cut pieces are often stacked or bundled for further processing or packaging.

It's important to note that the specifics of a PVC pipe extrusion machine can vary depending on the manufacturer and the intended application of the pipes. Additionally, advancements in technology may lead to variations in the design and features of these machines over time.
