Product Details:
|
Screw Design: | Single-screw | Screw Material: | 38CrMoAlA |
---|---|---|---|
Motor: | China Top Brand | Temperature Controller: | Omron Brand |
Contactor: | Siemens Contactor | Inverter: | Delta Brand |
Screw L/D Ratio: | 30:1 | Final Product: | PET Strapping Band |
Highlight: | Pp Strapping Band Extrusion Line,Pet Packing Belt Making Machine,Pet Strapping Band Extruder |
Factory Price Plastic Pet Pp Strapping Band Production Line/ Extrusion Line/ Pet Packing Belt Making Machine

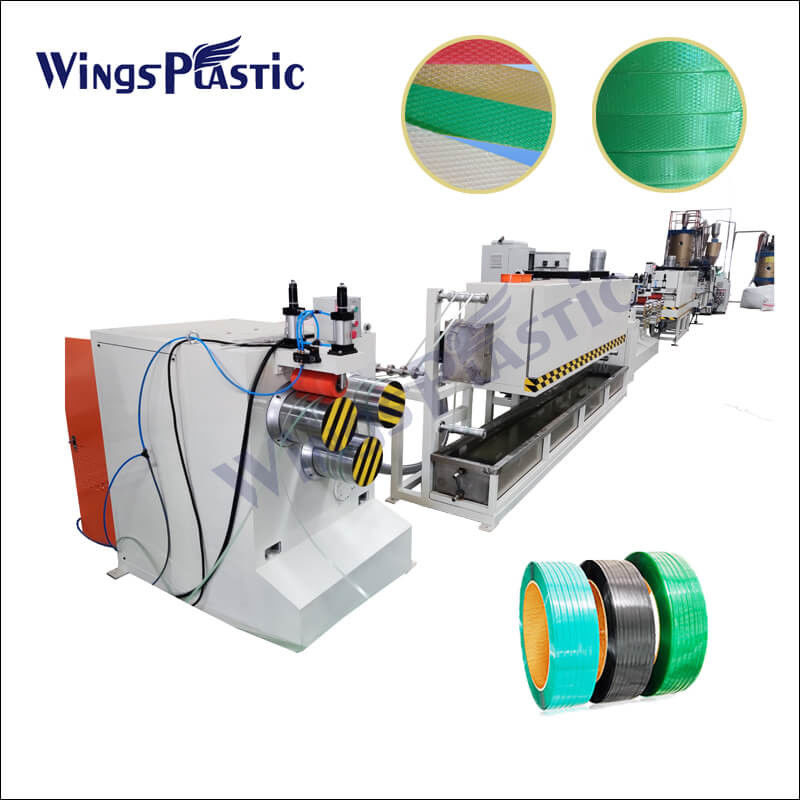

PET Strap Making Machine
This production line is used to product the pet packing band, pet packing strap; adopt the plc control the whole line do the automatic production, it use the melting pump and pressure sensor ensure the production stable and strap quality control the raw material you can use is 100% recycled pet flakes from the waste pet bottles, or virgin material or mixed with each other.
Main Features
1. use 100% recycled pet flakes to reduce the cost
2. good dehumidifier drying system to ensure the material equal dry to produce high quality strapping
3. special design hot forming tensile tank to make good gorming,euqal width,straight strap.
Detailed Information
1. Pry-Drying Tower: Pre-drying the PET flakes crystallization so it can increase the drying speed and line capacity.
2. Dehumidifier Machine: Honeycomb model; Inside made by Stainless steel.

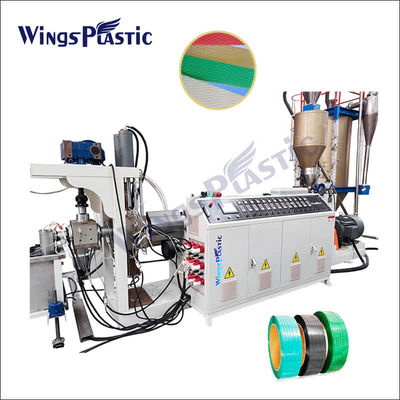

3. Single Screw Extruder: Screw made by 38CrMnAIA with nitriding treatment.
4. Die Mold: Strap shape molding, the size and thickness can adjustable.
5. Haul-off Machine: Motor speed adjust by inverter.

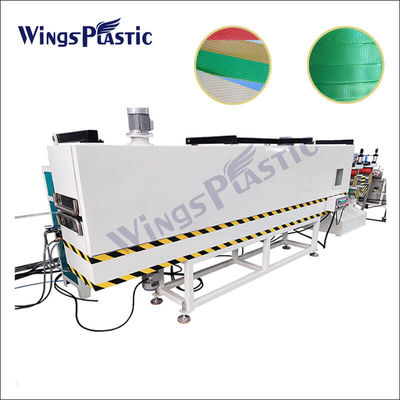

6. Hot Air Circulation Oven Machine: With the air blower cycling the hot air for full and equal heating up.
7. Stress Relief Machine: With cooling forming tank.

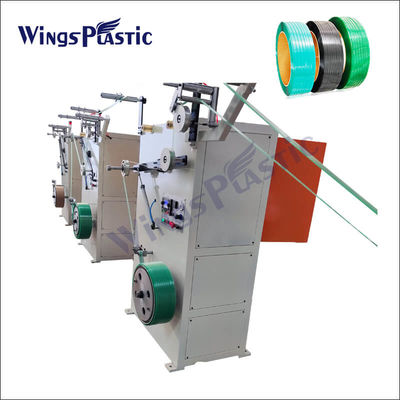

8. Automatic Winder Machine: With length meter to calculate the length an automatic change disc.
