Water Smoking Pipe Production Line SJ65 Extruder Machine Corrugated Pipe Extrusion Line

Single Wall PE Corrugated Pipe Machine
Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling air of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used as wires of up-market cars,cable protection pipe,water smoking pipe and so on.
SJ65/30 Single screw extruder
1.High plasticization rate,uniform melt and continuous production stability. High performance gearbox reducer.long life and low noise.For PVC powder raw material market widely use double screw extruder. but FULLWIN design single screw barrel suitable for PVC powder material,PVC granule material and PP PE EVA granule.Use one machine can cover all these materials.it can help customer save the machine cost.
2.Customer can choose PLC control system and Manual control panel according to their usage habits.

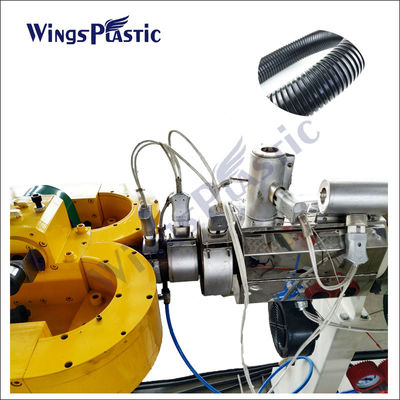

Die head
The rock wool in the heating ring and die head can hold heat,then save about 30% electrical costs for customer.
Mouth mold and Core bar
New design,the core bar and mouth mould fit together,when change size,no like the old design change the core bar and mouth separately,it will be save more than 1 hour for the clean the waste material.

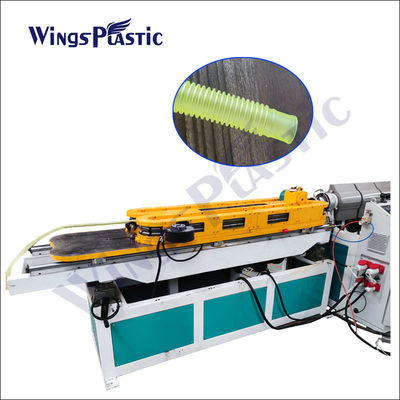

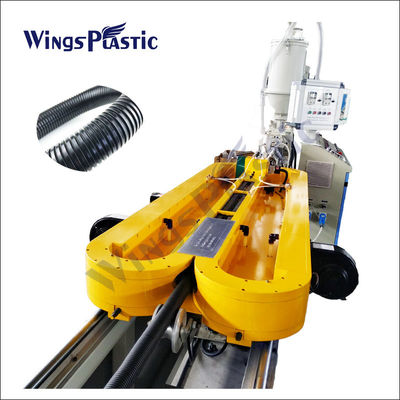

Forming machine and Forming mould
High speed forming speed:20-30 m/min.
The forming machine plate and high speed forming mould use 38CrMoAIA material,has high hardness, high wear resistance.and the forming mould can carve customer logo,can choose double cavity or three cavity in one set mould,when change the size,just up and down forming machine,no need put out all set mould. it can save more long time for customer.
Forming machine adjustment: manual control left and right,Electric control up and down.

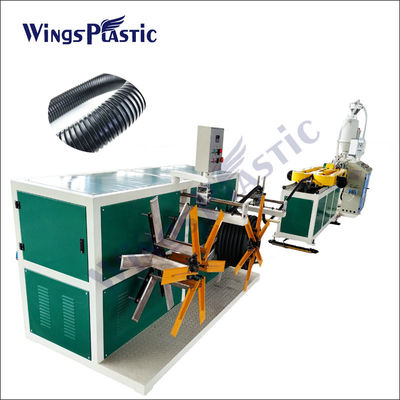

Winding machine.
Automatic wiring device,balance the speed match rewinding speed,help winding machine adjust the speed,when the pipe production slow,will stop rewinding,prevent pipe too tight disconnect.
