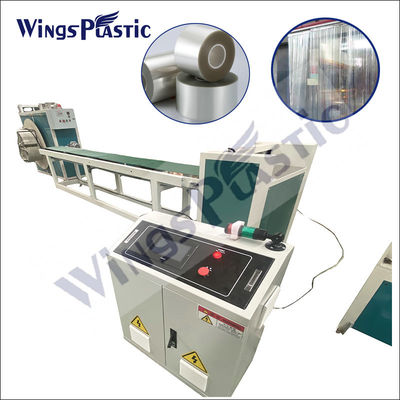

Recycled PS PC PET Plastic Curtain Sheet Small Extruder Machine With PLC Control System

Recycled PS PC PET Plastic Curtain Sheet Small Extruder Machine With PLC Control System
Recycled PS PC PET Plastic Curtain Sheet Small Extruder Machine With PLC Control System Recycled PS PC PET Plastic Curtain Sheet Small Extruder Machine With PLC Control System Recycled PS PC PET Plastic Curtain Sheet Small Extruder Machine With PLC Control System Recycled PS PC PET Plastic Curtain Sheet Small Extruder Machine With PLC Control System

Large Image :  Recycled PS PC PET Plastic Curtain Sheet Small Extruder Machine With PLC Control System

Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Model Number: SJ90/33

Recycled PS PC PET Plastic Curtain Sheet Small Extruder Machine With PLC Control System

Description
Capacity: Customized Screw L/D Ratio: 30-33:1
Thickness: 200-700mm Model: Plastic Sheet Extruder Machine
Cooling Method: Air Cooling Material: PET EVA PS PC Granules

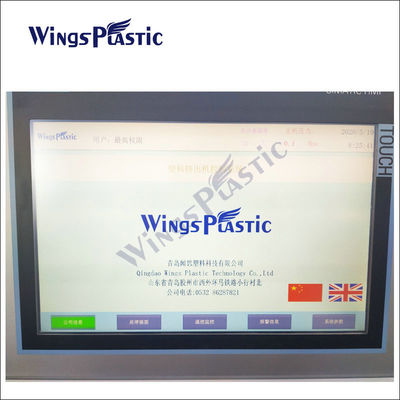

Die Head: T-die Mould Control System: PLC
High Light:

Curtain Sheet Small Extruder Machine

,

Recycled PS Sheet Extruder Machine

,

PLC Plastic Sheet Extruder

Product Description:

Recycled PS PC PET Plastic Curtain Sheet Small Extruder Machine With PLC Control System

The PET (Polyethylene Terephthalate), PS (Polystyrene), PC (Polycarbonate) transparent sheet making machine is a specialized manufacturing equipment used to produce transparent sheets from these plastic materials. Transparent sheets find application in various industries, including packaging, signage, automotive, construction, and more.

The machine line consists of several components and processes, which may vary depending on the specific machine design and manufacturer. Here is a general overview of the key elements involved in the production process:

  1. Raw Material Handling: The raw materials, such as PET, PS, and PC, are typically in the form of resin pellets or granules. These materials are stored in designated containers or silos and then fed into the machine line using an automated feeding system or manual loading by operators.

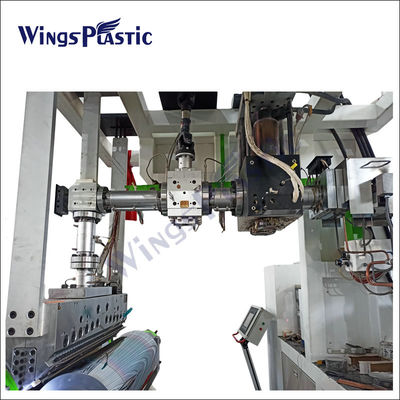

  2. Extrusion: The extrusion process begins with the raw materials being fed into an extruder. The extruder consists of a heated barrel with a screw inside. The screw rotates and conveys the raw material forward while applying heat to melt the plastic.

  3. Melting and Mixing: As the raw material moves through the extruder, it is melted and mixed thoroughly. This process involves the application of heat and the rotation of the screw, ensuring the plastic is uniformly melted and any additives or colorants are evenly dispersed.

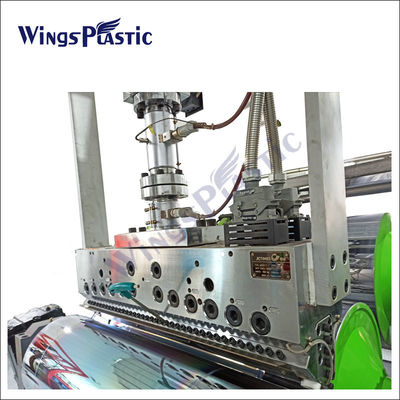

  4. Die and Calibrator: The molten plastic material exits the extruder and passes through a die, which shapes the material into a thin, continuous sheet. The die determines the thickness and width of the transparent sheet. After leaving the die, the sheet passes through a calibrator, which helps to control its dimensions and ensure uniform thickness.

  5. Cooling and Sizing: The hot sheet then enters a cooling system, which can involve water baths, air cooling, or a combination of both. This rapid cooling solidifies the molten plastic into a solid sheet. The sheet is then passed through sizing devices to ensure accurate dimensions and desired flatness.

  6. Haul-off and Winding: The cooled and sized sheet is pulled or hauled off by a set of rollers or belts at a controlled speed. This helps to maintain tension and prevent deformation of the sheet. The sheet is then wound onto a roll or cut into specific lengths, depending on the requirements of the end application.

  7. Optional Post-Processing: Depending on the specific needs, the produced transparent sheets can undergo additional post-processing steps. This may include surface treatment, such as polishing or embossing, to enhance optical clarity or add texture.

  8. Quality Control and Testing: Throughout the production process, quality control measures are implemented to ensure that the transparent sheets meet the required specifications. This may involve visual inspection, dimensional checks, and testing for properties like transparency, clarity, and impact resistance.

  9. Packaging and Storage: The finished transparent sheets are typically packaged and prepared for transportation or storage. They may be rolled, stacked, or packaged in sheets or rolls, ready for distribution to customers.

It's important to note that the specific details and configurations of the transparent sheet making machine may vary among manufacturers. Advanced machine lines may incorporate automation and computer control systems to enhance efficiency, precision, and productivity.

Features:

  • Product Name: Plastic Sheet Extruder Machine
  • Cooling Method: Air Cooling
  • Thickness: 200-700mm
  • Capacity: Customized
  • Heating Power: Customized
  • Material: PET EVA PS PC Granules
  • Key Words: PET PP EVA Sheet Film Manufacturing Machine, PET Plate Making Machine, PET PP EVA Sheet Film Extruder Machine


Technical Parameters:

Item Specification
Product Name PET PP EVA Sheet Film Manufacturing Machine
Model PET Plate Making Machine
Material PET, EVA, PS, PC Granules
Capacity Customized
Cooling Method Air Cooling
Thickness 200-700mm
Die Head T-die Mould
Screw L/D Ratio 30-33:1
Heating Power Customized
Control System PLC
Extrusion Type Sheet


Applications:

Recycled PS PC PET Plastic Curtain Sheet Small Extruder Machine With PLC Control System 0

  1. Strip Curtains: Soft curtain sheets are widely used as strip curtains in industrial and commercial settings. They provide a flexible barrier that allows for easy passage of people, vehicles, or goods while maintaining temperature control and preventing the spread of dust, noise, or contaminants.

  2. Partition Curtains: Soft curtain sheets are used to create partitions or dividers within large spaces. They provide a cost-effective solution for separating areas in warehouses, factories, or exhibition halls, allowing for better organization and utilization of space.

  3. Door Curtains: Soft curtain sheets are installed as door curtains in walk-in coolers, freezers, or cold storage facilities. They help to maintain temperature control, prevent cold air loss, and improve energy efficiency.

  4. Protective Barriers: Soft curtain sheets are used as protective barriers in various environments. They can be used to shield machinery, equipment, or work areas from dust, debris, or hazardous materials. They are also employed as safety barriers in construction sites or manufacturing facilities.

  5. Agricultural Applications: Soft curtain sheets find application in the agricultural sector as greenhouse coverings or protective barriers. They help to regulate temperature and humidity levels, protect crops from external elements, and create controlled environments for optimal growth.

  6. Retail and Commercial Spaces: Soft curtain sheets are employed in retail stores, supermarkets, and restaurants as transparent barriers for refrigerated display cases, food preparation areas, or storage spaces.

  7. Noise Reduction: Soft curtain sheets can be used to reduce noise levels in industrial settings or areas with high noise pollution. They act as sound barriers, helping to create quieter and more comfortable work environments.

  8. Cleanroom Enclosures: Soft curtain sheets are used in cleanroom environments to create controlled spaces that minimize contamination risks. They help to maintain air quality and prevent the entry of particulates or contaminants.

Packing and Shipping:

Packaging and Shipping for Plastic Sheet Extruder Machine
Packaging:
The Plastic Sheet Extruder Machine will be carefully packaged to ensure its safe delivery to the customer. The packaging process includes:
  • Wrapping the machine in protective materials to prevent scratches and damage during transportation.
  • Placing the machine in a sturdy wooden crate to provide extra protection.
  • Securing the machine in the crate with straps and padding to prevent any movement during transit.
  • Labeling the crate with clear and visible markings to identify the contents and handling instructions.
Shipping:
The Plastic Sheet Extruder Machine will be shipped via a reliable and trusted freight carrier to ensure timely and safe delivery. This process includes:
  • Coordinating with the freight carrier to schedule the pickup and delivery of the machine.
  • Providing all necessary documentation and customs clearance for international shipments.
  • Tracking the shipment to ensure its timely arrival.
  • Arranging for unloading and delivery of the machine to the customer's designated location.

We take great care in packaging and shipping our products to ensure they arrive in perfect condition. If there are any issues with the machine upon delivery, please contact us immediately so we can resolve the issue.



FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name is Wings Plastic.
  • Q: What is the model number of this product?
  • A: The model number is SJ90/33.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in Qingdao, China.
  • Q: What type of plastic sheets can be produced by this machine?
  • A: This machine can produce various types of plastic sheets, such as PVC, PET, PP, and PE.
  • Q: What is the maximum sheet width that can be produced by this machine?
  • A: The maximum sheet width is 1200mm.
  • Q: What is the production capacity of this machine?
  • A: The production capacity is up to 400kg/h.
