Product Details:
|
Screw Design: | Single-screw | Screw Material: | 38CrMoAlA |
---|---|---|---|
Motor: | China Top Brand | Temperature Controller: | Omron Brand |
Contactor: | Siemens Contactor | Inverter: | Delta Brand |
Screw L/D Ratio: | 30:1 | Final Product: | PET Strapping Band |
Highlight: | Pp Plastic Packing Belt Extruder,Pet Strap Tape Extruding Machine,Pp Packing Belt Extruding Machine |

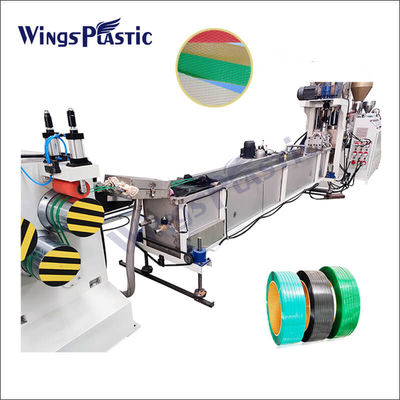

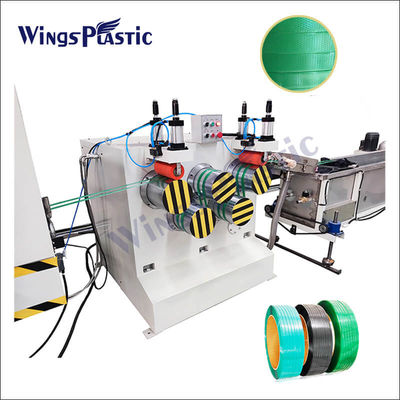

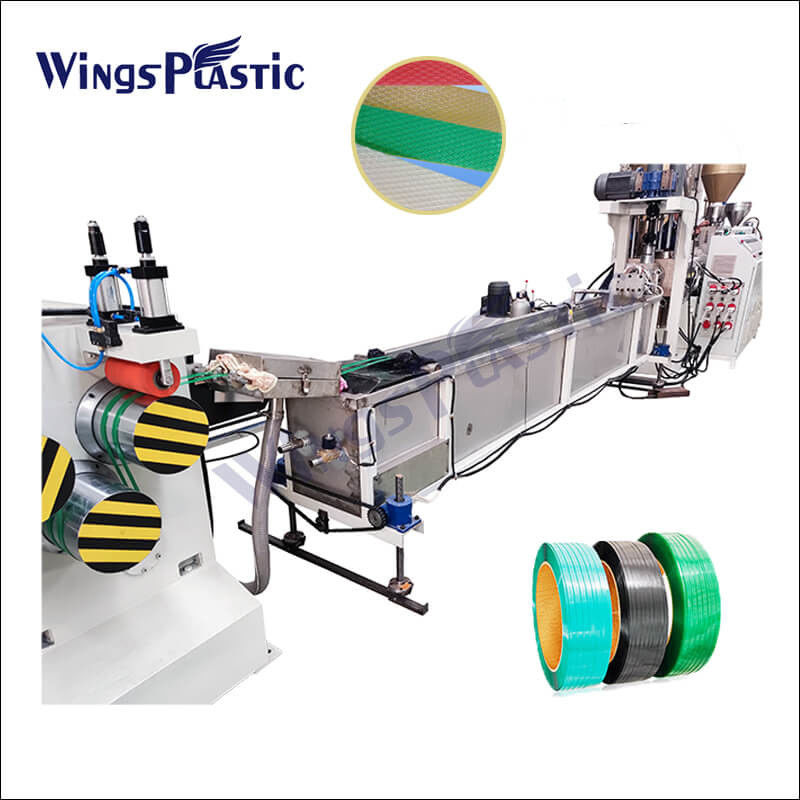

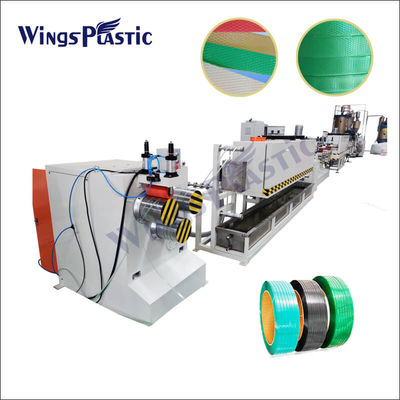

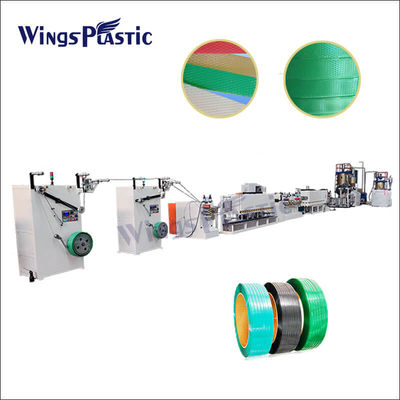

A PET band extrusion machine is a specialized equipment used for the production of PET (Polyethylene terephthalate) bands, also known as polyester straps or packaging straps. These bands are commonly used in various industries for bundling and securing goods during transportation and storage. In the following description, we will outline the production process and highlight five key features of a PET band extrusion machine.
The production process of a PET band extrusion machine begins with the preparation of raw materials. High-quality PET resin pellets are selected based on their strength, flexibility, and durability. These pellets are loaded into the machine's hopper, which feeds them into a heated barrel.
Inside the barrel, the PET resin pellets are melted and mixed with additives, such as stabilizers and colorants, to enhance the mechanical properties and appearance of the final product. The molten PET material is then forced through a specialized die, which determines the shape and dimensions of the extruded band.
As the molten PET material passes through the die, it undergoes a cooling process to solidify and stabilize its structure. This cooling process can be achieved through various methods, such as air cooling or water cooling systems, depending on the design of the extrusion machine. The cooled PET band is then pulled or drawn through a set of rollers to control its thickness and ensure uniformity.
After the extrusion and cooling process, the PET band may undergo additional treatments, such as embossing or printing, to add texture, logos, or identification markings. The band is then wound onto a spool or cut into desired lengths, ready for packaging and distribution.
Key features of a PET band extrusion machine:
1. High-speed production: The machine is capable of extruding PET bands at a rapid rate, ensuring high productivity and shorter lead times for manufacturers.
2. Precise process control: Advanced temperature and pressure control systems ensure accurate regulation of the extrusion process, resulting in PET bands with consistent mechanical properties that meet industry standards.
3. Customization options: The machine allows for easy adjustment of band width and thickness, providing flexibility to meet various packaging requirements and customer preferences.
4. Energy efficiency: The machine incorporates energy-saving technologies, such as efficient heating elements and insulation, to minimize energy consumption during the extrusion process, reducing operating costs.
