Single Wall PVC PE PP Corrugated Tube Making Machine Water Pipe Production Line

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

Single Wall PVC PE PP Corrugated Tube Making Machine Water Pipe Production Line

Single Wall PVC PE PP Corrugated Tube Making Machine Water Pipe Production Line
Single Wall PVC PE PP Corrugated Tube Making Machine Water Pipe Production Line Single Wall PVC PE PP Corrugated Tube Making Machine Water Pipe Production Line Single Wall PVC PE PP Corrugated Tube Making Machine Water Pipe Production Line Single Wall PVC PE PP Corrugated Tube Making Machine Water Pipe Production Line Single Wall PVC PE PP Corrugated Tube Making Machine Water Pipe Production Line

Large Image :  Single Wall PVC PE PP Corrugated Tube Making Machine Water Pipe Production Line

Product Details:
Place of Origin: CHINA
Brand Name: WINGS
Certification: CE ISO
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000-30000 per set
Packaging Details: wooden case, container
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month

Single Wall PVC PE PP Corrugated Tube Making Machine Water Pipe Production Line

Description
Condition: New Screw Material: 38CrMoAlA
Screw L/D Ratio: 33:1 Screw Design: Single-screw
Inverter: Delta Brand Contactor: Siemens Contactor
Output: 200 - 250 Kg/h Raw Material: PP PE Pvc Hdpe
Core Components: Bearing, PLC Final Product: High Speed Single Wall Corrugated Pipe
High Light:

PP Corrugated Tube Making Machine

,

PE Corrugated Tube Making Machine

,

250Kg/h Water Pipe Production Line

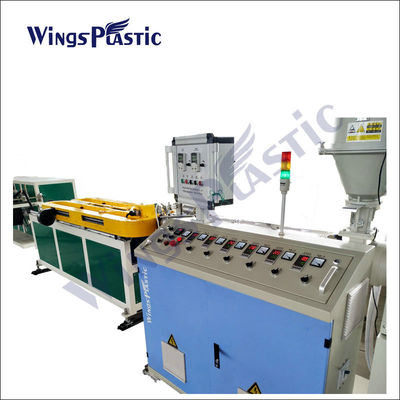

The single wall corrugated pipe extrusion machine consists of several machines in a production line. The main machines typically include:

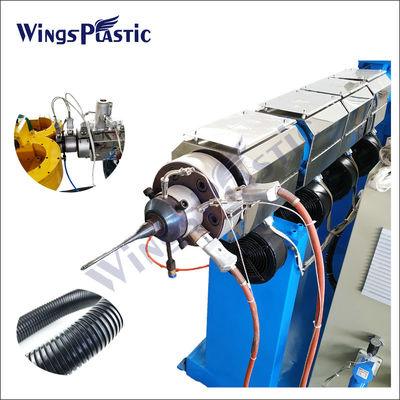

1.Extruder: The extruder is the core machine in the production line. It melts and homogenizes the raw material, usually high-density polyethylene (HDPE), and then forces it through a die to form the desired shape.

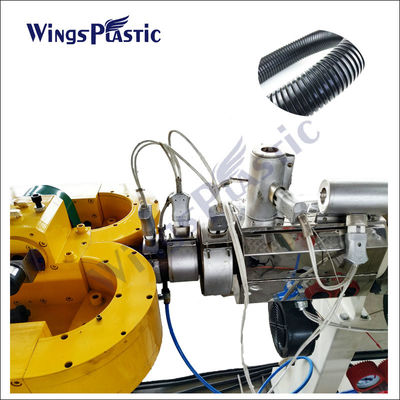

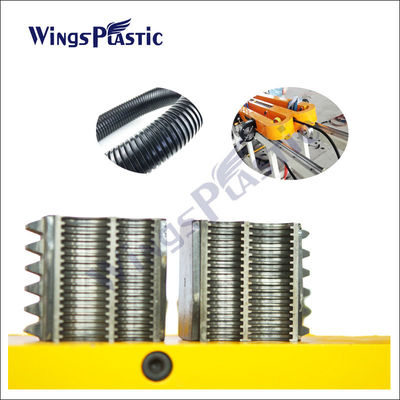

2.Corrugator: The corrugator is responsible for creating the corrugated structure of the pipe. It consists of a set of rotating molds that shape the molten plastic into the desired corrugated profile. The molds are cooled to solidify the plastic, and the formed corrugated pipe is then pulled through the corrugator.
3.Forming Machine: The forming machine is used to shape the corrugated pipe into the desired diameter and length. It may include modules for cutting, cooling, and stacking the pipes.

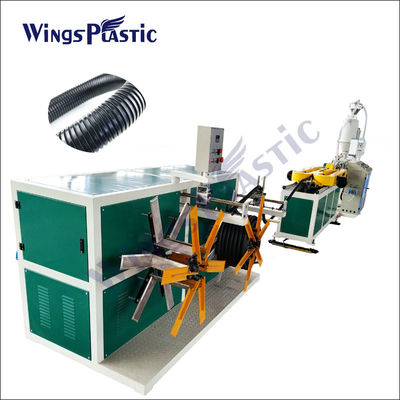

4.Winding Machine: The winding machine is used to coil the finished corrugated pipes onto reels or spools. It facilitates easy storage, transportation, and further processing of the pipes.



The extrusion process of the extruder involves the following steps:
1.Material Preparation: The raw material, usually HDPE pellets, is fed into the hopper of the extruder.
2.Melting and Homogenization: The material is heated and melted inside the extruder barrel. The rotating screw inside the barrel conveys the molten plastic while homogenizing it to ensure consistent properties.
3.Extrusion and Shaping: The molten plastic is forced through a die, which gives it the shape of a continuous pipe. The die is designed to create the desired corrugated structure.
4.Cooling and Solidification: The newly formed corrugated pipe passes through a cooling system, often using water or air, to solidify the plastic.
5.Pulling and Cutting: The corrugated pipe is pulled through the production line by the haul-off machine at a constant speed. It may be cut into desired lengths at this stage.



Advantages of the extrusion machine:
1.High Efficiency: The extrusion machine enables continuous production, resulting in high output rates and improved productivity.
2.Flexibility: The machine can be adjusted to produce single wall corrugated pipes of different sizes, diameters, and lengths, catering to various application requirements.
3.Cost-effectiveness: By automating the production process, the extrusion machine reduces labor costs and minimizes material wastage, making it a cost-effective solution.
4.Quality Control: The machine ensures consistent quality as it maintains precise control over parameters such as temperature, pressure, and speed during the extrusion process.
5.Durability: The extrusion machine is constructed with robust materials, allowing it to withstand the demands of continuous operation and provide long-term reliability.
