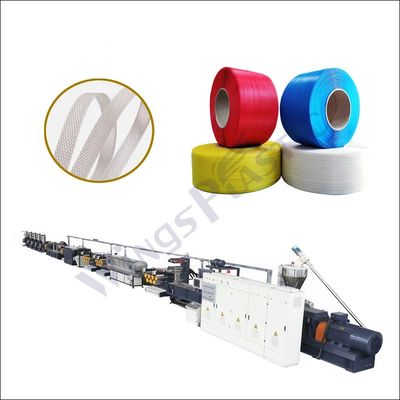

PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed

PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed
PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed
PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed

Large Image :  PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed

Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Model Number: SJ90/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets

PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed

Description
Extrusion Type: Single Screw Warranty Time: 1 Year
Strap Stretching Rate: 4-5.5/1 Inverter: Delta Brand
Speed: 1-5m/min Material: PET Granules PET Flakes
Winding Speed: 10-50 M/min Motor: China Top Brand
High Light:

50M/min PP Strap Band Extruder

,

PET Strap Band Extruder

,

10M/min PET Band Extrusion Machine

High Quality PET PP Strap Band Extrusion Machine Extruder Equipment

Product Description:

1. Good dehumidifier drying system to ensure the material equal dry to produce high quality strapping
2. special design hot forming tensile tank to make good gorming,euqal width,straight strap.

3. Using the recycling bottle slices as raw materials by making them melt directly, which reduces the course of raw material-making

4. With the multi-purpose machine, it can produce PET straps in different specifications directly and doesn"t need to change the mould head

5. The products has the same transparency as made from new polyester slices, but the tensile strength and shock resistance are stronger

6. Low energy consumption, high production capability

7. Easy to operate, saves manpower

Specification:

Model
Capcity (kg/h)
Strap Size
Power(kw)
Mould Cavity
Area(m)
SJ90/33 Duble
150-250
5-22mm
75
1-2
40×4×6
SJ110/33 Double
250-300
5-22mm
90
1-3
45×5×7
SJ120/33 Double
300-400
5-22mm
110
2-4
45×5×7



Production Flow:
Materials feeding -- Pre-crystallization -- Drying -- Feeding -- Extruder melt -- Filter -- Melt metering pumb -- Extrusion die -- Hot water tank --Five Pulling rollers -- Stretching Oven -- Stretching rollers -- Embossing --Annealing treatment oven and water tank -- Three Pulling Rollers -- Winders -- Packing

Applications:

PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed 0

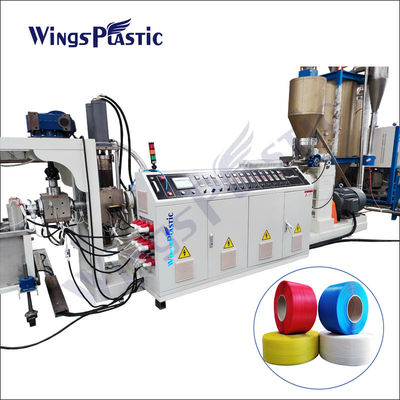

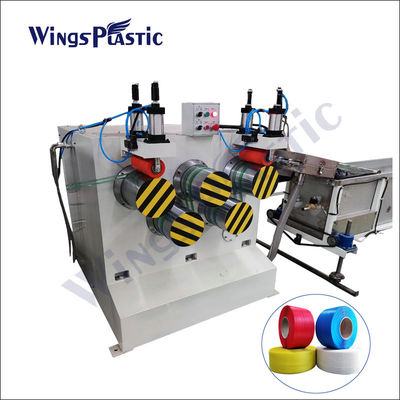

Machine Show:

PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed 1PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed 2PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed 3PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed 4PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed 5PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed 6PET PP Strap Band Extrusion Line Extruder Equipment 10-50 M/min Winding Speed 7Our Serive:
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you byany online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction,details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2.Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3.Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory. All the symbols on the equipment should be in English. Seller is responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time.
Wings will provide long-term technical guide.
