Home ProductsPET Band Extrusion Machine

PLC control pet strap production line pet strap manufacturing machine pet strap making machine

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

PLC control pet strap production line pet strap manufacturing machine pet strap making machine

PLC control pet strap production line pet strap manufacturing machine pet strap making machine
PLC control pet strap production line pet strap manufacturing machine pet strap making machine
PLC control pet strap production line pet strap manufacturing machine pet strap making machine PLC control pet strap production line pet strap manufacturing machine pet strap making machine PLC control pet strap production line pet strap manufacturing machine pet strap making machine PLC control pet strap production line pet strap manufacturing machine pet strap making machine

Large Image :  PLC control pet strap production line pet strap manufacturing machine pet strap making machine

Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Model Number: SJ90/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets

PLC control pet strap production line pet strap manufacturing machine pet strap making machine

Description
Strap Width: 6-20mm Or Customized Capacity: 150-250kg/h
Winding Speed: 10-50 M/min Extrusion Type: Single Screw
Contactor: Siemens Contactor Control System: PLC
Speed: 1-5m/min Screw Speed: 0-100rpm
High Light:

Customized PET Strap Extrusion Machine

,

150kg/H PET Strap Extrusion Machine

,

Single Screw PET Strap Extruder

High Quality PET Strap Tape Strapping Band Extrusion Machine Plant

Product Description:

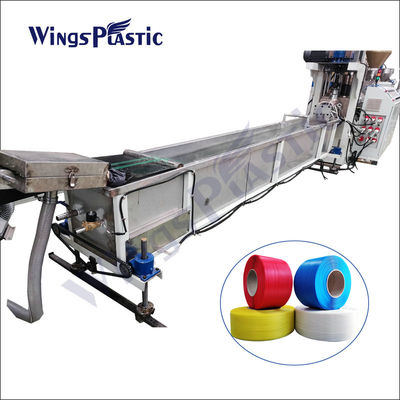

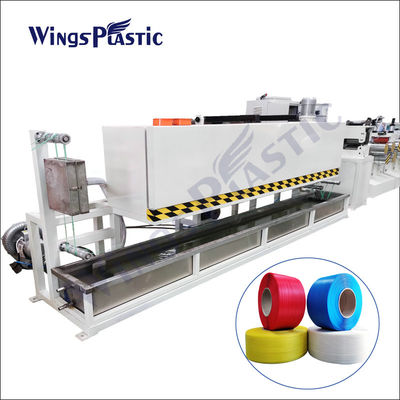

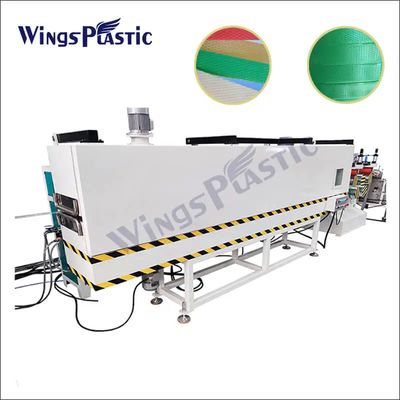

PET Band Extrusion Machine - High Quality Plastic Packing Strap Production Line

The PET Band Extrusion Machine is a state-of-the-art plastic extrusion equipment designed for the production of high-quality plastic packing strap belts. This machine is perfect for various industries including logistics, transportation, and packaging, providing efficient and cost-effective solutions for your strapping needs.

Product Overview

The PET Band Extrusion Machine is a fully automatic strapping machine that can produce straps with a width of 6-20mm or can be customized according to your specific requirements. It is equipped with advanced technology and components, making it a reliable and high-performing machine.


  • PLC control pet strap production line pet strap manufacturing machine pet strap making machine 0

Features:

1.Good dehumidifier drying system to ensure the material equal dry to produce high quality strapping
2.special design hot forming tensile tank to make good gorming,euqal width,straight strap.

3. Using the recycling bottle slices as raw materials by making them melt directly, which reduces the course of raw material-making

4. With the multi-purpose machine, it can produce PET straps in different specifications directly and doesn"t need to change the mould head

5. The products has the same transparency as made from new polyester slices, but the tensile strength and shock resistance are stronger

6.Low energy consumption, high production capability

7. Easy to operate, saves manpower

8.Our machine conform to Europe standard stretching rate about 4-5.5:1,and the width error less than 0.1mm.

Technical Parameters:

This extrusion line consists of
1 WS-90/33 single screw extruder 1 set
2 WS- Filter 1 set
3 100CC-Melt Pumb 1 set
4 Extrusion Die head 1 set
5 Water tank-4000mm 1 set
6 First Pulling roller 1 set
7 Stretching Heating oven 1 set
8 First stretching rollers 1 set
9 Second stretching rollers 1 set
10 Embossing machine 1 set
11 Annealing Heating Oven 1 set
12 Second Pulling roller 1 set
13 Winding Unit 3 sets
14 Mold temperature machine 2 sets
15 PLC control units 1 set
16 PET Dehumidification drying unit 1 set

Applications:

PLC control pet strap production line pet strap manufacturing machine pet strap making machine 1



Our Service:

Service Before Sale

1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you byany online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction,details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2.Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3.Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory. All the symbols on the equipment should be in English. Seller is responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time.
Wings will provide long-term technical guide.


FAQ:

Q:Are you machinery factory or trading company?
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: How can we visit your company and machines?
A : Our factory is in Jiaoxi Town, Qingdao City, Shandong Province, China. About 0.5 hours from Qingdao Jiaodong International ariport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc

PLC control pet strap production line pet strap manufacturing machine pet strap making machine 2
