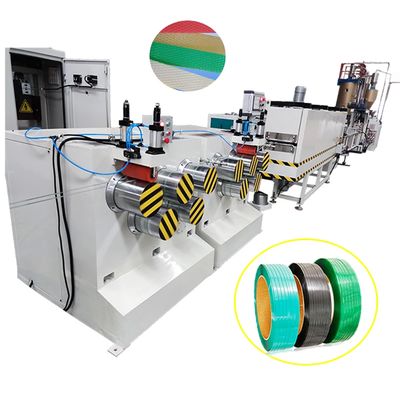

High Speed Package PET Band Extruder Machine Equipment 6-20mm

High Speed Package PET Band Extruder Machine Equipment 6-20mm
High Speed Package PET Band Extruder Machine Equipment 6-20mm
High Speed Package PET Band Extruder Machine Equipment 6-20mm High Speed Package PET Band Extruder Machine Equipment 6-20mm High Speed Package PET Band Extruder Machine Equipment 6-20mm High Speed Package PET Band Extruder Machine Equipment 6-20mm

Large Image :  High Speed Package PET Band Extruder Machine Equipment 6-20mm

Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Model Number: SJ90/33

High Speed Package PET Band Extruder Machine Equipment 6-20mm

Description
Screw Speed: 0-100rpm Winding Speed: 10-50 M/min
Speed: 1-5m/min Capacity: 150-250kg/h
Control System: PLC Contactor: Siemens Contactor
Extrusion Type: Single Screw Strap Stretching Rate: 4-5.5/1
High Light:

Package PET Band Extruder Machine

,

20mm PET Band Extruder Machine

,

250kg/h PET Strap Extrusion Line

6-20mm High Speed PET Package Strap Belt Extruder Machine Equipment

Product Description:

Advantage of PP PET stripping tape making machine/PP PET strapping band production line

1.Good dehumidifier drying system to ensure the material equal dry to produce high quality strapping
2.special design hot forming tensile tank to make good gorming,euqal width,straight strap.

3. Using the recycling bottle slices as raw materials by making them melt directly, which reduces the course of raw material-making

4. With the multi-purpose machine, it can produce PET straps in different specifications directly and doesn"t need to change the mould head

5. The products has the same transparency as made from new polyester slices, but the tensile strength and shock resistance are stronger

6.Low energy consumption, high production capability

7. Easy to operate, saves manpower

8.Number of strap:one line or two lines,Band width: 5mm-22mm,Thickness: 0.5mm-1.5mm

9.Workers: 2 -3 workers per shift, 12 hours/shift.
10.Our PET strap machine could meet over 4-5.5:1 stretching rate, and 140m/min speed extrusion.


PP PET packing strap extrusion machine include:
1, The raw material will be dried by the dehumidifier, and the below 40 dew point make the material humidity less than 40PPM, and condensation polymerization(this is for PET straping line);
2, The conveyor of the raw is in a enclosed and circular mode, and without contacting with the air, in order to made perfect effect of drying;
3, Special designed extruder screw for PP/PET production, bear the better performance of material separating and mixing. Automatic material feeding provide the smooth environment for the PP/PET strap production.
4, Special designed extrusion die & mould; And the improved screen changer realize non-stop screen changing, and without material leakage; Wedo also equitp the melting pump to ensure the packing strap material out more everage.
5, Water tank cooling the PET strap band. The steady water temperature enhance of the molecular tension strength(better equip water chiller);
6, Heating cabinet is used for thermal annealing, relief the band distortion after long-time storage;
7, Automatic winder, easy operation; We provide our worldwide customer the turn-key project. We will assist our customer from the installation to the final production of this line.

High Speed Package PET Band Extruder Machine Equipment 6-20mm 0

Production Flow:
Materials feeding -- Pre-crystallization -- Drying -- Feeding -- Extruder melt -- Filter -- Melt metering pumb -- Extrusion die -- Hot water tank --Five Pulling rollers -- Stretching Oven -- Stretching rollers -- Embossing --Annealing treatment oven and water tank -- Three Pulling Rollers -- Winders -- Packing




Specification:
Name Strap Cavities Motor Screw Diameter Screw L:D Output Screw Speed
SJ90/33 1-2 Cavities 75kw 90mm 33:1 150-250kg/h 72RPM
SJ100/33 1-3 Cavities 90kw 100mm 33:1 250-300kg/h 72RPM
SJ120/33 2-4 Cavities 110kw 120mm 33:1 300-400kg/h 72RPM



Technical Parameters:



Model SJ-90× 33 Embossing roll line speed(m/min) 12-120
Extrusion capacity(kg/h) 250kg/h Size calibration tank length(mm) 4000
Die mode Single or double Cooling medium water
Die heating power(kw) 4 Water injection motor power(kw) Water
Cooling mode Immersed 3rd hauling-off motor power(kw) 0.55
First hauling-off power(kw) 2.2 Hauling speed(m/min) 1.1
Hauling-off speed(m/min) 3-30 Coiler motor power(kw) 12-120
bellows motor power(kw) 1.1 Coiler linear(m/min) 1.1
Bellows heating power(kw) 12 Number of bobbin disk(pcs) 12-120
Second hauling-off power(kw) 2.2 Specification(mm) 2
Hauling speed(m/min) 12-120   10-19
Weight(kg) 4500 Occupation area

1.5×1.5





Applications:



High Speed Package PET Band Extruder Machine Equipment 6-20mm 1

Service Before Sale

1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you byany online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction,details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2.Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3.Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory. All the symbols on the equipment should be in English. Seller is responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time.
Wings will provide long-term technical guide.

FAQ:



Q:Are you machinery factory or trading company?
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: How can we visit your company and machines?
A : Our factory is in Jiaoxi Town, Qingdao City, Shandong Province, China. About 0.5 hours from Qingdao Jiaodong International ariport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc

High Speed Package PET Band Extruder Machine Equipment 6-20mm 2
