High Speed Corrugated Pipe Plastic Tube Extrusion Machine 30m Per Minute

High Speed Corrugated Pipe Plastic Tube Extrusion Machine 30m Per Minute
High Speed Corrugated Pipe Plastic Tube Extrusion Machine 30m Per Minute High Speed Corrugated Pipe Plastic Tube Extrusion Machine 30m Per Minute High Speed Corrugated Pipe Plastic Tube Extrusion Machine 30m Per Minute High Speed Corrugated Pipe Plastic Tube Extrusion Machine 30m Per Minute

Large Image :  High Speed Corrugated Pipe Plastic Tube Extrusion Machine 30m Per Minute

Product Details:
Place of Origin: CHINA
Brand Name: WINGS
Certification: CE ISO
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000-30000 per set
Packaging Details: wooden case, container
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month

High Speed Corrugated Pipe Plastic Tube Extrusion Machine 30m Per Minute

Description
Condition: New Screw Material: 38CrMoAlA
Screw L/D Ratio: 33:1 Screw Design: Single-screw
Inverter: Delta Brand Contactor: Siemens Contactor
Output: 200 - 250 Kg/h Raw Material: PP PE Pvc Hdpe
Core Components: Bearing, PLC Final Product: High Speed Single Wall Corrugated Pipe
High Light:

Plastic Tube Extrusion Machine 30m/min

,

ISO Corrugated Pipe Extrusion Machine

,

250Kg/h Plastic Tube Extrusion Machine

30m Per Minute High Speed Corrugated Pipe Plastic Tube Extrusion Making Machine

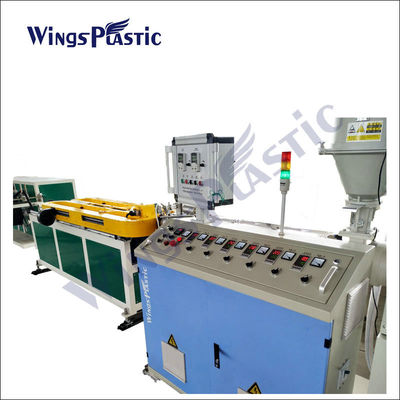

The single wall corrugated pipe machine is a specialized manufacturing equipment used for producing single-layered corrugated pipes. This machine consists of several essential components, including an extruder, corrugator, cooling system, cutting unit, and control panel.

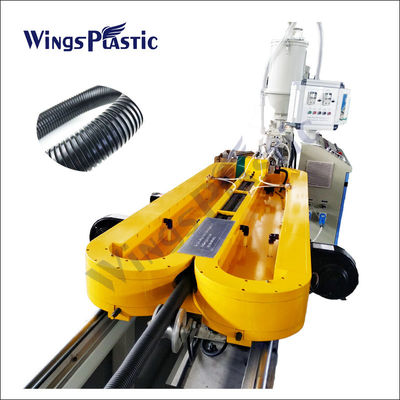

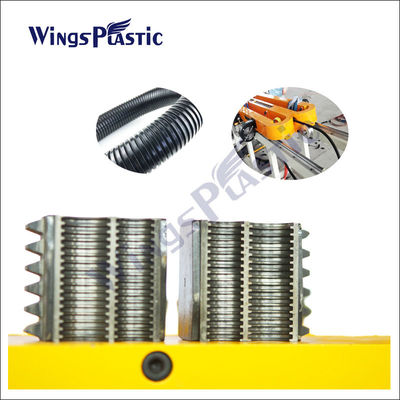

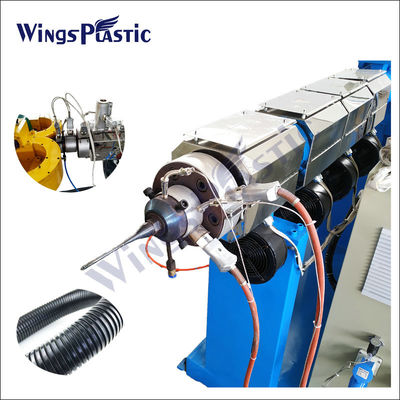

The extruder is responsible for melting and conveying the plastic material, usually high-density polyethylene (HDPE), into a continuous molten stream. The molten plastic is then fed into the corrugator, which forms the distinctive corrugated shape on the pipe by utilizing a set of specially designed molds. The corrugator also ensures uniformity and precision in the corrugation process.


After corrugation, the pipe undergoes a cooling process through the cooling system, which helps solidify and stabilize the shape of the corrugated pipe. Once cooled, the pipe is cut to the desired length by the cutting unit, which may incorporate a saw or a guillotine cutter. Finally, the control panel enables operators to monitor and adjust various parameters, such as extrusion speed, temperature, and cutting length.


The single wall corrugated pipe machine offers several advantages. First, it allows for the efficient and continuous production of corrugated pipes with high precision and consistency. The machine ensures uniform corrugation and accurate dimensions, resulting in pipes that meet strict quality standards. Additionally, the machine enables the production of pipes with various diameters and wall thicknesses, offering flexibility to meet different application requirements.


Furthermore, the single wall corrugated pipe machine is known for its high production speed, enabling manufacturers to meet large-scale demand and achieve high productivity. The automated nature of the machine reduces labor costs and ensures consistent production quality. Moreover, the pipes produced by this machine exhibit excellent flexibility, durability, and resistance to chemicals, making them suitable for various applications such as drainage systems, cable protection, and agricultural irrigation.

High Speed Corrugated Pipe Plastic Tube Extrusion Machine 30m Per Minute 0
