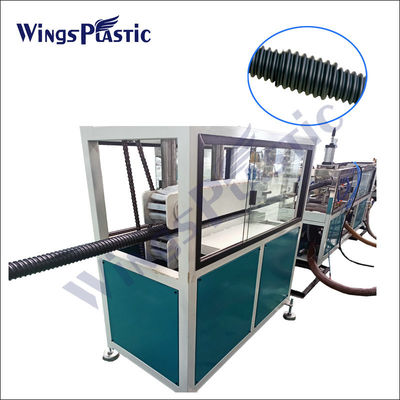

Plastic HDPE Prestressed Corrugated Pipe Extruder Machine Carbon Spiral Pipe Machine

Large Image : Plastic HDPE Prestressed Corrugated Pipe Extruder Machine Carbon Spiral Pipe Machine

Product Details:

Place of Origin:	Qingdao China
Brand Name:	Wings Plastic
Model Number:	SJ50/33

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden Box or Film Packing
Delivery Time:	60 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 sets

Contact Now

Plastic HDPE Prestressed Corrugated Pipe Extruder Machine Carbon Spiral Pipe Machine

Description

Voltage:	220V/380V/415V/440V/480V	HeatingPower:	3kw
CoolingMode:	Air Cooling	Material:	PE New Graunles Or Recycled Granules
Pipe Type:	Single Layer Or Double Layers	ControlSystem:	PLC
MotorPower:	105kw	ExtruderSpeed:	0-74rpm
High Light:	Prestressed Corrugated Pipe Extruder Machine , HDPE Prestressed Corrugated Pipe Extruder , Plastic Carbon Spiral Pipe Machine

Product Description:

Plastic HDPE prestressed corrugated pipe manufacturing machine price HDPE Plastic Carbon Spiral Pipe Machine

hdpe pipe machine hdpe corrugated pipe machine plastic manufacturing machine

The HDPE (High-Density Polyethylene) prestressed plastic corrugated spiral pipe production machine line is a manufacturing system used to produce corrugated spiral pipes made from HDPE materials. These pipes are commonly used in various applications, including drainage systems, sewage systems, agricultural irrigation, and telecommunications.

The production machine line typically consists of several components and processes, which may vary depending on the specific manufacturer and design. However, the following description provides a general overview of the key elements involved in the production process:

1. Raw Material Handling: The HDPE material, usually in the form of granules or pellets, is stored in a designated area. It is then fed into the production line through an automated feeding system or manually by operators.

2. Extruder: The HDPE material is melted and plasticized in an extruder. The extruder consists of a heated barrel with a screw inside. The screw rotates and pushes the molten HDPE material forward, creating pressure and heat to melt the plastic.

3. Die Head: The molten HDPE material is forced through a specially designed die head. The die head forms the shape of the corrugated spiral pipe, including the desired corrugation profile and pipe diameter.

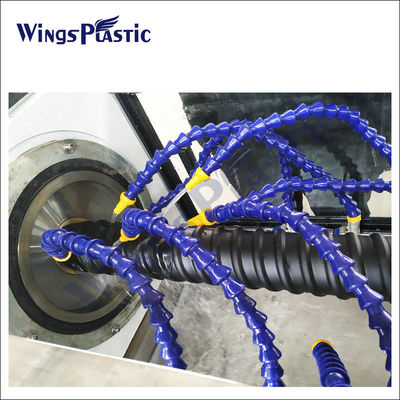

4. Forming and Cooling: After exiting the die head, the molten HDPE material passes through a forming device, which shapes it into a spiral form. As the pipe takes shape, it is cooled using a cooling system, which may involve water tanks or air cooling methods.

5. Cutting and Stacking: Once the desired length of the corrugated spiral pipe is achieved, it is cut to size using a cutting device, such as a saw or guillotine cutter. The cut pipes are then stacked or collected for further processing or packaging.

6. Optional Post-Processing: Depending on the specific requirements, the produced pipes may undergo additional post-processing steps. These can include surface treatment, such as printing or marking, or further finishing operations like edge trimming or chamfering.

7. Quality Control and Testing: Throughout the production process, quality control measures are implemented to ensure that the pipes meet the required specifications. This may involve visual inspection, dimensional checks, and testing for mechanical properties, such as tensile strength or pressure resistance.

8. Packaging and Storage: The finished corrugated spiral pipes are typically packaged and prepared for transportation or storage.They may be bundled, wrapped, or placed on pallets for easy handling and distribution.

It's important to note that the specific details and configurations of the machine line may vary among manufacturers. Advanced production lines may incorporate automation and computer control systems to enhance efficiency, accuracy, and productivity.

Technical Parameters:

No.	Equipment Name	Quantity
1.	Vacuum Feeder and Hopper Dryer	1set
2.	Single Screw Plastic Extruder	1set
3.	Extrusion Mold & Cooper Sleeve	1 set or more
4.	Forming Machine	1set
5.	Cutting Machine	1set
6.	Winding Machine	1set

1.The production line will customized according to customer's pipe diameter,for round pipe 40-150mm is one set of production line,50-200mm is another one set of production line.2.If you want to produce the round pipe and flat pipe,you can tell us the size of your pipe.

Applications:

Our Service
Service Before Sale

1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you byany online chatting

tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )

2. Professionally and patiently introduction,details pictures and working video to show machine
Service On Sale

1. Test every machine and inspect the machine seriously.

2.Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.

3.Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all

original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your

airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.

Service After Sale

1. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help

you solve the problem, or dispatch worker to your factory. All the symbols on the equipment should be in English. Seller is

responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time.

Wings will provide long-term technical guide.

FAQ:

Q: What is the brand name of this product?
A: The brand name of this product is Wings Plastic.
Q: What is the model number of this product?
A: The model number of this product is SJ50/33.
Q: Where is this product manufactured?
A: This product is manufactured in Qingdao, China.
Q: What materials can this machine extrude?
A: This machine can extrude corrugated pipes made of various materials such as PVC, HDPE, and PP.
Q: What is the production capacity of this machine?
A: The production capacity of this machine is 100-150kg/h.
