Product Details:
|
| Condition: | New | Screw Material: | 38CrMoAlA |
|---|---|---|---|
| Screw L/D Ratio: | 33:1 | Screw Design: | Single-screw |
| Inverter: | Delta Brand | Contactor: | Siemens Contactor |
| Output: | 200 - 250 Kg/h | Raw Material: | PP PE Pvc Hdpe |
| Core Components: | Bearing, PLC | Final Product: | High Speed Single Wall Corrugated Pipe |
| High Light: | PP PE Pipe Extrusion Production Line,Plastic PVC Pipe Extrusion Production Line |
||

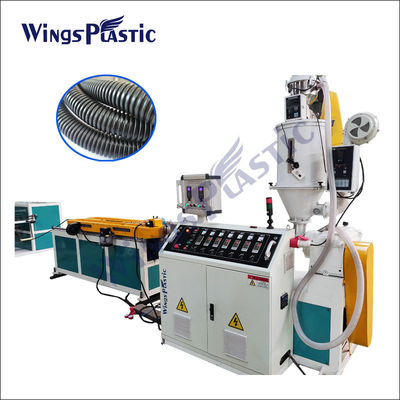

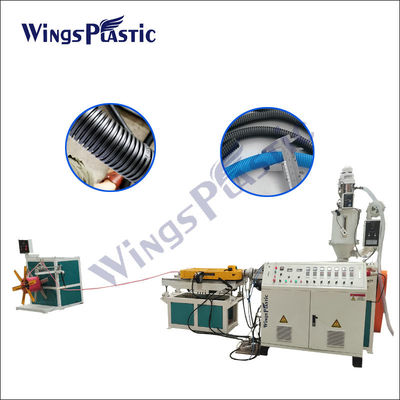

Plastic Single-wall Corrugated Pipe Extrusion Line
This production line can be used to produce corrugated pipes of PE, PP, EVA, PVC, EVA continuously, as well as PA corrugated pipes. Plastic single wall corrugated pipes have features of high temperature resistance, corrosion and abrasion resistance, high intensity and good flexibility, etc. They are widely used in fields of auto wire harness, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lantern wires, tubes of air conditioner and washing machine, etc.
Machine Show
1. 38GrMoALA alloy steel under nitriding treatment . Depth of screw:0.4-0.6mm hardness: HV>740. Depth of barrel:0.5—0.7mm hardness: HV>940
Extrusion capacity: 60kg/h, Main Electrical Parts: Temperature Controller: OMRON, Contactor: SIEMENS

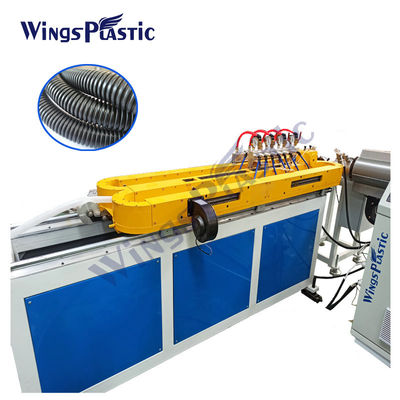

2. Plastic Corrugated Pipe Molding Machine, Machine Size:2300*650*1150mm, Motor Power:3-4kw, Pipe Diameter:10-58mm
production Speed:5-22m/min, Number of Mould:46-72pairs

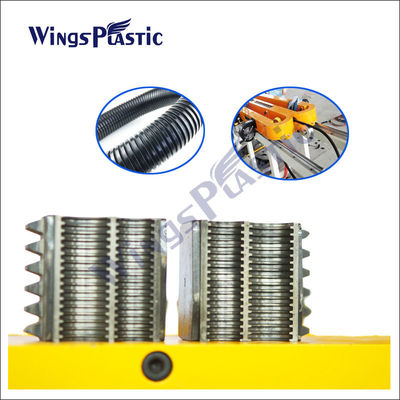

3. Mold size:36*56.5*75mm, Length of Molds:4070mm, Cooling mode:water cool, Control Mode:Touch screen.
Feature:Adopted with infrared sensor synchronization, and controlled by PLC, this equipment is drived by servo motor with an advantages
in easy to operate, winding smooth and high benefits.
