High Speed Water Cooling Plastic Single Wall Corrugated Pipe Production Machine Line

High Speed Water Cooling Plastic Single Wall Corrugated Pipe Production Machine Line
High Speed Water Cooling Plastic Single Wall Corrugated Pipe Production Machine Line High Speed Water Cooling Plastic Single Wall Corrugated Pipe Production Machine Line High Speed Water Cooling Plastic Single Wall Corrugated Pipe Production Machine Line High Speed Water Cooling Plastic Single Wall Corrugated Pipe Production Machine Line

Large Image :  High Speed Water Cooling Plastic Single Wall Corrugated Pipe Production Machine Line

Product Details:
Place of Origin: CHINA
Brand Name: WINGS
Certification: CE ISO
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000-30000 per set
Packaging Details: wooden case, container
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month

High Speed Water Cooling Plastic Single Wall Corrugated Pipe Production Machine Line

Description
Condition: New Screw Material: 38CrMoAlA
Screw L/D Ratio: 33:1 Screw Design: Single-screw
Inverter: Delta Brand Contactor: Siemens Contactor
Output: 200 - 250 Kg/h Raw Material: PP PE Pvc Hdpe
Core Components: Bearing, PLC Final Product: High Speed Single Wall Corrugated Pipe
High Light:

High Speed Production Machine Line

,

Water Cooling Production Machine Line

,

Single Wall Production Machine Line

single wall corrugated pipe machine
High speed single wall corrugated pipe making machinery for electrical wire conduit pipe tube
Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling air of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used as wires of up-market cars,cable protection pipe,water smoking pipe and so on.
Production speed :20-30m/min.



SJ65/30 Single screw extruder
1.High plasticization rate,uniform melt and continuous production stability. High performance gearbox reducer.
Long life and low noise.For PVC powder raw material market widely use double screw extruder.
Single screw barrel suitable for PVC powder material,PVC granule material and PP PE EVA granule.Use one machine can cover all these materials.it can help customer save the machine cost.
2.Customer can choose PLC control system and Manual control panel according to their usage habits.

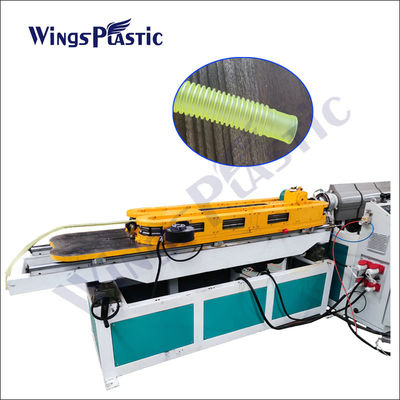

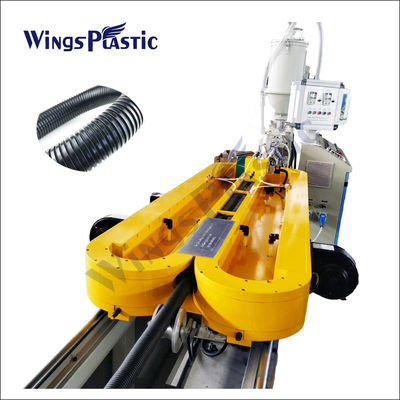

Forming machine and Forming mould
High speed forming speed:20-30 m/min.
The forming machine plate and high speed forming mould use 38CrMoAIA material,has high hardness, high wear resistance.and the forming mould can carve customer logo,can choose double cavity or three cavity in one set mould,when change the size,just up and down forming machine,no need put out all set mould. it can save more long time for customer.
Forming machine adjustment:manual control left and right,Electric control up and down.
