Plastic Corrugated Pipe Extruder Machine For The Manufacture Of The Corrugated Plastic Pipe Machine

Plastic Corrugated Pipe Extruder Machine For The Manufacture Of The Corrugated Plastic Pipe Machine
Plastic Corrugated Pipe Extruder Machine For The Manufacture Of The Corrugated Plastic Pipe Machine Plastic Corrugated Pipe Extruder Machine For The Manufacture Of The Corrugated Plastic Pipe Machine Plastic Corrugated Pipe Extruder Machine For The Manufacture Of The Corrugated Plastic Pipe Machine

Large Image :  Plastic Corrugated Pipe Extruder Machine For The Manufacture Of The Corrugated Plastic Pipe Machine

Product Details:
Place of Origin: CHINA
Brand Name: WINGS
Certification: CE ISO
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000-30000 per set
Packaging Details: wooden case, container
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month

Plastic Corrugated Pipe Extruder Machine For The Manufacture Of The Corrugated Plastic Pipe Machine

Description
Condition: New Screw Material: 38CrMoAlA
Screw L/D Ratio: 33:1 Screw Design: Single-screw
Inverter: Delta Brand Contactor: Siemens Contactor
Output: 200 - 250 Kg/h Raw Material: PP PE Pvc Hdpe
Core Components: Bearing, PLC Final Product: High Speed Single Wall Corrugated Pipe

Product Introduction
Plastic single wall corrugated pipes have features of high temperature resistance, corrosion and abrasion resiatance,high intensity and good flexibility,etc.they are widely used in fields of auto wire harness, electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lantern wires,tubes of air conditioner and washing machine,etc. Applications:plastic single wall corrugated pipe making machine can produce electrical thread-passing pipes,circuit of machine tool,protective pipe of lamps,water pipes in conditioner,washing machine, bathroom, etc.

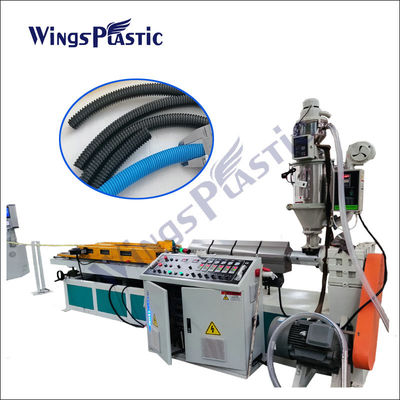

Single wall corrugated pipe extrusion line
Plastic single wall corrugated pipe production line meticulously developed by our company, through the gear drive module,water cooling in the water trough of the forming machine,the products are air-cooled,so that production of the bellows molding speed,uniform corrugated shape, smooth inside and outside the wall. The production speed is 8-12 meters per minute.

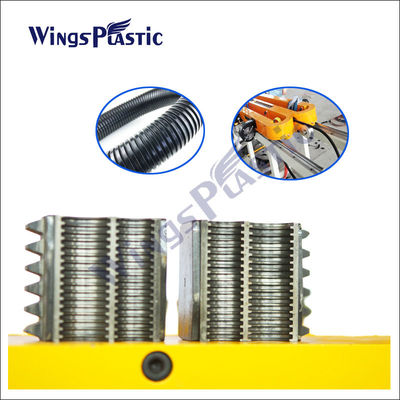

The core bar and mouth mould
New design,the core bar and mouth mould fit together,when change size,no lile the old design change the core bar and mouthe separately,it will be save more than 1h for the clean the waste material.
1.One mould with two or three different sizes. When change size just up and down move forming machine. No need to unmount and reinstall. So will save more than two hours.
2.Can carve customer logo in the mould,replace the jet printer.

Plastic Corrugated Pipe Extruder Machine For The Manufacture Of The Corrugated Plastic Pipe Machine 0
