Pvc Fiber Enhancing Soft Pipe Extrusion Line Pvc Fiber Reinforced Pipe Making Machine

Large Image : Pvc Fiber Enhancing Soft Pipe Extrusion Line Pvc Fiber Reinforced Pipe Making Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	WINGS
Certification:	CE ISO
Model Number:	SJ

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 15000-25000 per set
Packaging Details:	woode case and container
Delivery Time:	30 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	20 sets per month

Contact Now

Pvc Fiber Enhancing Soft Pipe Extrusion Line Pvc Fiber Reinforced Pipe Making Machine

Description

Screw Design:	Single-screw	Screw L/D Ratio:	30:1
Plastic Processed:	Pvc	Key Selling Points:	High Productivity
Warranty:	1-2 Years	Screw Material:	38CrMoAlA
Screw Diameter (mm):	65	Screw Speed (rpm):	50
Highlight:	Extrusion Line Pipe Making Machine , Fiber Enhancing Pipe Making Machine , Pvc Soft Pipe Making Machine

Product Description
PVC fiber-reinforced hose,also known as PVC grid pipe,commonly known as plastic snake skin pipe,is suitable for pressure or corrosive gas and liquid transportation,widely used in machinery,coal mine,petroleum,chemical industry,agricultural irrigation,construction,civil(solar water heater,gas tank) and other fields.It is also widely used for watering.

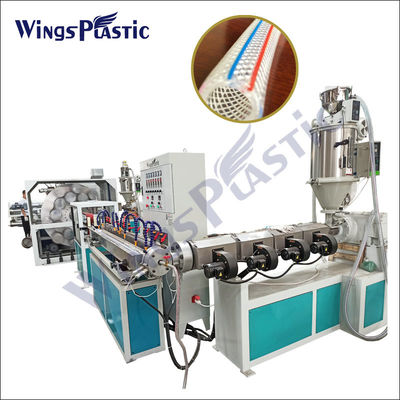

Production Line
SJ65/28 Single screw extruder
Advantages: High plasticizing rate; melt uniformity; continuous and steadily production; High performance with gearbox; High torque; Long life; Low noise
SJ25/25 Single Screw Extruder
Barrel material:38 CrMoAIA
Type of heating:ceramic heating collar

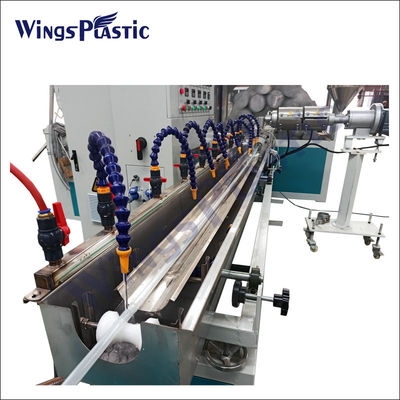

Spray Cooling Water Tank
The spraying tank upper section is made of stainless steel,it has strong corrosion resistance and high hardness,The cooling tank has sprinkling device,using circulating water can save cost.
Hauling off machine
Haul-off speed:0.8-16m/min

Pvc Fiber Enhancing Soft Pipe Extrusion Line Pvc Fiber Reinforced Pipe Making Machine 0

Tag:

Conical Twin Screw Pvc Pipe Machine,

PVC Pipe Extrusion Line,

PVC Pipe Extruder Machine

Contact Details

Qingdao Wings Plastic Technology Co.,Ltd

Contact Person: Mr. Wang

Tel: +86 15092066953

Fax: 86--532-87252290
