Medical Corrugated Tube Extrusion Machine/ Double Layer Single Wall Corrugated Pipe Machine

Medical Corrugated Tube Extrusion Machine/ Double Layer Single Wall Corrugated Pipe Machine
Medical Corrugated Tube Extrusion Machine/ Double Layer Single Wall Corrugated Pipe Machine Medical Corrugated Tube Extrusion Machine/ Double Layer Single Wall Corrugated Pipe Machine Medical Corrugated Tube Extrusion Machine/ Double Layer Single Wall Corrugated Pipe Machine

Large Image :  Medical Corrugated Tube Extrusion Machine/ Double Layer Single Wall Corrugated Pipe Machine

Product Details:
Place of Origin: CHINA
Brand Name: WINGS
Certification: CE ISO
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000-30000 per set
Packaging Details: wooden case, container
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month

Medical Corrugated Tube Extrusion Machine/ Double Layer Single Wall Corrugated Pipe Machine

Description
Condition: New Screw Material: 38CrMoAlA
Screw L/D Ratio: 33:1 Screw Design: Single-screw
Inverter: Delta Brand Contactor: Siemens Contactor
Output: 200 - 250 Kg/h Raw Material: PP PE Pvc Hdpe
Core Components: Bearing, PLC Final Product: High Speed Single Wall Corrugated Pipe
High Light:

Double Layer Corrugated Tube Extrusion Machine

,

Medical Corrugated Tube Extrusion Machine

,

Single Wall Corrugated Tube Extrusion Machine

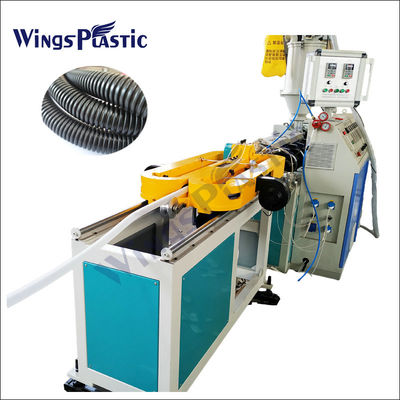

This series 12-50mm High Speed Plastic PE Single Wall Corrugated Pipe Making Extruder Extrusion Manufacturing Machine can be used to produce corrugated pipes of PVC, PE, PP, EVA continuously, as well as PA corrugated pipes. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
The single wall corrugated pipe are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.



Extruder:
Our extruder uses a PLC control system, which can intuitively see the operating parameters of each part and operate the machine better.
Using high quality screw, uniform heating and plasticizing.

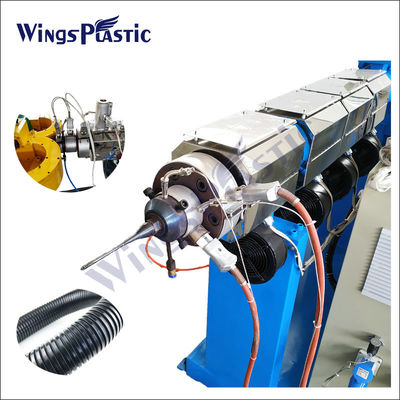

Die head:
Die and mandrel design are together, not separate.
When changing the size, we only need to change the whole, and there is no need to clean the waste inside.

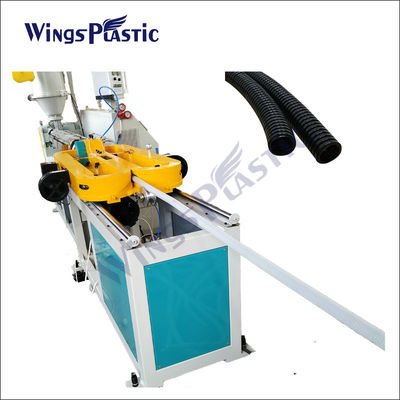

Forming machine:
High speed forming machine with large water cooling plate,make the pipes cool faster and form more beautiful shapes.
the mould with double chamber design, when change size just up and down move forming machine. No need to unmount and reinstall. So will save more than two hours.



Double station winder:
Automatically adjust the speed for uniform winding, pneumatic unwinding.



12-50mm High Speed Plastic PE Single Wall Corrugated Pipe Making Extruder Extrusion Manufacturing Machine developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used in wires conduit pipe.
