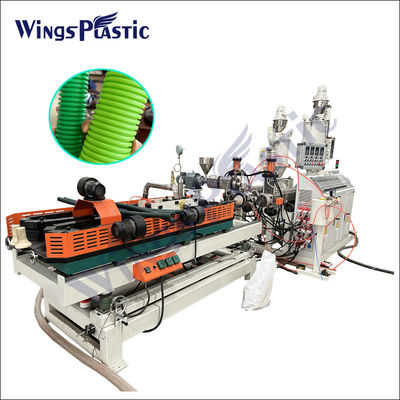

110mm HDPE PE Pipe Double Wall Corrugated Tube Extrusion Line Pipe Making Production Line

110mm HDPE PE Pipe Double Wall Corrugated Tube Extrusion Line Pipe Making Production Line
110mm HDPE PE Pipe Double Wall Corrugated Tube Extrusion Line Pipe Making Production Line 110mm HDPE PE Pipe Double Wall Corrugated Tube Extrusion Line Pipe Making Production Line 110mm HDPE PE Pipe Double Wall Corrugated Tube Extrusion Line Pipe Making Production Line 110mm HDPE PE Pipe Double Wall Corrugated Tube Extrusion Line Pipe Making Production Line

Large Image :  110mm HDPE PE Pipe Double Wall Corrugated Tube Extrusion Line Pipe Making Production Line

Product Details:
Place of Origin: CHINA
Brand Name: WINGS
Certification: CE ISO
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000-30000 per set
Packaging Details: wooden case, container
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month

110mm HDPE PE Pipe Double Wall Corrugated Tube Extrusion Line Pipe Making Production Line

Description
Condition: New Screw Material: 38CrMoAlA
Screw L/D Ratio: 33:1 Screw Design: Single-screw
Inverter: Delta Brand Contactor: Siemens Contactor
Output: 200 - 250 Kg/h Raw Material: PP PE Pvc Hdpe
Core Components: Bearing, PLC Final Product: High Speed Single Wall Corrugated Pipe
High Light:

Double Wall Corrugated Tube Extrusion Line

,

PE Corrugated Tube Extrusion Line

,

110mm HDPE Tube Extrusion Line

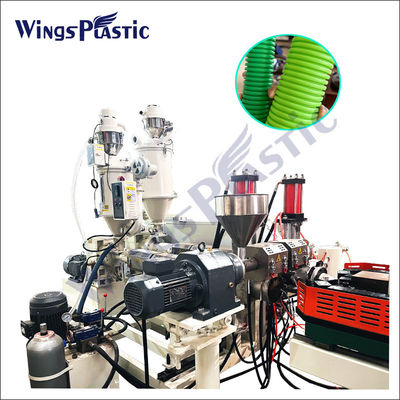

Automatic dryer and loader
Loading: Vacuum suction
Drying: Auto. hot air blowing

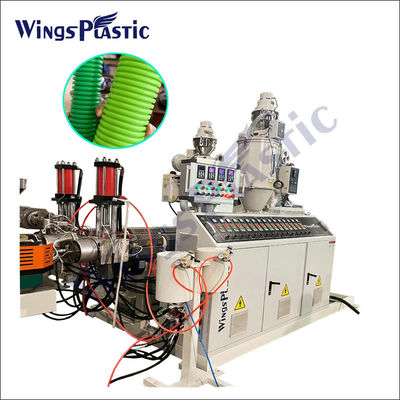

High efficiency single screw extruder
Material: HDPE or PP
Heat treatment: bimetallic
Heating type: Ceramic heating rings
PLC:B&R
Contactor: Schneider
Relay:APT
Air switch: Schneider

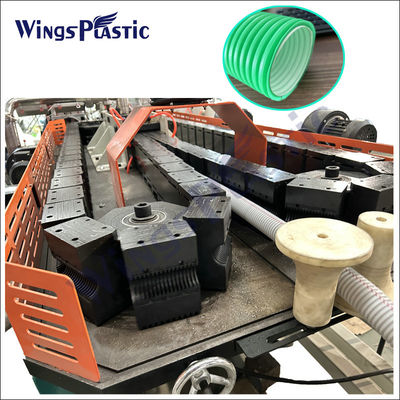

Forming machine:
1. Aluminium-alloy calibrator, surface is wear-resistance.
2. Corrugated shape is specially designed and calculated software, which has better ring-stiffness.
3. The sliding base of forming machine is geared and equipped with large size needle roller bearing,which improves the bearing capacity of sliding base.More stable operation,longer life.
4. Production line has fixed center height, no need to adjust again when changing model
5. Modules can be widely used in different lines, easy to install and disassemble.
6. Unique internal modules cooling design, enables the cooling water to flow rapidly
7. Using advanced PLC and color LCD control system; stable and reliable production,high degree automation



Stacker
Structure: steel framed
Length: 6m
With meter weighing syetem, monitoring pipe quality in time



High-speed double position winder
The equipment is independent research and development,which can automatically wind PPR, PE-RT or PE pipes. With the perfect combination of advanced mechanical structure and high precision PLC automatic control system. During the production process, it can ensure the uniform and orderly arrangement of pipe and run smoothly, speed free control, and it can be easily operated by a single person with a high degree of automation.
