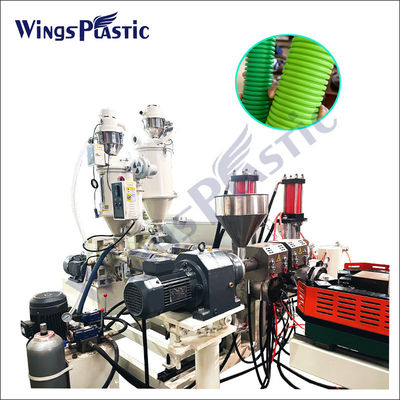

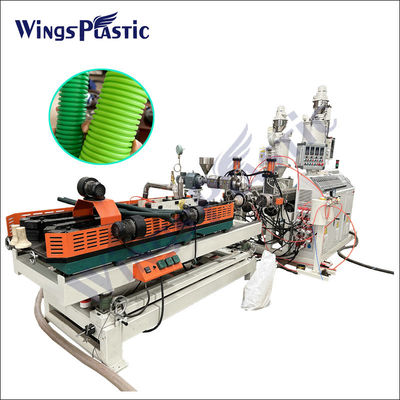

High Speed PE HDPE Pipe Production Line Double Wall Corrugated Pipe Extruder Machine

Double wall corrugated pipe machine

The molds adopt the double flow channel structure and nitriding polishing processed die head. This makes the adjustment of partial wall convenient and fast and ensures the thickness of the inner and outer wall uniform and stable.
The latest design of closed pressure water cooling structure, full cooling, multi-point distribution vacuum system, higher
efficiency, faster production speed.
Online double wall belling function and automatic lubrication system

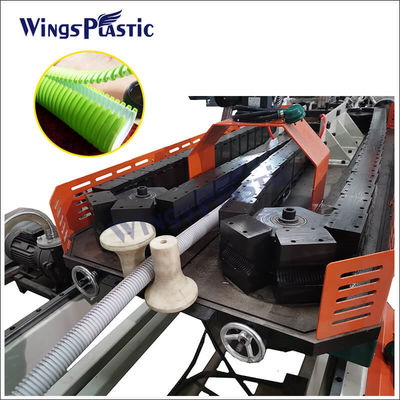

The advanced shuttle structure and reasonable track design make the module run more smoothly and the forming section longer, which is conducive to rapid production. lower energy consumption and cost saving.
It’s simple and fast to replace the mold, saving time and cost
Online EPS uninterruptible power supply ensures the automatic return of the forming worktable in case of sudden power failure, so that the mould block can be separated from the water sleeve in time.
Siemens professional PLC programming control cutting machine, double knife cutting, simple and sensitive operation, accurate, stable and reliable.
Human machine interface, extrusion synchronous control system, with remote communication function and realize remote fault diagnosis and trouble shooting
This line is widely used in municipal engineering, underground sewage pipe of residential area, sewage discharge and other fields.

Suitable Pipe Diameter	Model Extruder	Output	Motor Power	Production Speed
40-110mm	SJ 65/33 and SJ 50/30	180kg/h	30kw and 15kw	1-6m/min
75-200mm	SJ 75/33 and SJ 65/33	400-450kg/h	75kw and 45kw	1-8m/min
