Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 250kg/h Or Customized | Band Width: | 6-20mm Or Customized |
| Suitable Materials: | Pet Materials | Speed: | 1-5m/min |
| Screw: | Single Screw | HS Code: | 84772090 |
| Origin: | Qingdao China | After-sales Service: | 1 Year |
| Highlight: | Pet Packing Belt Production Line,Pet Package Strap Band Extrusion Line,Plastic Pet Strap Making Plant |
||

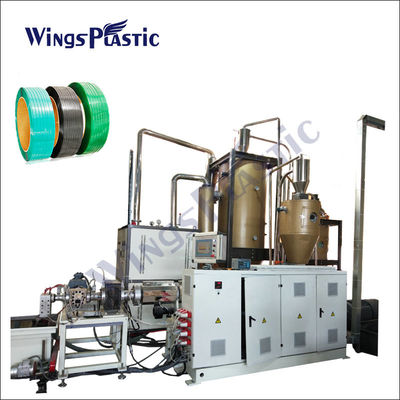

Pet Packing Belt Production Line/ Pet Package Strap Band Extrusion Line/ Plastic Pet Strap Making Plant
The PET Strap Packing Band Tape Extrusion Making Machine is an essential tool for businesses looking to produce high-quality, durable, and eco-friendly packing straps. With its advanced features, customizable options, and energy-efficient design, this machine is a valuable investment for industries requiring reliable and cost-effective packaging solutions. Whether you are in logistics, manufacturing, or construction, this machine offers the perfect blend of performance and sustainability.
High Efficiency and Automation:
The machine is fully automated, ensuring consistent production with minimal manual intervention.
It can produce up to 100-500 kg/hour of packing straps, depending on the model and configuration.
Customizable Strap Dimensions:
The machine allows for the production of straps in various widths (9-15 mm) and thicknesses (0.5-1.2 mm), catering to different packaging needs.
Eco-Friendly Production:
The machine can process both virgin PET resin and recycled PET materials, making it an environmentally sustainable option for businesses aiming to reduce their carbon footprint.
Durable and High-Strength Straps:
The produced straps exhibit excellent tensile strength and durability, making them suitable for heavy-duty applications such as securing large cargo or bundling construction materials.
User-Friendly Operation:
Equipped with a PLC (Programmable Logic Controller) and touchscreen interface, the machine offers easy operation and real-time monitoring of production parameters.
Production Flow:
Materials feeding -- Pre-crystallization -- Drying -- Feeding -- Extruder melt -- Filter -- Melt metering pumb -- Extrusion die -- Hot water tank --Five Pulling rollers -- Stretching Oven -- Stretching rollers -- Embossing --Annealing treatment oven and water tank -- Three Pulling Rollers -- Winders -- Packing
| Name | Strap Cavities | Motor | Screw Diameter | Screw L:D | Output | Screw Speed |
| SJ90/33 | 1-2 Cavities | 75kw | 90mm | 33:1 | 150-250kg/h | 72RPM |
| SJ100/33 | 1-3 Cavities | 90kw | 100mm | 33:1 | 250-300kg/h | 72RPM |
| SJ120/33 | 2-4 Cavities | 110kw | 120mm | 33:1 | 300-400kg/h | 72RPM |
