Product Details:
|
| Plastic Processed: | PVC | Screw Design: | Single-screw |
|---|---|---|---|
| Screw Material: | 38CrMoAlA | Screw L/D Ratio: | 33:1 |
| Screw Speed (rpm): | 90 Rpm | Voltage: | Customized |
| Inverter: | Delta Brand | Contactor: | Siemens Contactor |
| Highlight: | High Speed Plastic Pipe Extruder Machine,Pvc Manufacturer Pipe Extruder Machine,Customized Voltage Pvc Pipe Extruder Machine |
||
Process flow:
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould → vacuum calibration machine → haul off machine →cutting machine → stacker or automatic belling machine
Machine List:

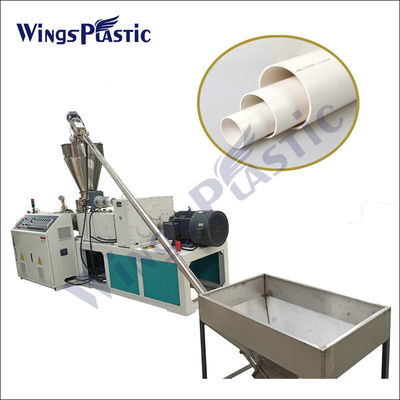

1.Conical twin screw extruder

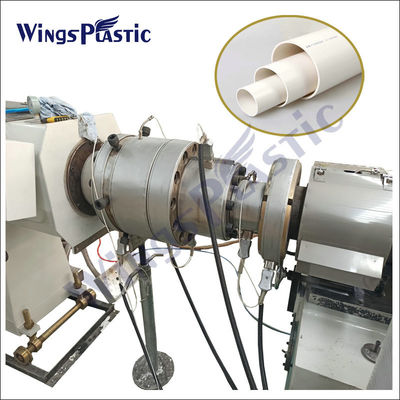

2.Die head. Due to the diameter, it can be single, double and four die head

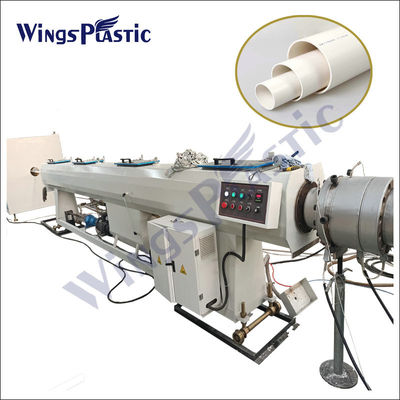

3.Vacuum tank: due to diameter, it can be designing of single, double vacuum chambers
4.Haul-offs: due to diameter, it can be designing of double, three, four, six, eight caterpillars
5.Cutter: due to diameter, it can be designing of saw cutter or planetary cutter
6.Stacker or automatic belling machine
