80kg/H Corrugated Plastic Pipe Machine EVA LLDPE Spiral Plastic Tube Making Machine

Proffesional EVA LLDPE Spiral Corrugated Tube Pipe Hose Extruder Machinery Good Price

The machine could produce eva vacuum cleaner hose,also swimming pool spiral hose machine

EVA LLDPE Pipe Instruction :

 EVA LLDPE spiral corrugated pipe is made by mixed EVA and LLDPE materials,  with good flexibility, shockproof, anti-skid and strong pressure resistance,chemical corrosion resistance, as well as inclusiveness and cross-linkability that other materials do not have.

 It is mainly used in Ventilation,suction,dust collection collection equipment,blowing equipment,dust collector,dust catcher,furniture duster,breathing hose,medical facility,factory exhaust,induced draft,dust conveying,oil transmisson,conveying wood chips,particles,agriculture irrigation,air-conditioning ventilation

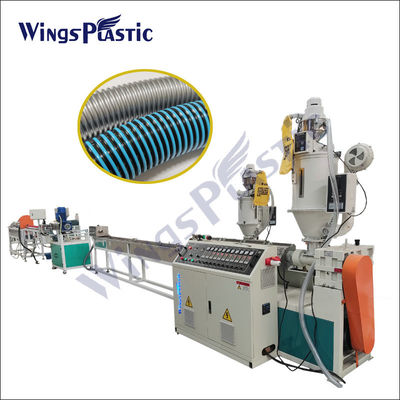

The eva vacuum cleaner hose extrusion line Production Flow:

Vacuum Feeder--Extruder melt--Extrusion moulds--Water tank--Dewatering fan--Forming unit with Glue extrusion--Transport rollers--Automatic cutter--Stacking Unit

The machinery instruction:

1.High speed
 Max speed will be 6 meters per minute, this is same as Italy same machine. But our price only 1/20 of Italy machine.
2.easy operation
 Machine control by PLC , all the procedure can achieve by input program. Even for common worker, they can operate on the machine easily.

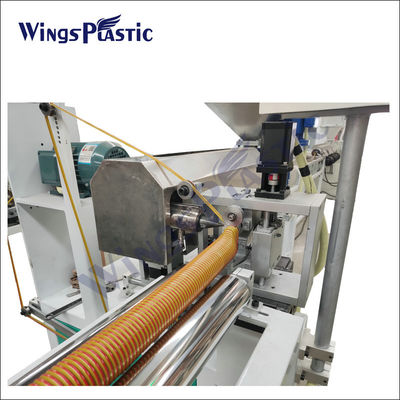

3.servo motor cutting.
 Cylinder control cutting the knife working stroke need 0.2 second. But servo motor only need 0.02 second. Servo motor drive can cut the hose section very smoothly and tidy . we covered the cutting units to confirm the CE standard. When the line's speed exceed 4 meters per minute, common drive cutter can not match the hose spiral speed, so must use servo motor cutting.
4.stable working.

 All the electric parts are made from famous brand in the world, like button and switch Schneider or CHNT, contactor Siemens, Inverter Delta, temperature controller is Omron, PLC brand is Siemens.

 Welcome to contact us by email or whatsapp for more details. :)

The eva vacuum cleaner hose extrusion line equipment list:
