Product Details:
|
Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
---|---|---|---|
Capacity: | 150-220kg/h Or Customized | Pipe Diameters: | 20-110mm Or Customized |
Suitable Materials: | HDPE PPR LDPE LLDPE | ||
Highlight: | High Speed Plastic Tube Extruder Machine,Plastic Tube Extruder Machine High Output,HDPE Pe Pipe Extrusion Line |

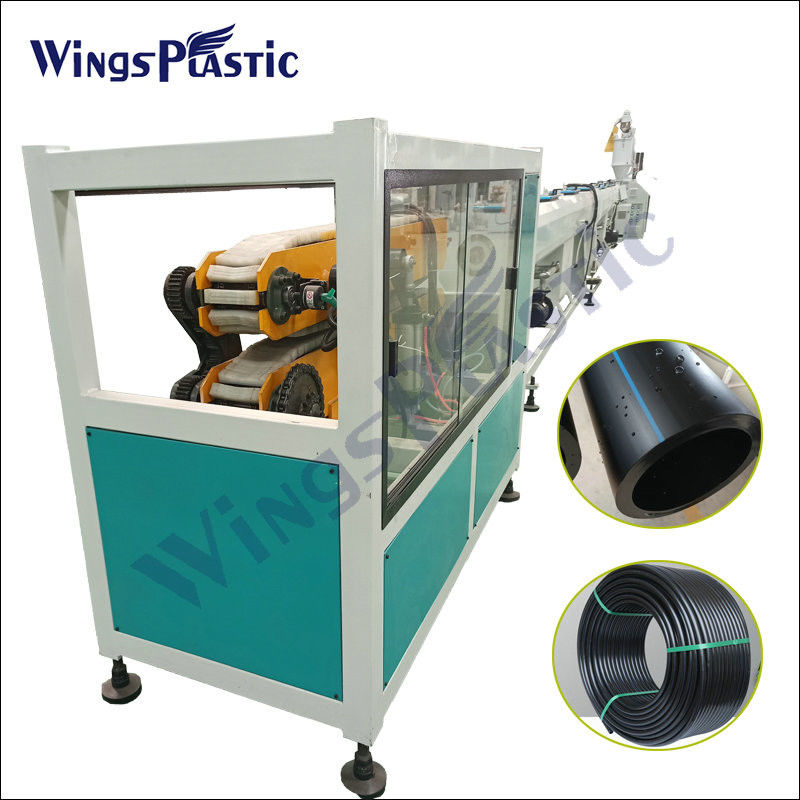

High Speed High Output Plastic HDPE Pipe Extruder Machinery Factory
PE is polyethylene (abbreviation for polyethylene of raised temperature resistance). Generally, PE pipe water supply pipes are used at temperatures lower than 40 ℃, and cannot be used for hot water transmission pipes. PE pipe is a kind of thermoplastic resin with high crystallinity and non-polarity. The appearance of the original HDPE is milky white, and it is translucent to a certain extent in the thin section. PE has excellent resistance to most domestic and industrial chemicals.
HDPE Pipe Production Line Instruction:

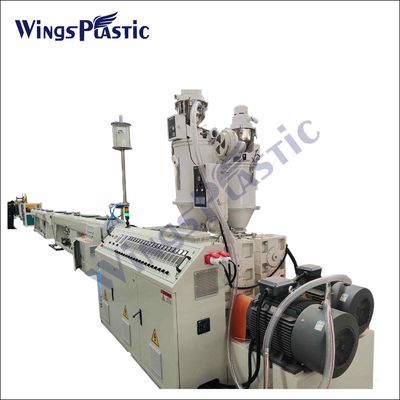

1. The PE pipe production line selects the high-efficiency extruder for special HDPE and PE pipes, the screw adopts the structure with barrier and mixing head, and the barrel adopts the new slotted barrel, which has good plasticizing and mixing effects, large and very stable extrusion volume·

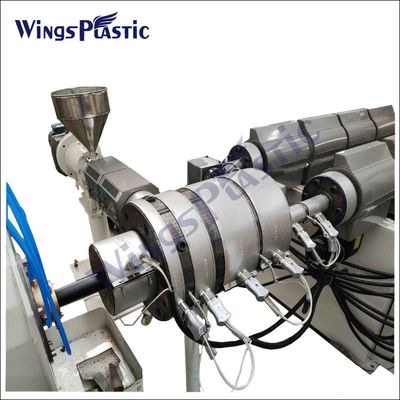

2. PE pipe production line is a spiral die designed for HDPE and PE large-diameter thick-wall pipes. The die has the characteristics of low melt temperature, good mixing performance, low cavity pressure and stable production
3. The PE pipe production line adopts proprietary sizing and cooling system, water film lubrication and water ring cooling to meet the requirements of HDPE and PE materials and ensure the stability of diameter and roundness in high-speed production of thick wall pipes

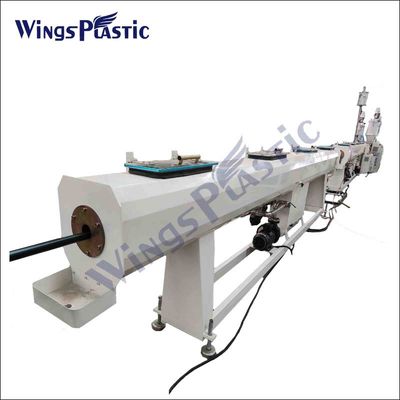

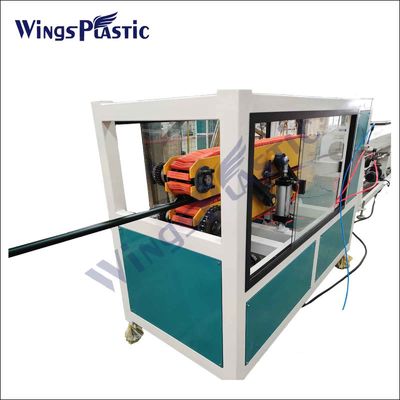

4. The PE pipe production line adopts a specially designed vacuum sizing box with multi-section control of vacuum degree to ensure the dimensional stability and roundness of HDPE and PE pipes. The extruder and tractor are controlled by imported famous speed regulator, with good stability, high precision and high reliability
5. The operation and time of PE pipe production line are programmed by PLC, with good human-machine interface. All process parameters can be set and displayed through touch screen. The special extruder for marking line can be assembled to produce pipes with color marking line that meet the requirements of national standards
Pipe range | 16-63mm | 20-110mm | 75-160mm | 90-250mm | 110-315mm | 160-450mm | 315-630mm | 500-800mm |
Extruder | ¢45mm | ¢60mm | ¢75mm | ¢75mm | ¢90mm | ¢90mm | ¢120mm | ¢150mm |
Extruder power | AC30kw | DC75kw | DC110kw | DC110kw | DC160kw | DC160kw | DC280kw | DC335kw |
Extrusion capacity | 60-100kg | 100-150kg | 250-300kg | 250-300kg | 350-400kg | 350-400kg | 650-700kg | 850-900kg |
Max. production speed | 10m/min | 6m/min | 6m/min | 6m/min | 3 m/min | 1.2m/min | 0.9m/min | 0.7m/min |
