Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 150-220kg/h Or Customized | Pipe Diameters: | 20-110mm Or Customized |
| Suitable Materials: | HDPE PPR LDPE LLDPE | ||
| Highlight: | PE Pipe Making Machine LDPE,PPR PE Pipe Making Machine,LDPE Corrugated Hose Making Machine |
||

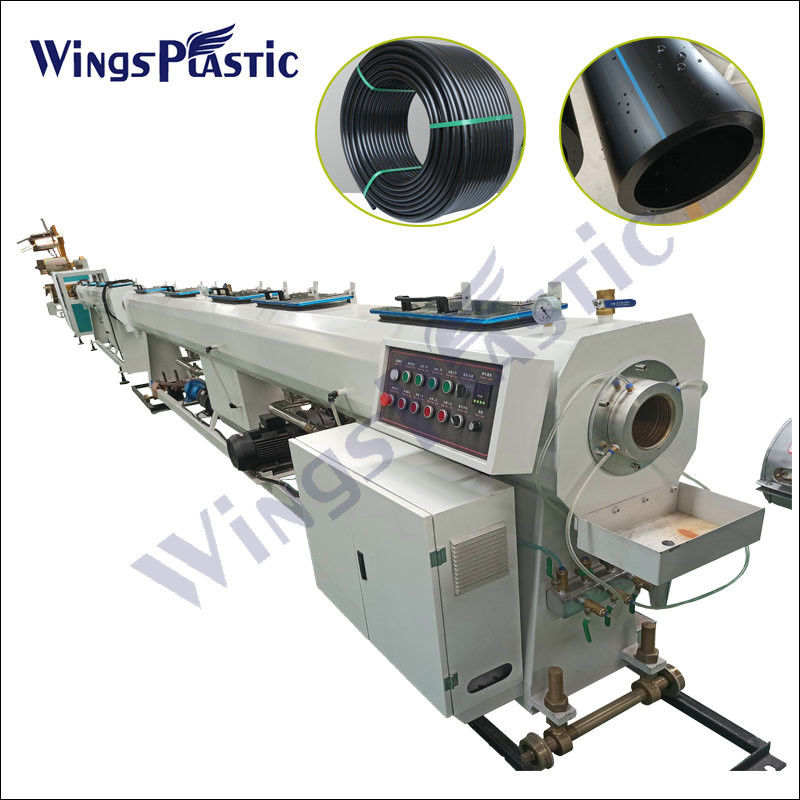

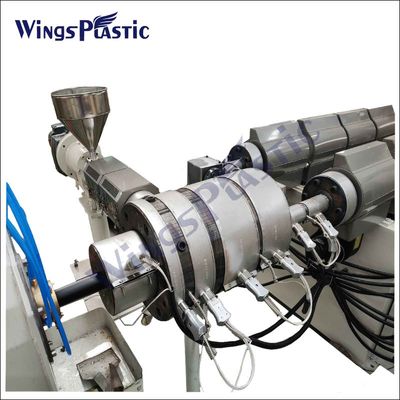

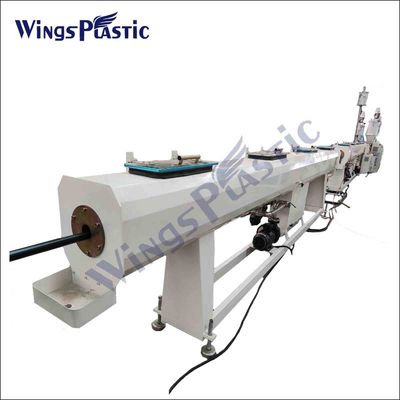

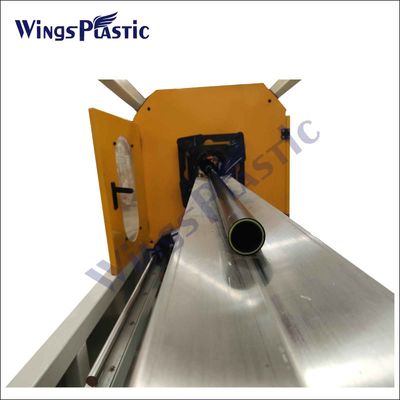

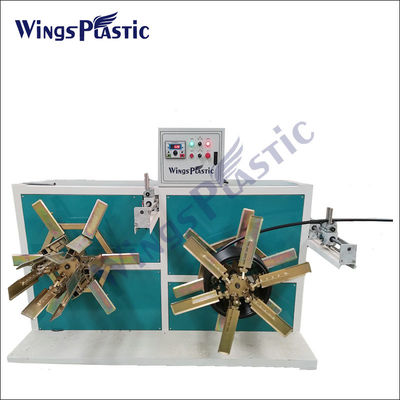

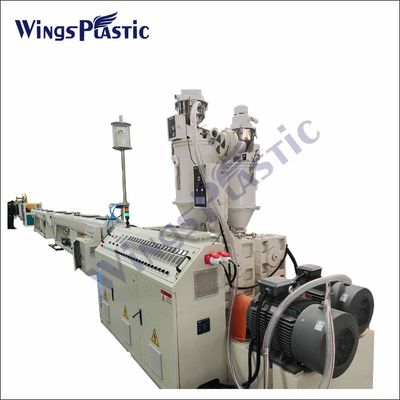

HDPE PE Pipe Production Line / Making Machiner / Extruder Machine
This line is used to produce different type of PE / PP pipe ,the diameter of pipe can be produced between 16mm-1200mm.The whole line can be controlled automatically .
| model | screw diameter | L/D | driving power | output |
| SJ-45/30 | 45 mm | 30:1 | 22/30kw | 60/80kg/h |
| SJ-65/33 | 65 mm | 33:1 | 45/75/90kw | 150/210/250kg/h |
| SJ-75/33 | 75 mm | 33:1 | 110/132kw | 350/450kg/h |
| SJ-90/33 | 90 mm | 33:1 | 185/220kw | 550/700kg/h |
| SJ-105/33 | 105 mm | 33:1 | 220/285kw | 650/800kg/h |
| SJ-120/33 | 120 mm | 33:1 | 315kw | 950kg/h |
| SJ-150/33 | 150 mm | 33:1 | 450kw | 1350kg/h |
This production line can also produce mono-color pipe with one extruder and multi-color pipe with co-extrusion
die head and more extruders.
plastic tube making machine / pe tube making machine/tube production line
Plastic PE PVC PP HDPE computer cable management tube production line making machine
machine for PP PE PVC plastic extending stretch hose pipe tube making machine production line extrusion extrude
plastic PE tubes making production machine line
