Product Details:
|
Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
---|---|---|---|
Capacity: | 150-220kg/h Or Customized | Pipe Diameters: | 20-110mm Or Customized |
Suitable Materials: | HDPE PPR LDPE LLDPE | ||
Highlight: | Gas Supply Pvc Pipe Extruder Machine,Pvc Pipe Extruder Machine HDPE,HDPE Plastic Water Pipe Making Machine |
HDPE Water Supply And Gas Supply Pipe Extrusion Line
PE series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc.

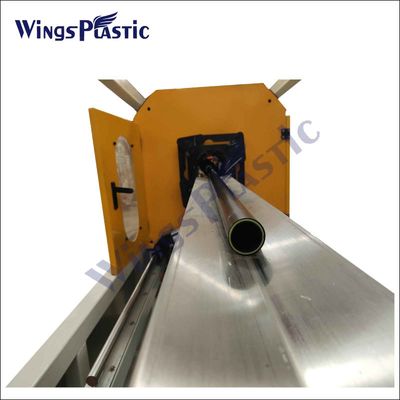

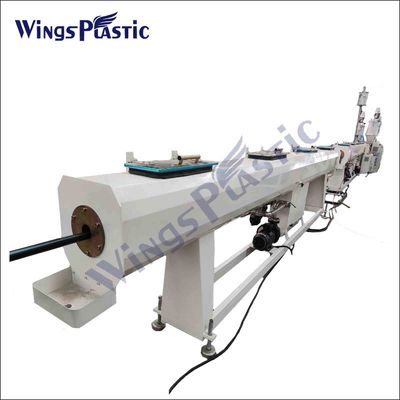

This line consists mainly of vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc.

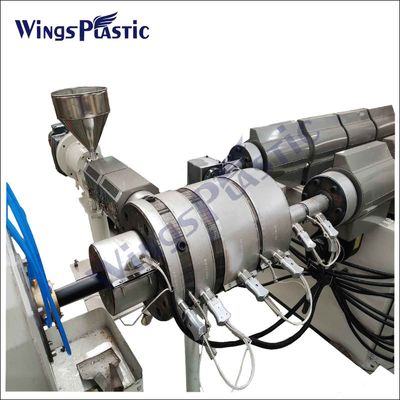

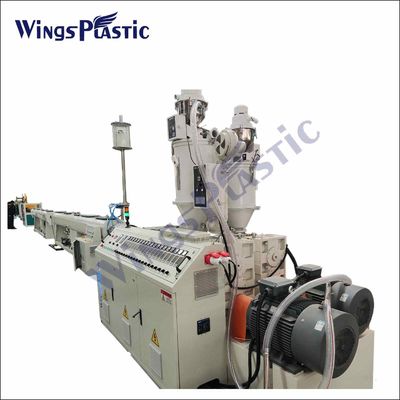

single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products. The haul-off unit includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, ten-claw type, twelve-claw type, etc. Scraps free cutting, saw cutting or planetary cutting can be applied, the property of machine group is reliable, the production efficiency is high.
It can also produce PP, PE, ABS, PPR, PEX, silicon core pipe and pipe material of other material. The planetary cutting machine is fully automatic computer digital control, it has such advantages of simple operation, reliable property, etc.
model | screw diameter | L/D | driving power | output |
SJ-45/30 | 45 mm | 30:1 | 22/30kw | 60/80kg/h |
SJ-65/33 | 65 mm | 33:1 | 45/75/90kw | 150/210/250kg/h |
SJ-75/33 | 75 mm | 33:1 | 110/132kw | 350/450kg/h |
SJ-90/33 | 90 mm | 33:1 | 185/220kw | 550/700kg/h |
SJ-105/33 | 105 mm | 33:1 | 220/285kw | 650/800kg/h |
SJ-120/33 | 120 mm | 33:1 | 315kw | 950kg/h |
SJ-150/33 | 150 mm | 33:1 | 450kw | 1350kg/h |
