Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 150-220kg/h Or Customized | Pipe Diameters: | 20-110mm Or Customized |
| Suitable Materials: | HDPE PPR LDPE LLDPE | ||
| Highlight: | Drain Pipe HDPE Pipe Extruder Machine,HDPE Pipe Extruder Machine LLDPE,LLDPE Pvc Pipe Production Machine |
||
HDPE Pipe Production Line / Pipe Extruder On Sale
Application:
This line is mainly used to produce HDPE pipe for water/gas supply, and sewage and drain pipe, also undergroud pipes
Features:

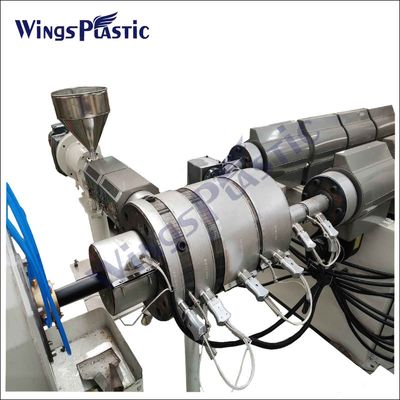

Single screw extruders, and specially designed gas vent screw adopted

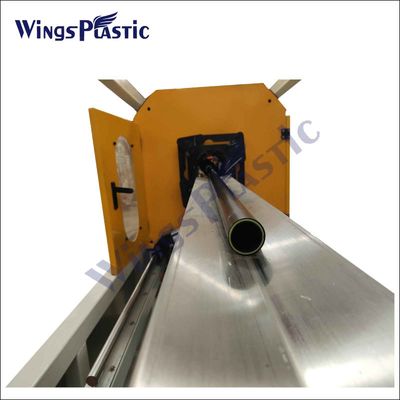

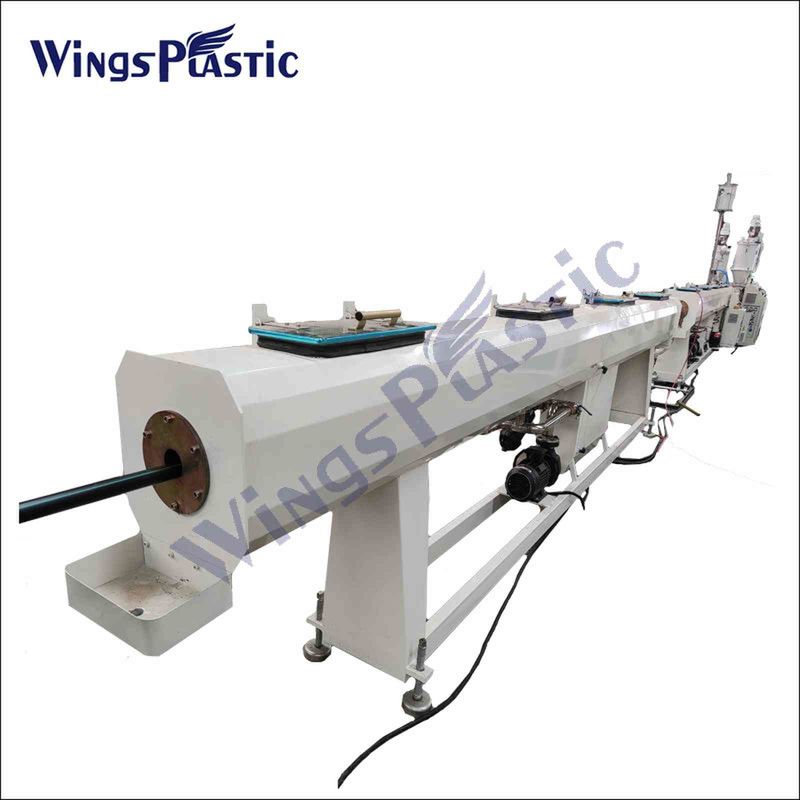

Vacuum calibrators
And dust free cutter

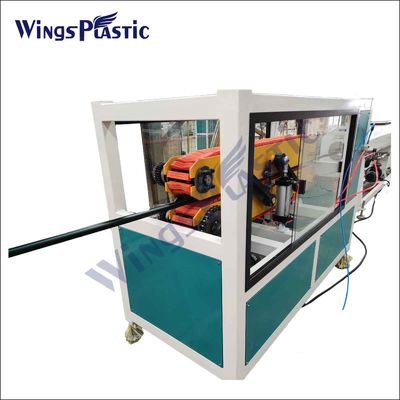

Stable haul-off machines
Configurations:
Loader-extruder-moulds- color extruder-calibrator-cooling tank-haul-off- cutting machine-stackers and also printers for your option
Description:

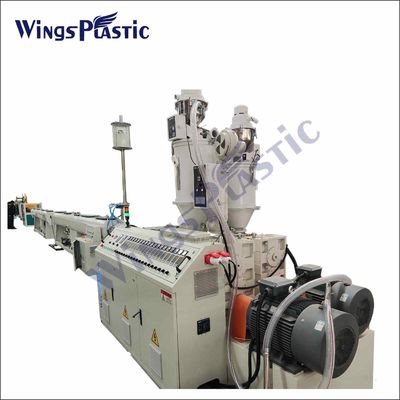

Our Single screw extruder is very suitable to process PE resin with high capacity, max capacity can reach 1000kg/h
The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.
Diameter range is 16mm-800mm, which can be changed into inch standard to meet special requirement.
HDPE pipe production line Characteristic:
| Pipe range | 16-63mm | 20-110mm | 75-160mm | 90-250mm | 110-315mm | 160-450mm | 315-630mm | 500-800mm |
| Extruder | ¢45mm | ¢60mm | ¢75mm | ¢75mm | ¢90mm | ¢90mm | ¢120mm | ¢150mm |
| Extruder power | AC30kw | DC75kw | DC110kw | DC110kw | DC160kw | DC160kw | DC280kw | DC335kw |
| Extrusion capacity | 60-100kg | 100-150kg | 250-300kg | 250-300kg | 350-400kg | 350-400kg | 650-700kg | 850-900kg |
| Max. production speed | 10m/min | 6m/min | 6m/min | 6m/min | 3 m/min | 1.2m/min | 0.9m/min | 0.7m/min |
Welcome to receive your inquiry for more information about HDPE pipe production line / Pipe Extruder machine on sale!
